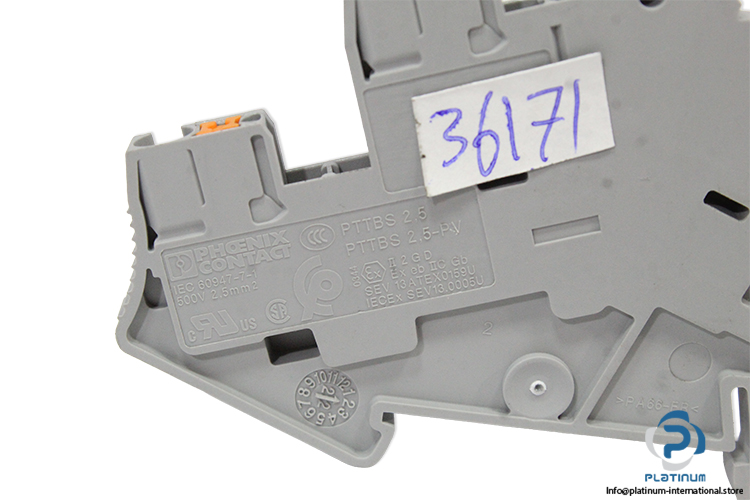

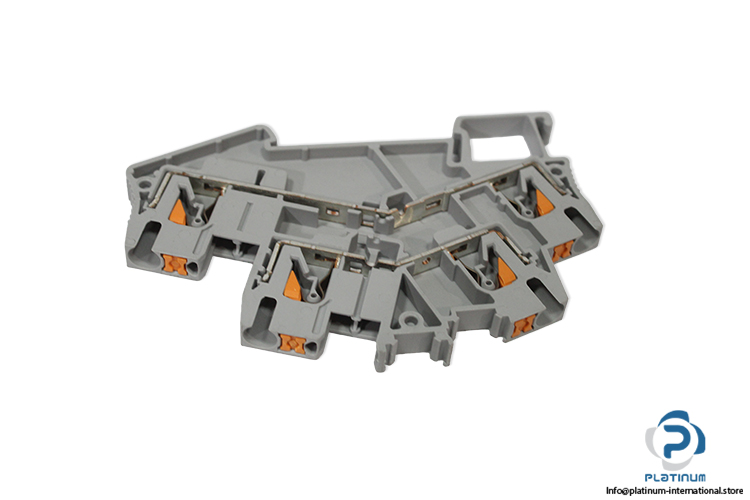

Phoenix Contact Pttbs 2,5 Double-Level Terminal Block

In stock2 unitsReady to ship

Double-Level Terminal Block

PHOENIX CONTACT PTTBS 2,5 push-in double-level terminal block with 4 connections, 500 V rating, 22 A nominal current, and compact 5.2 mm width for DIN rail mounting.

Manufacturer
PHOENIX CONTACT
SKU
1095714
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
MRNPTTBS 2,5-PV
Code3209604
Product FamilyPTS
Number Of Connections4
Number Of Rows2
Potentials2
Number Of Connections Per Level2
Overvoltage CategoryIII
Rated Surge Voltage6 kV
Maximum Power Dissipation (Nominal Condition)0.77 W
Nominal Cross Section; 2.5 mm² Nominal Current22 A
Maximum Load Current24 A (With 4 mm² Conductor Cross-Section, Rigid)
Nominal Voltage500 V
Connection MethodPush-In Connection
Stripping Length8 mm ... 10 mm
Internal Cylindrical GageA3
Connection In Accordance With StandardIEC 60947-7-1
Conductor Cross-Section Rigid0.14 mm² ... 4 mm²
Conductor Cross-Section Flexible0.14 mm² ... 4 mm²
Conductor Cross-Section Flexible(Ferrule Without Plastic Sleeve) 0.14 mm² ... 2.5 mm²
Cross Section AWG26 ... 12 (Converted According To IEC)
Conductor Cross-Section Flexible [AWG]26 ... 12 (Converted According To IEC)
IdentificationII 2 GD Ex eb IIC Gb
Width5.2 mm
End Cover Width2.2 mm
Height78 mm
Depth On NS 35/7,555 mm
Depth On NS 35/1562.5 mm
Flammability Rating According To UL 94V0
Insulating Material GroupI
Insulating MaterialPA
Ambient Temperature (Operation)-60 °C ... 110 °C
Mounting TypeNS 35/7,5, NS 35/15
ConditionNew
Stock KeyJO-004
