Phoenix Contact SAC-17P-10,0-35T/FS SH SCO Sensor/Actuator Cable
New
In stock15 unitsReady to ship
Sensor/Actuator Cable

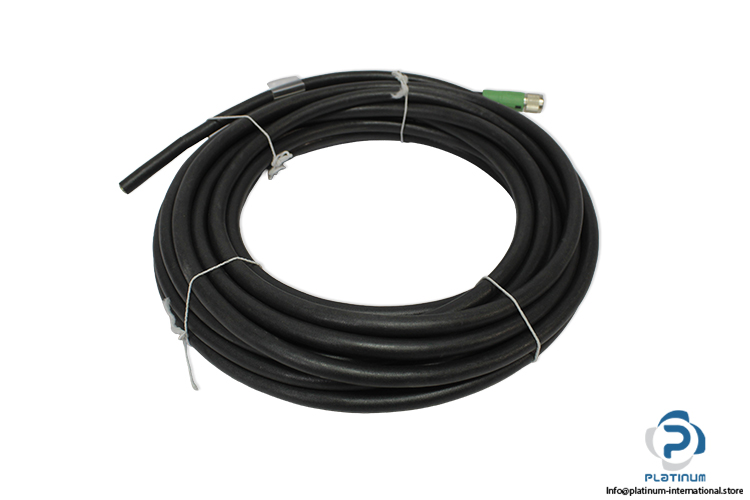

PHOENIX CONTACT SAC-17P-10,0-35T/FS SH SCO 17-position shielded sensor/actuator cable, 10 m length, M12 SPEEDCON socket with secure locking and industrial-grade materials.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
PHOENIX CONTACT SAC-17P-10,0-35T/FS SH SCO Sensor/Actuator Cable
The PHOENIX CONTACT SAC-17P-10,0-35T/FS SH SCO is a high-quality sensor/actuator cable designed for reliable signal and power transmission in industrial automation systems. With 17 positions and SPEEDCON locking technology, it ensures secure and stable connectivity in demanding environments.
Manufacturer: PHOENIX CONTACT
Type: Sensor/Actuator Cable
Model: SAC-17P-10,0-35T/FS SH SCO

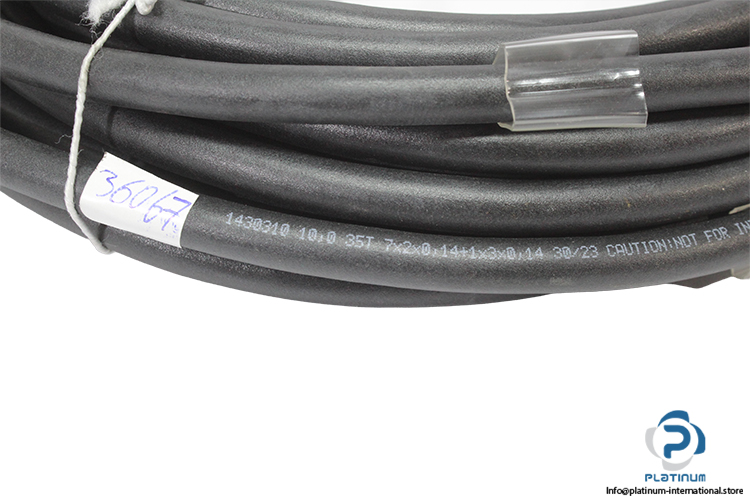

Order No.: 1430310
Cable Information:
Mechanical & Material Data:
Bending Radius:
| Cable Length | 10 m |
| Connector 1 | 17-Pins (Free Cable End) |

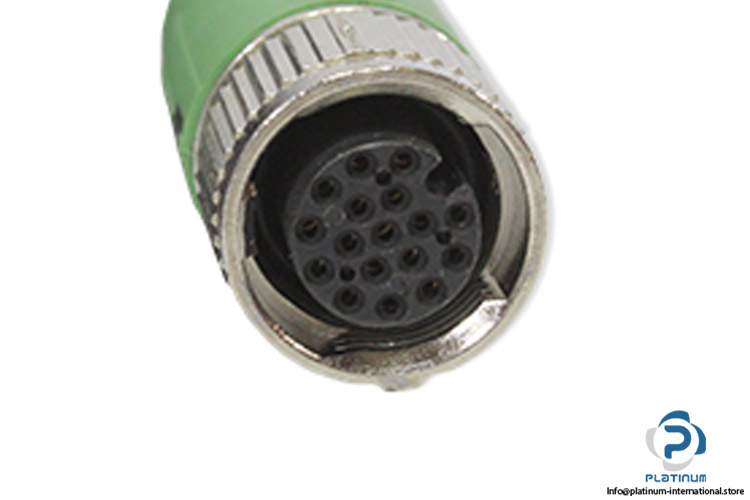

| Connector 2 | Socket Straight M12 SPEEDCON |
| Number Of Positions | 17 |
| Number Of Cable Outlets | 1 |
| Locking Type | SPEEDCON |
| Coding | A |
| Shielded | Yes |
| Application Standard | Industrial |

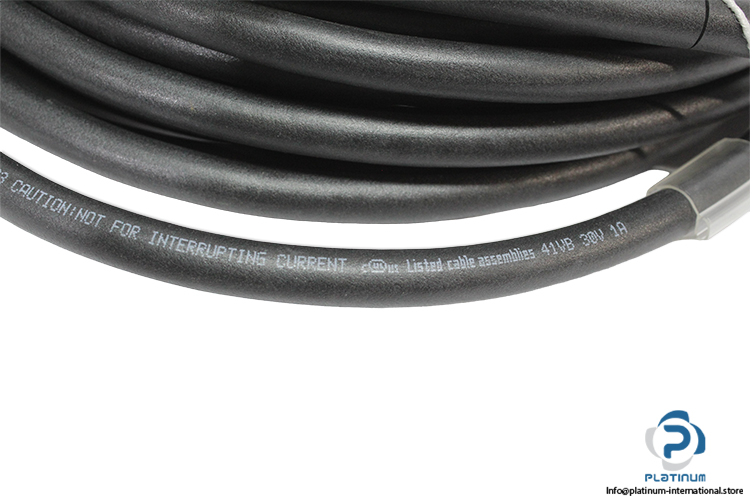

| Cable Rating | 41 VB, 30 V, 1 A |
| Nominal Voltage (UN) | 30 V DC, 30 V AC |
| Nominal Voltage (Cable) | 42 V AC |
| Nominal Current (IN) | 1.5 A |
| Test Voltage | 1500 V AC |
| Insulation Resistance | ‰¥ 100 MΩ |
| Overvoltage Category | II |
| Degree Of Pollution | 3 |
| Flammability Rating (UL 94) | V0 |
| Seal Material | NBR |
| Material Of Grip Body | TPU, Hardly Inflammable, Self-Extinguishing |
| Contact Material | CuZn |
| Conductor Material | Tin-Plated Cu Litz Wires |
| Wire Insulation Material | PVC |
| Tightening Torque | 0.4 Nm (M12 Connector) |
| Minimum Bending Radius (Fixed Installation) | 5 x D |
| Minimum Bending Radius (Flexible Installation) | 10 x D |
| Smallest Bending Radius (Fixed Installation) | 46 mm |
| Smallest Bending Radius (Movable Installation) | 92 mm |
