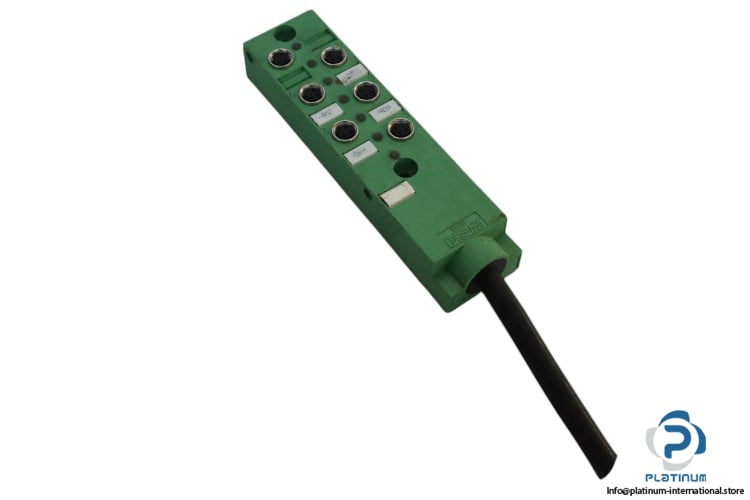

Phoenix Contact SACB-6/3-L-10,0PUR-M8 Sensor/Actuator BOX

Phoenix Contact SACB-6/3-L-10,0PUR-M8 Sensor/Actuator Box

The Phoenix Contact SACB-6/3-L-10,0PUR-M8 Sensor/Actuator Box is a reliable and robust solution for integrating sensors and actuators in industrial automation systems. With its 6-slot design and 10-meter cable, it ensures reliable signal transmission and flexible integration into control systems.

• Manufacturer: Phoenix Contact
• Type: Sensor/Actuator Box

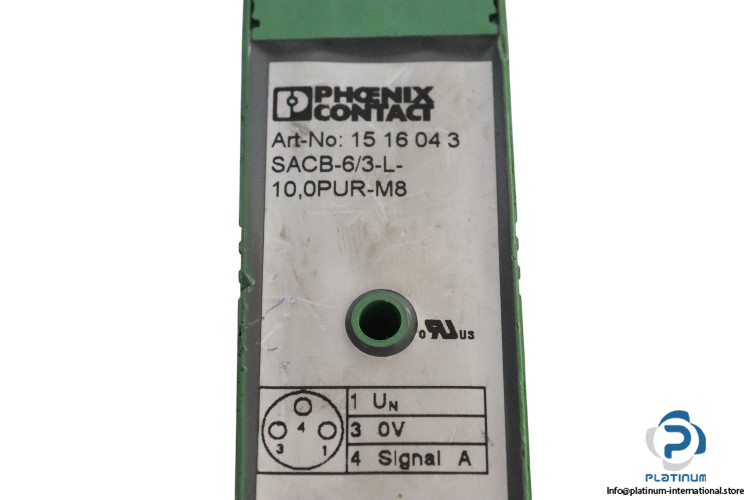

• Model: SACB-6/3-L-10,0PUR-M8
• Part No.: 1516043

Technical Specifications:

• Rated Voltage: 24 V DC
• Max. Operating Voltage Umax: 30 V DC
• Current Carrying Capacity per I/O Signal: 2 A
• Current Carrying Capacity per Slot: 2 A
• Sensor/Actuator Connection System: M8 socket
• Type of Connection: Fixed connection
• Length of Cable: 10 m
• Cable Type: PUR/PVC black
• Number of Positions: 3
• Number of Slots: 6
• AWG Signal Line: 22
• Tightening Torque: 0.2 Nm
• Housing Material: PBT
• Degree of Protection: IP65/IP67
• Ambient Temperature (Operation): -30 to 80 °C
• Dimensions: 102 x 20 x 30 mm

With its durable design and high protection rating (IP65/IP67), the Phoenix Contact SACB-6/3-L-10,0PUR-M8 Sensor/Actuator Box provides secure and reliable performance in challenging industrial environments, ensuring efficient data transfer for automation applications.
