Phoenix Contact SACB-8/3-L-M16-M8 Sensor/Actuator BOX

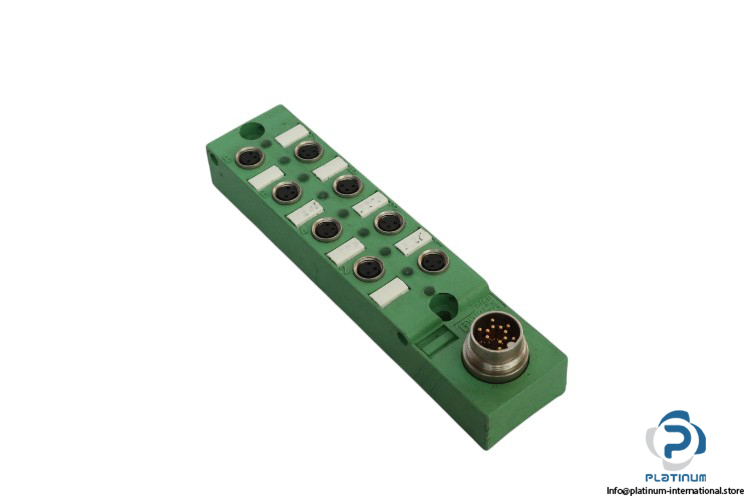

Phoenix Contact SACB-8/3-L-M16-M8 Sensor/Actuator Box

The Phoenix Contact SACB-8/3-L-M16-M8 Sensor/Actuator Box is a high-performance industrial solution for seamless integration of sensors and actuators in automated systems. With 8 slots and 3 positions, it offers reliable power distribution and efficient signal management for a wide range of automation applications.

• Manufacturer: Phoenix Contact
• Type: Sensor/Actuator Box
• Model: SACB-8/3-L-M16-M8
• Part No.: 1516205

Technical Specifications:

• Rated Voltage: 24 V DC
• Max. Operating Voltage Umax: 30 V DC
• Current Carrying Capacity per I/O Signal: 2 A
• Current Carrying Capacity per Slot: 2 A
• Sensor/Actuator Connection System: M8 socket
• Type of Connection: M16 plug connection
• Length of Cable: 5 m
• Number of Positions: 3
• Number of Slots: 8
• Tightening Torque: 0.2 Nm
• Housing Material: PBT
• Degree of Protection: IP65/IP67
• Ambient Temperature (Operation): -30 to 80 °C
• Dimensions: 132 x 26 x 30 mm

The Phoenix Contact SACB-8/3-L-M16-M8 Sensor/Actuator Box is built for demanding industrial environments, offering flexible connectivity with M8 sockets and M16 plug connections. With IP65/IP67 protection, it ensures reliable performance even in harsh conditions. Its durable housing and efficient cable management make it ideal for automated control systems requiring optimal signal distribution and power handling.
