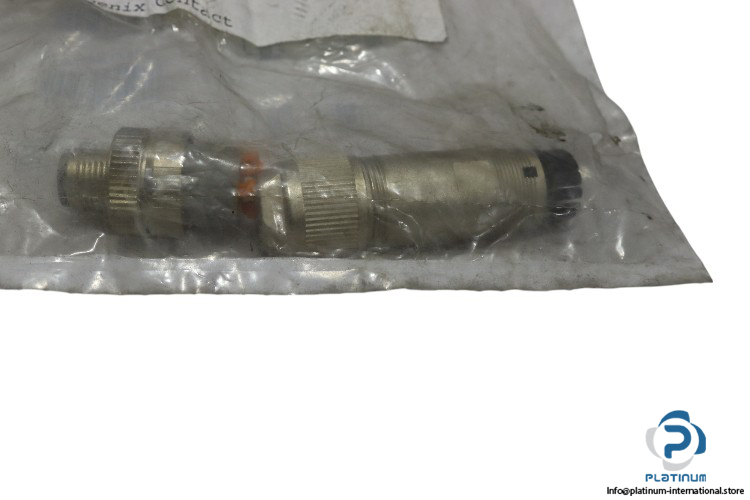

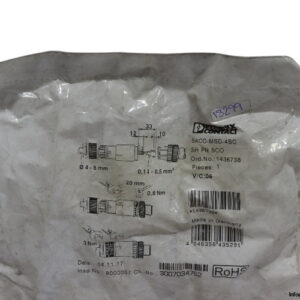

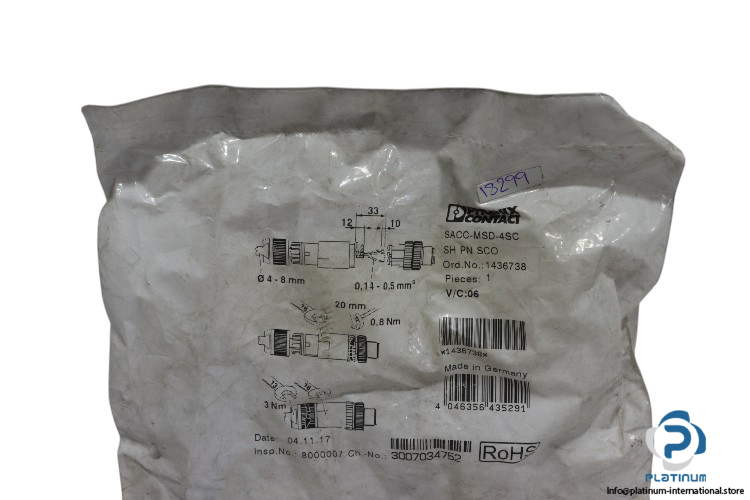

Phoenix Contact SACC-MSD-4SC SH PN SCO Connector

Phoenix Contact SACC-MSD-4SC SH PN SCO Connector

The Phoenix Contact SACC-MSD-4SC SH PN SCO is a high-quality M12 circular connector designed for PROFINET sensor and communication applications. This straight cable-side plug features a 4-position design and supports spring-cage connection technology, enabling fast and reliable wiring. With a robust build and IP67-rated protection, the connector ensures long-term durability and resistance to moisture and dust in demanding industrial environments. It operates efficiently across a wide temperature range from -40°C to +85°C, making it ideal for field-level automation in harsh conditions.

• Manufacturer: Phoenix Contact
• Type: Connector
• Model: SACC-MSD-4SC SH PN SCO

Technical Specifications:

• Nominal Voltage (UN): 60 V DC / 48 V AC
• Nominal Current (IN): 4 A
• Product Type: Circular connector (cable-side)
• Sensor Type: PROFINET
• Connector Head Design: Plug
• Cable Outlet: Straight
• Thread Type: M12
• Number of Positions: 4
• Number of Cable Outlets: 1
• Connection Method: Spring-cage connection
• Stripping Length: 10 mm
• Degree of Pollution: 3
• Length: 61 mm
• Insulation Resistance: 100 MΩ
• Outside Diameter (Cable): 4 mm to 8 mm
• Degree of Protection: IP67
• Ambient Temperature (Operation): -40°C to +85°C

Applications:

• PROFINET sensor and fieldbus systems
• Industrial automation and process control
• Factory floor installations
• Outdoor and rugged environments
