Phoenix Contact ST-REL3-KG 24/21 Relay Connector

In stock1 unitReady to ship

Relay Connector

Phoenix Contact ST-REL3-KG 24/21 relay connector with 24 V AC/DC input, monostable function, 1 changeover contact, and plug-in mounting for industrial control applications.

Manufacturer
PHOENIX CONTACT
SKU
1095778
Category
Others
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

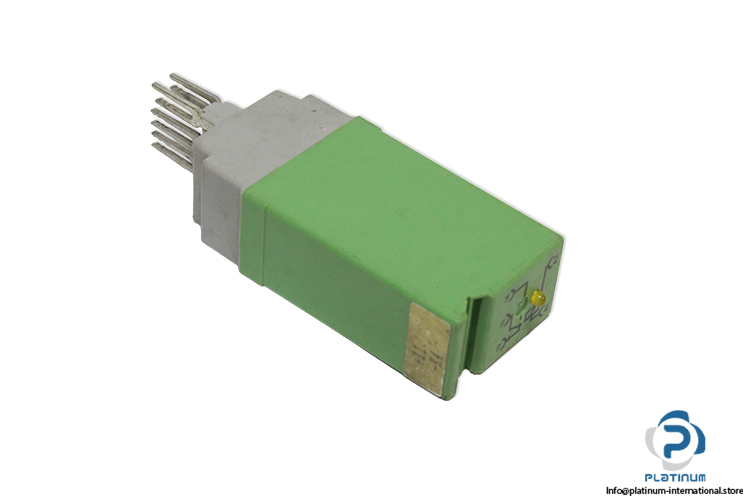

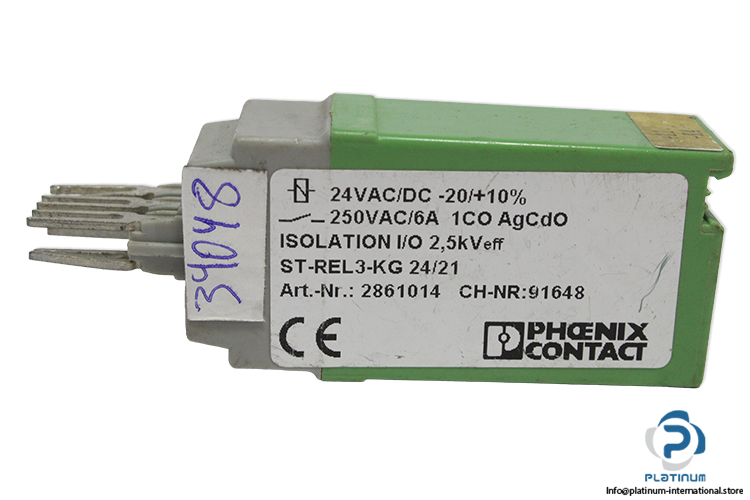

Phoenix Contact ST-REL3-KG 24/21 Relay Connector “ Part No. 2861014

The Phoenix Contact ST-REL3-KG 24/21 is a high-quality relay connector designed for reliable switching and control applications in industrial systems. Engineered for plug-in mounting, it provides stable performance, efficient response times, and durable contact reliability under demanding operating conditions.

Manufacturer: Phoenix Contact

Type: Relay Connector

Model: ST-REL3-KG 24/21

Part No.: 2861014

CH No.: 91648

Interrupting Rating (Ohmic Load) Max.:

95 W (At 24 V DC)

50 W (At 48 V DC)

45 W (At 60 V DC)

35 W (At 110 V DC)

55 W (At 220 V DC)

1500 VA (For 250 V AC)

Nominal Input Voltage (UN)24 V AC/DC
Input Voltage Range19.2 V AC/DC ... 26.4 V AC/DC (20 °C)
Drive And FunctionMonostable
Drive (Polarity)Polarized
Typical Input Current At UN21 mA
Typical Response Time7 ms
Typical Release Time11 ms (With DC)
Protective CircuitBridge Rectifier, Varistor
Contact Switching Type1 Changeover Contact
Type Of Switch ContactSingle Contact
Contact MaterialAgNi
Maximum Switching Voltage250 V AC/DC
Limiting Continuous Current6 A
Maximum Inrush Current8 A
Width20.8 mm
Height33 mm
Depth66.5 mm
Ambient Temperature (Operation)-20 °C ... 50 °C
Mounting TypePlug-In Mounting
