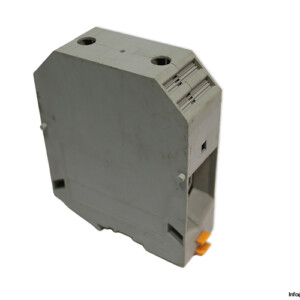

Phoenix Contact UKH 240 High-Current Terminal Block
Used
In stock1 unitReady to ship
High-Current Terminal Block
High-current PHOENIX CONTACT terminal block rated up to 415 A and 1100 V, featuring screw connection, robust PA insulation, and compliance with IEC 60947-7-1 for industrial power distribution.24060947-7-1BlockconnectionContactCurrentDistributionElectricalHighIECIndustrialPhoenixPowerscrewterminalUKH
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

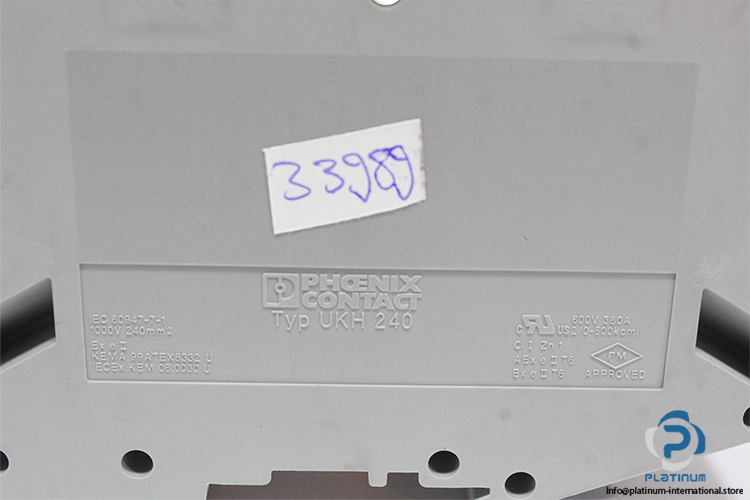

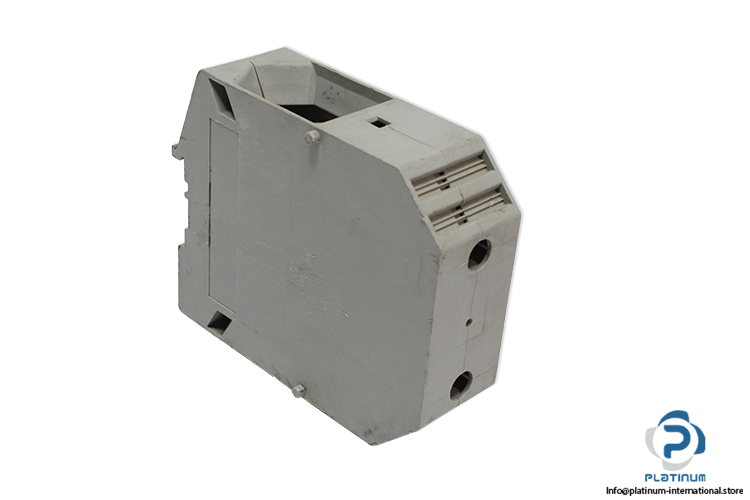

PHOENIX CONTACT UKH 240 High-Current Terminal Block
The PHOENIX CONTACT UKH240 high-current terminal block is engineered for secure and reliable power distribution in demanding industrial environments. Designed for very high current and voltage applications, it features a robust screw connection system and durable insulating material to ensure long-term performance and safety.
Manufacturer: PHOENIX CONTACT
Type: High-Current Terminal Block
Model: UKH 240
| Nominal Current | 415 A |
| Maximum Load Current | 415 A |
| Rated Current | 350 A |
| Maximum Load Current (Rated) | 350 A |
| Nominal Voltage | 1000 V |
| Rated Voltage | 1100 V |
| Rated Surge Voltage | 8 kV |
| Connection Method | Screw Connection |
| Screw Thread | M10 |
| Tightening Torque | 25 / 30 Nm |
| Stripping Length | 40 mm |
| Internal Cylindrical Gage | B15 |
| Connection Standard | IEC 60947-7-1 |
| Conductor Cross-Section (Rigid) | 70 mm² / 240 mm² |
| Overvoltage Category | III |
| Degree of Pollution | 3 |
| Contact Resistance | 0.03 mΩ |
| Maximum Power Dissipation (Nominal Condition) | 13.78 W |
| Explosion Protection Level | General |
| Identification | II 2 GD Ex eb IIC Gb |
| Operating Temperature Range | -60 °C to +110 °C |
| Width | 36 mm |
| Height | 100 mm |
| Depth | 123.6 mm |
| Insulating Material | PA |
