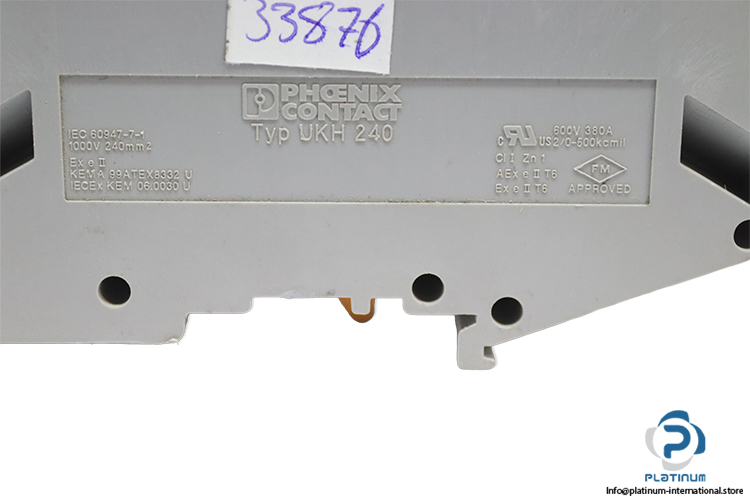

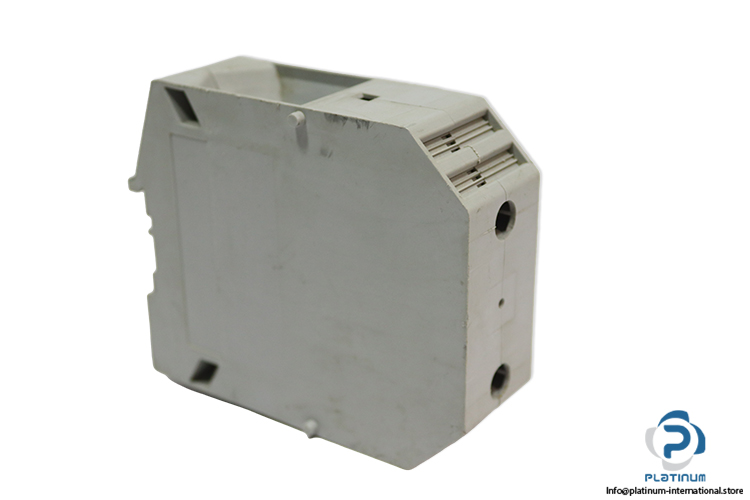

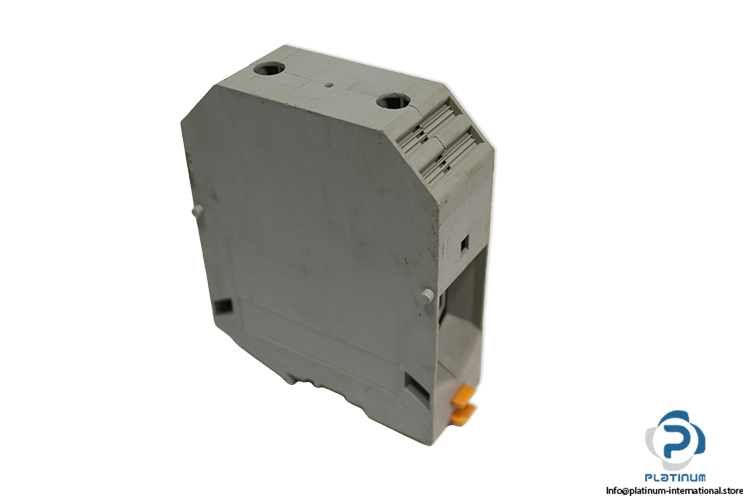

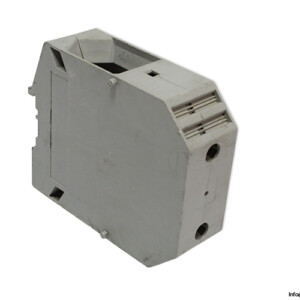

Phoenix Contact UKH 240 High-Current Terminal Block

In stock3 unitsReady to ship

High-Current Terminal Block

High-current PHOENIX CONTACT terminal block rated up to 415 A and 1100 V, featuring screw connection, robust PA insulation, and compliance with IEC 60947-7-1 for industrial power distribution.

Manufacturer
PHOENIX CONTACT
SKU
1084834
Condition
New
Used In stock
This product is also available used
View Used Version →
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

PHOENIX CONTACT UKH 240 High-Current Terminal Block

The PHOENIX CONTACT UKH240 high-current terminal block is engineered for secure and reliable power distribution in demanding industrial environments. Designed for very high current and voltage applications, it features a robust screw connection system and durable insulating material to ensure long-term performance and safety.

Manufacturer: PHOENIX CONTACT

Type: High-Current Terminal Block

Model: UKH 240

Nominal Current415 A
Maximum Load Current415 A
Rated Current350 A
Maximum Load Current (Rated)350 A
Nominal Voltage1000 V
Rated Voltage1100 V
Rated Surge Voltage8 kV
Connection MethodScrew Connection
Screw ThreadM10
Tightening Torque25 / 30 Nm
Stripping Length40 mm
Internal Cylindrical GageB15
Connection StandardIEC 60947-7-1
Conductor Cross-Section (Rigid)70 mm² / 240 mm²
Overvoltage CategoryIII
Degree of Pollution3
Contact Resistance0.03 mΩ
Maximum Power Dissipation (Nominal Condition)13.78 W
Explosion Protection LevelGeneral
IdentificationII 2 GD Ex eb IIC Gb
Operating Temperature Range-60 °C to +110 °C
Width36 mm
Height100 mm
Depth123.6 mm
Insulating MaterialPA
