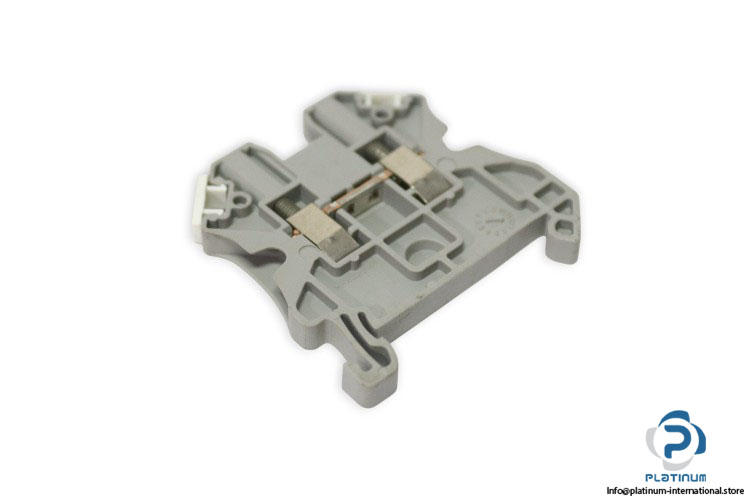

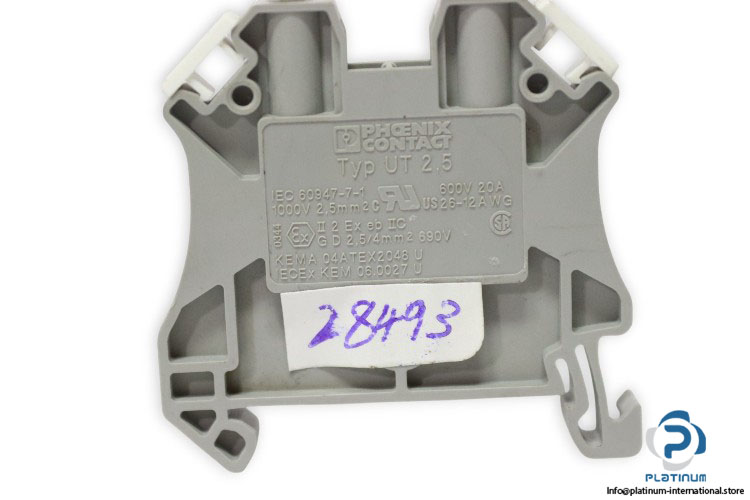

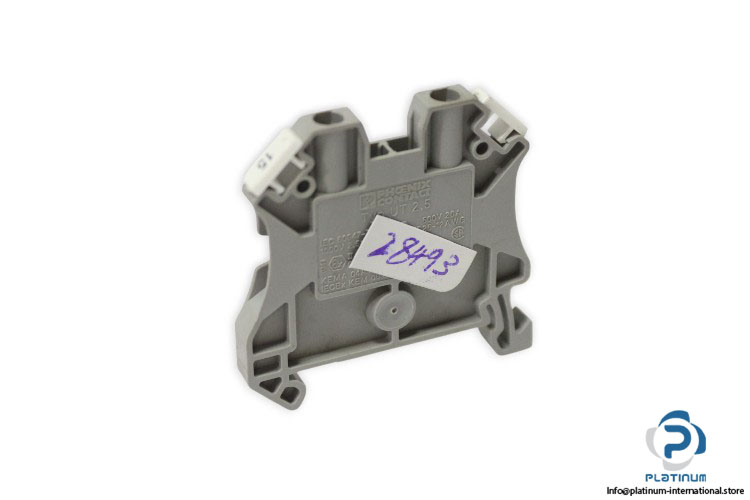

Phoenix Contact UT 2.5 Feed-Through Terminal Block
Used
In stock1 unitReady to ship
FEED-THROUGH TERMINAL BLOCK
The Phoenix Contact UT2.5 is a high-quality feed-through terminal block with 2.5 mm² cross section, screw connection method, and compliance with IEC 60947-7-1. It provides secure wiring, 8 kV surge voltage resistance, and reliable operation from -60 °C to 110 °C.122.560947-7-1AWGBlockconnectionContactfamilyfeedHighIECIndustrialmm2PhoenixscrewSurgeTermterminalThroughUTUT2.5voltageWiring
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
PHOENIX CONTACT UT2.5 FEED-THROUGH TERMINAL BLOCK
The Phoenix Contact UT2.5 is a compact and reliable feed-through terminal block from the UT family, designed to ensure secure electrical connections with screw-type fastening. Built to meet IEC 60947-7-1 standards, it offers high surge voltage resistance and stable operation across a wide temperature range, making it ideal for demanding industrial environments.
Manufacturer: Phoenix Contact
Type: Feed-through Terminal Block
Model: UT2.5
Family: UT
| Number of Connections | 2 |
| Number of Rows | 1 |
| Potentials | 1 |
| Connections per Level | 2 |
| Nominal Cross Section | 2.5 mm² |
| Rated Cross Section | AWG 12 |
| Connection Method | Screw Connection |
| Screw Thread | M3 |
| Tightening Torque | 0.5 ... 0.6 Nm |
| Stripping Length | 9 mm |
| Internal Cylindrical Gage | A3 |
| Standard Compliance | IEC 60947-7-1 |
| Conductor Cross-Section Rigid | 0.14 mm² ... 4 mm² |
| Cross Section AWG | 26 ... 12 |
| Rated Surge Voltage | 8 kV |
| Maximum Power Dissipation (Nominal) | 0.77 W |
| Identification | II 2 GD Ex eb IIC Gb |
| Operating Temperature Range | -60 °C ... 110 °C |
