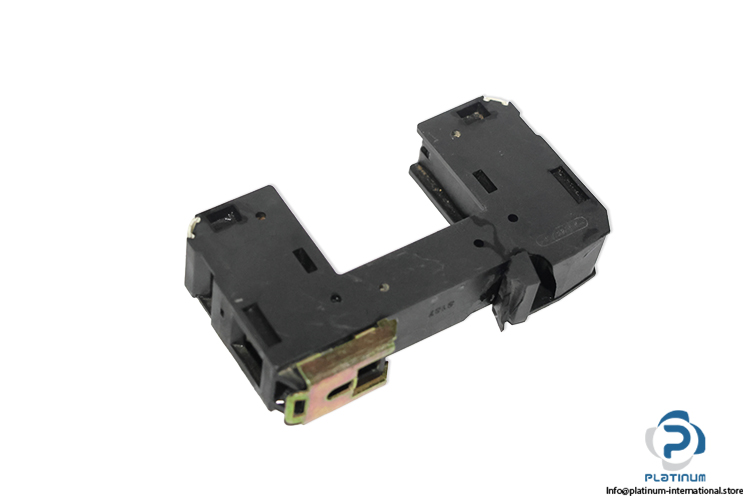

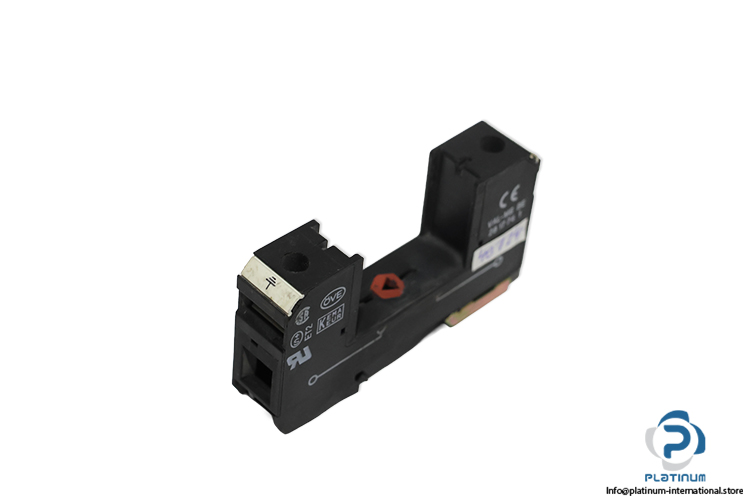

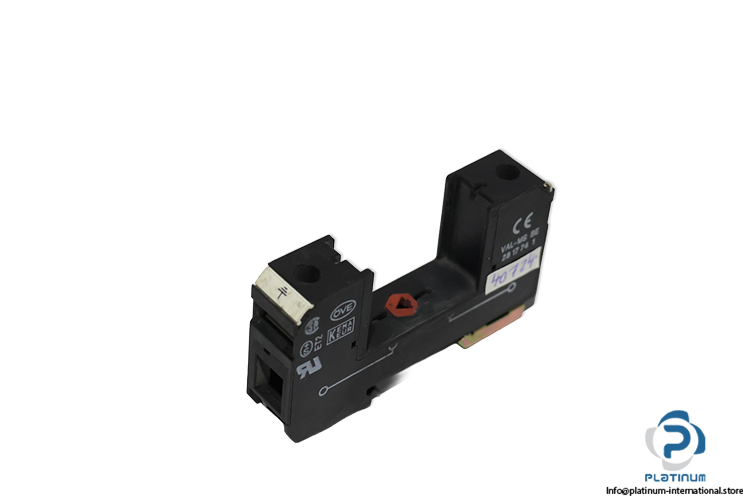

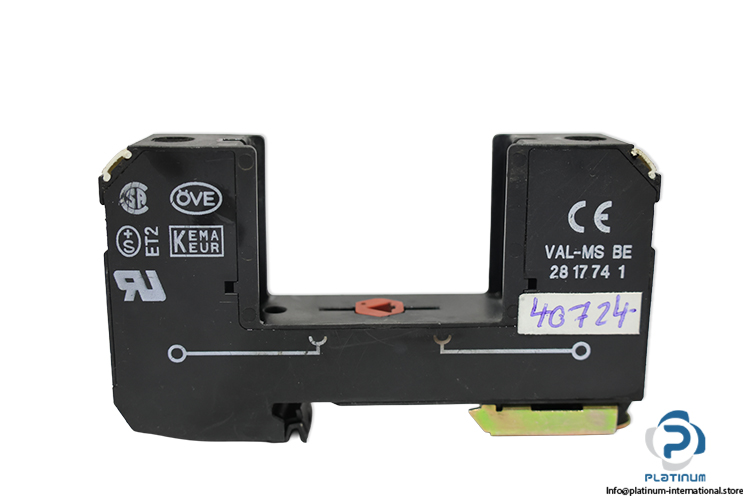

Phoenix Contact VAL-MS BE Type 2 Surge Protection Base Element

In stock28 unitsReady to ship

The Phoenix Contact VAL-MS BE Type 2 Surge Protection Base (Item No. 28 17 74 1) is designed for industrial electrical surge protection systems. It features a 690 V AC nominal voltage, 600 V AC maximum continuous operating voltage, 80 A rated load current, 25 kA short-circuit current rating, M5 screw connection, and IP20 protection. Its compact PA 6.6 housing supports reliable integration into electrical installations and control cabinets.

Manufacturer
PHOENIX CONTACT
SKU
1105019
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Item number28 17 74 1
Nominal frequency50 Hz (60 Hz)
Nominal voltage690 V AC
Maximum continuous operating voltage600 V AC
Rated load current80 A
Short-circuit current rating25 kA
Tightening torque3 Nm (1.5 mm² ... 16 mm²) /4.5 Nm (25 mm² ... 35 mm²)
ConnectionScrew connection M5
Housing materialPA 6.6
StandardsIEC 61643-11
Degree of protectionIP20
Ambient temperature (operation)-40 °C ... 80 °C
Dimensions17.6 x 89.8 x 51.5 mm
Conditionused
Stock keyCON003
SKU1105019
Weight0,07
