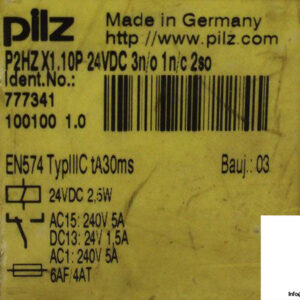

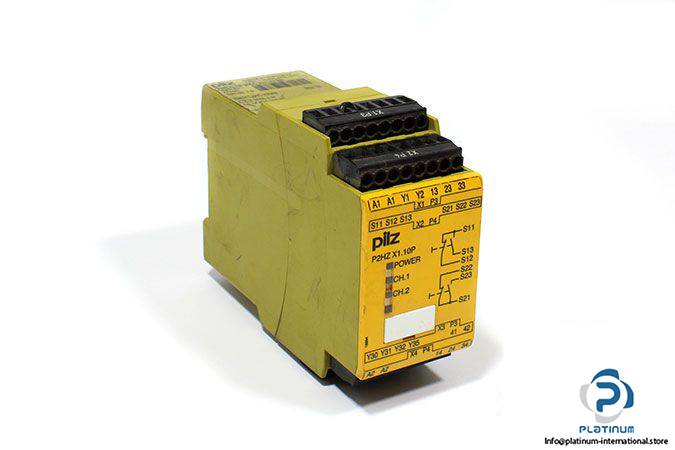

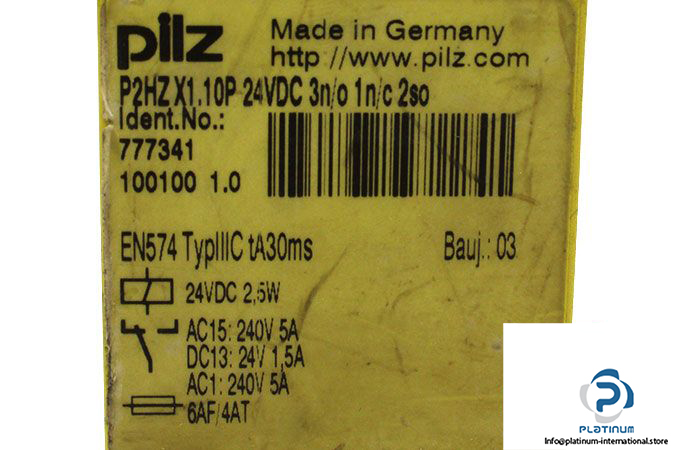

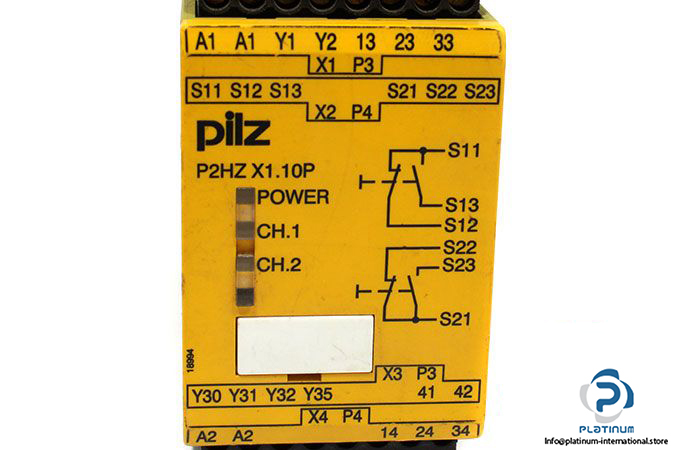

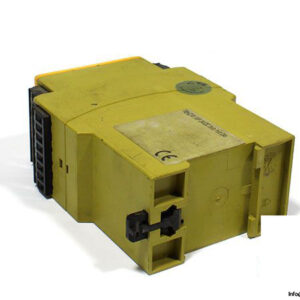

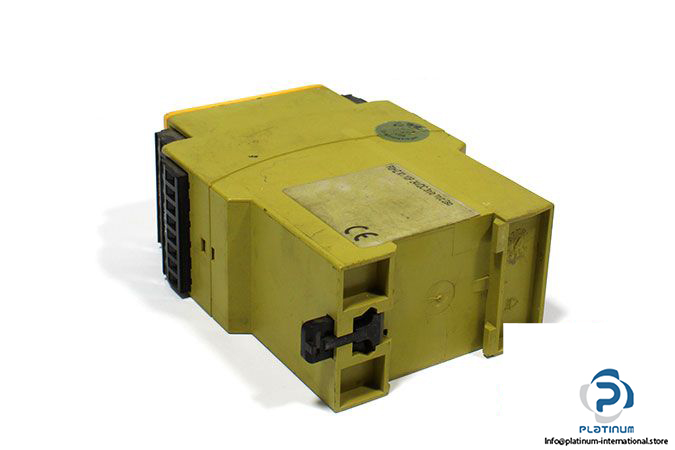

Pilz P2HZ X1.10P 24VDC 3N/O 1N/C 2SO Safety Relay

Manufacturer: PILZ

Type: SAFETY RELAY

Model: P2HZ X1.10P 24VDC 3N/O 1N/C 2SO

Supply Voltage: 24 V DC

Consumption Power: 2.5 W

Contacts Voltage:

AC15: 240V  5A

DC13: 24V  1.5A

AC1: 240V  5A

Inputs: 1 Normally Open, 1 Normally Closed

Outputs: 3 Normally Open, 1 Normally Closed

Number of Channels: 2 Channels

Ambient temperature: -25 … 55 °C

Dimensions: 45 x 94 x 120 mm

Weight: 0.3 kg
