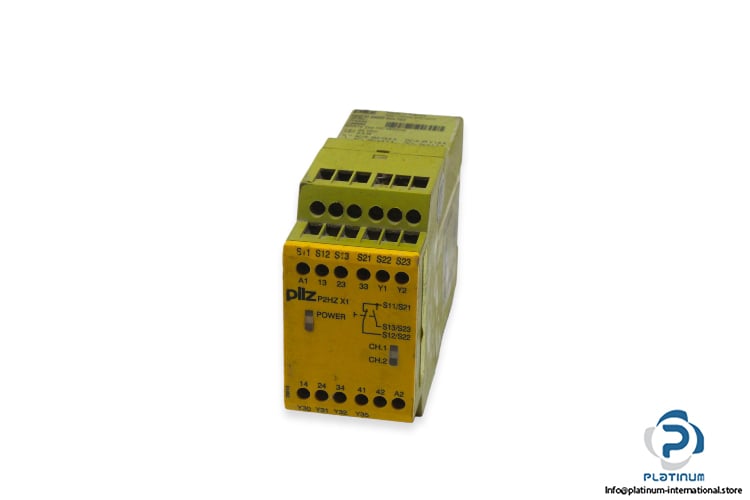

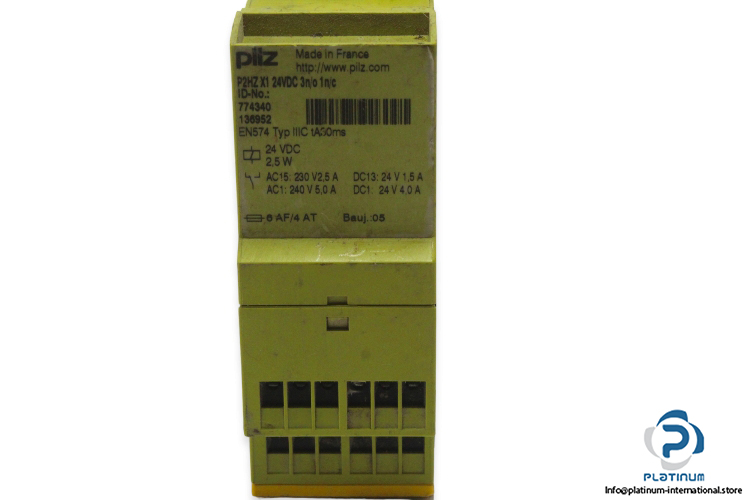

Pilz P2HZ X1 24VDC 3N/O 1N/C Safety Relay

Manufacturer: Pilz

Type: Safety Relay

Model: P2HZ X1 24VDC 3N/O 1N/C

ID-No.: 774340 / 136952

Supply voltage: 24 V DC

Power consumption: 2.5 W

Number of inputs: 2

Number of semicond. outputs: 2

Relay outputs: 1 Normally open, 1 Normally closed

Switching capacity:

AC15: 230V, 2.5A

AC1: 240V, 5A

DC13: 24V, 1.5A

DC1: 24V, 4A

Relay contact material: AgSnO2

Electrical connection: Screw terminals

Ambient temperature: -25 … +55 °C

Degree of Protection: Mounting IP54, housing IP40 & Terminal IP20

Dimensions: 87 x 45 x 121 mm
