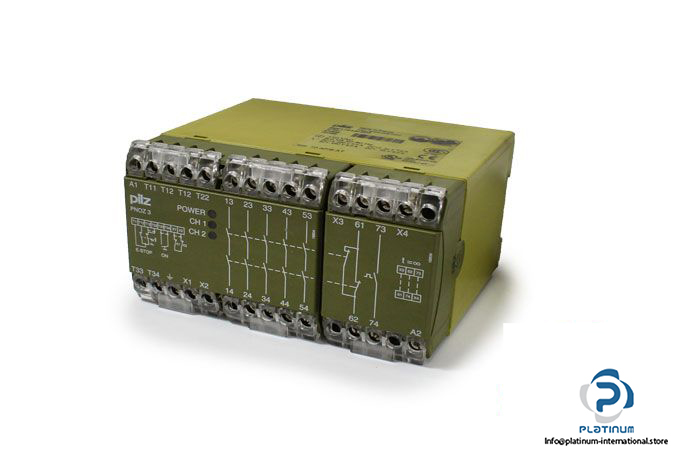

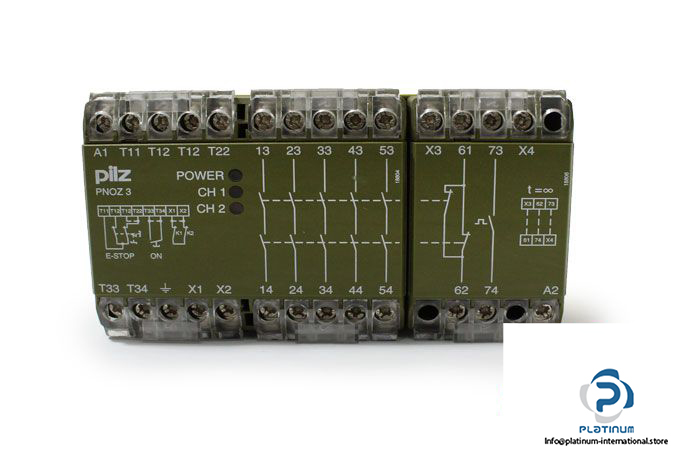

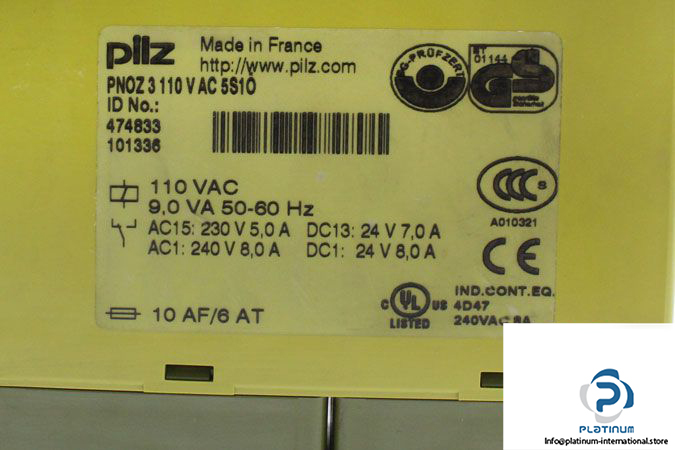

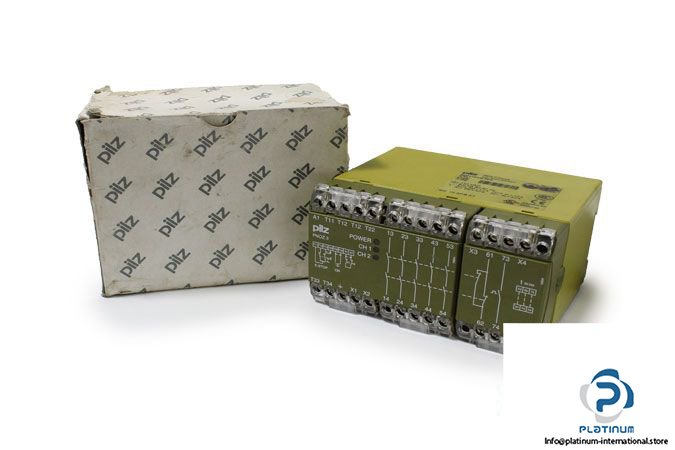

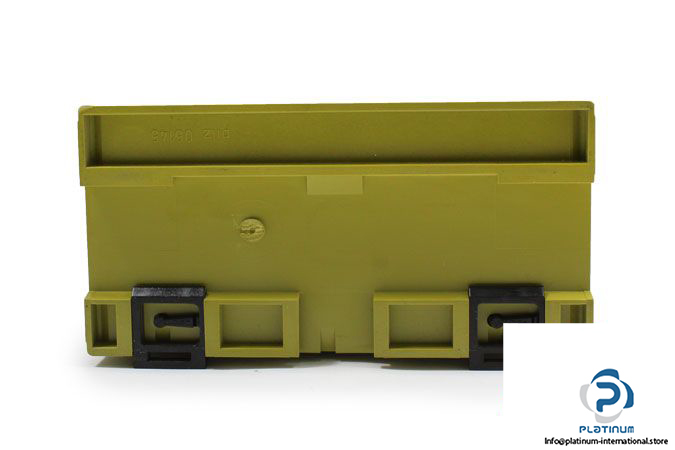

Pilz Pnoz 3 110 V AC 5S1O Safety Relay

Manufacturer: PILZ

Type: SAFETY RELAY

Model: PNOZ 3 110 V AC 5S1O

Part No.: 474833

Supply Voltage: 110 VAC

Power Consumption: 9 VA

Frequency: 50-60 Hz

Output Contact: 5 Safety contacts (N/O), 1 Auxiliary contact (N/C), 1 Fleeting contact (N/O)

Operating Temperature: -10 … 55 °C

Contact Fuse Protection: 10 A quick, 6 A slow

Torque Setting for Connection Terminal Screws: 1.2 Nm

Protection Class: IP20

Dimension: 75 X 110 X 135 mm

Weight: 0.83 Kg
