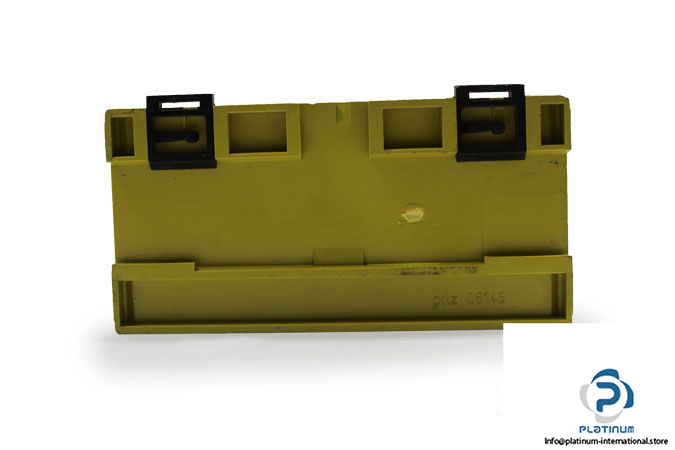

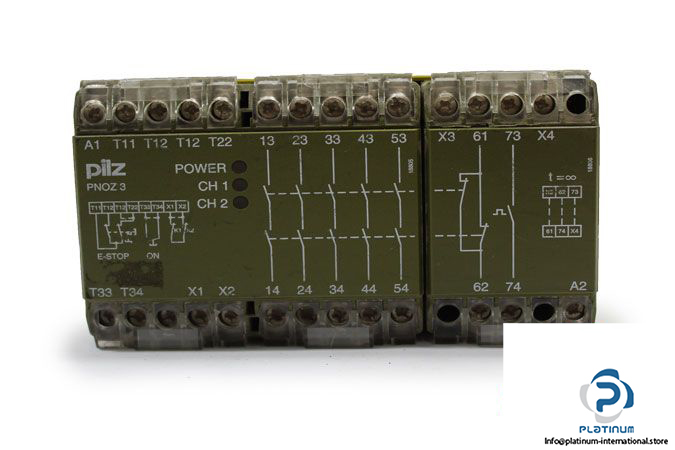

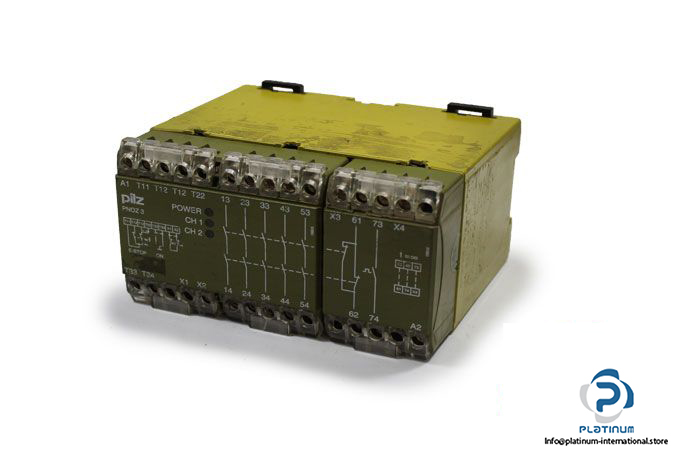

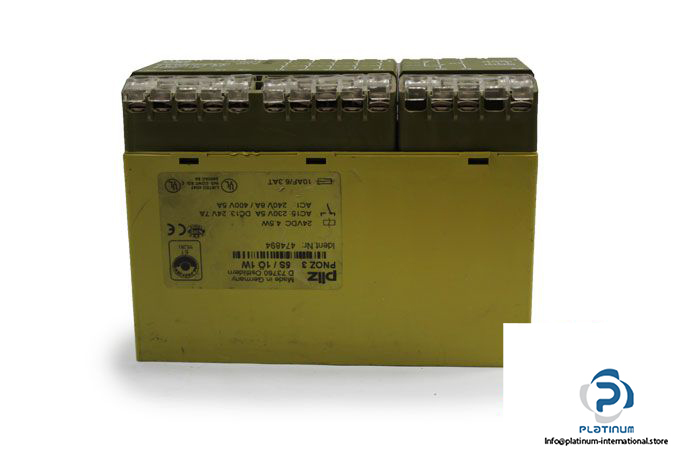

Pilz Pnoz 3 5S/1O 1W Safety Relay

Manufacturer: PILZ

Type: SAFETY RELAY

Model: PNOZ 3 5S/1O 1W

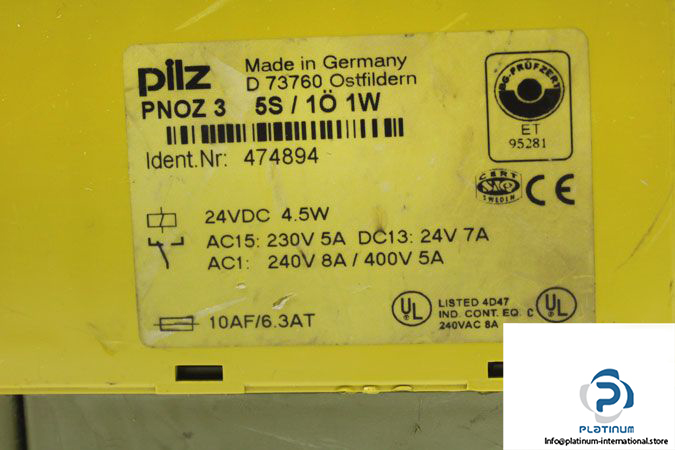

Part No.: 474894

Supply Voltage: 24 VDC

Power Consumption: 4.5 W

Output Contact: 5 Safety contacts (N/O), 1 Auxiliary contact (N/C), 1 Fleeting contact (N/O)

Operating Temperature: -10 … 55 °C

Contact Fuse Protection: 10 A quick, 6 A slow

Torque Setting for Connection Terminal Screws: 1.2 Nm

Protection Class: IP20

Dimension: 75 X 110 X 135 mm

Weight: 0.83 Kg
