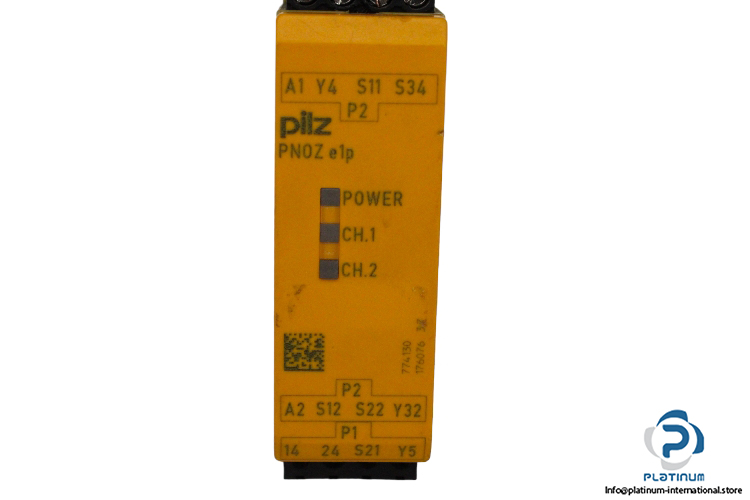

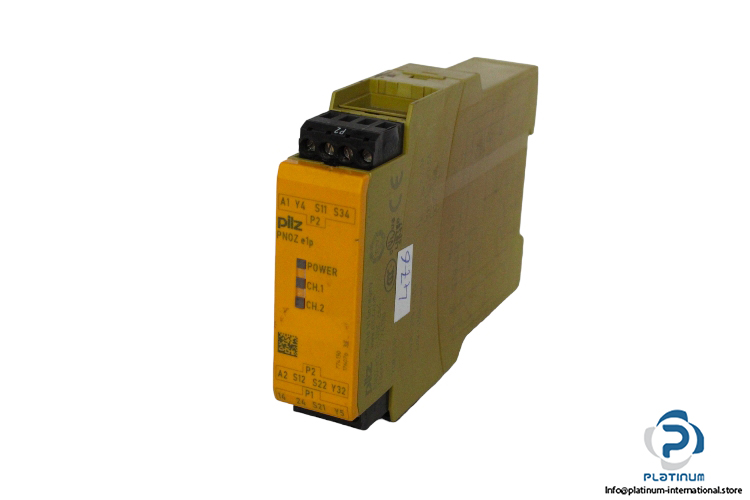

Pilz Pnoz E1P 24VDC 2SO Safety Relay

Manufacturer: Pilz

Type: Safety relay

Model: PNOZ E1P 24VDC 2SO

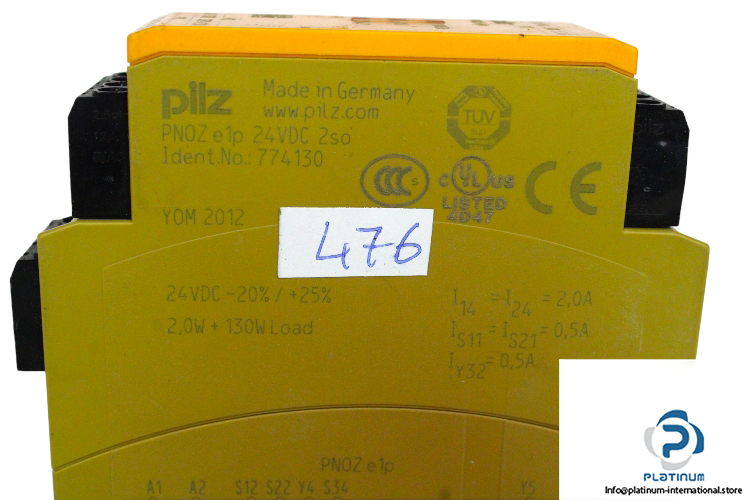

Part No.: 774130

Supply voltage: 24 V DC -20% / +25%

Current: 0.5 A,2 A

Max. device circuit breaker: 6 A slow / 10 A quick

Power: 2 W without load, 130 W with load

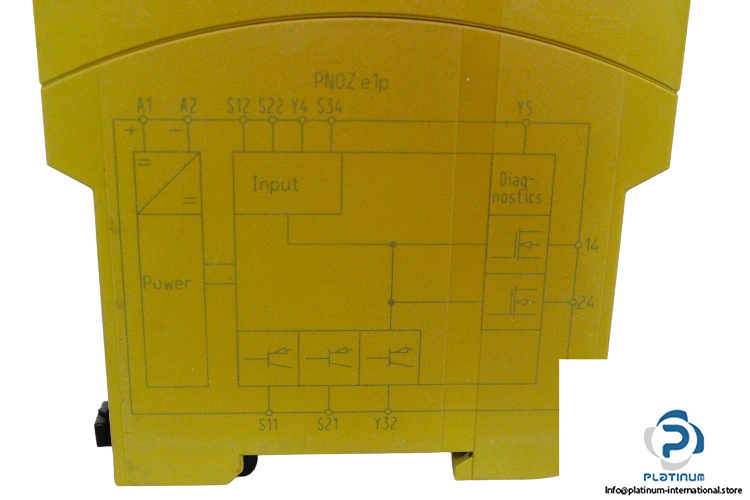

Inputs: 1/2-channel wiring

Outputs: 2 safety outputs, 1 auxiliary output

Pollution degree: 2

Terminal protection type: IP20

Connection terminal: screw terminal

Ambient temperature: -10 … 55 °C

Dimensions: 90.5 x 22.5 x 121 mm
