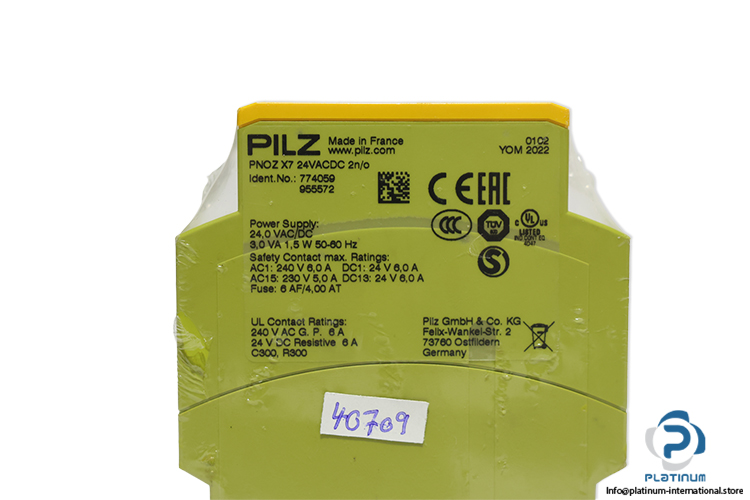

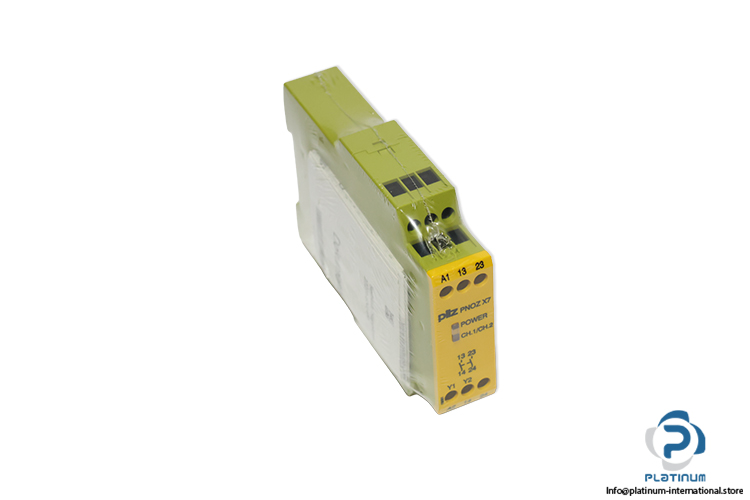

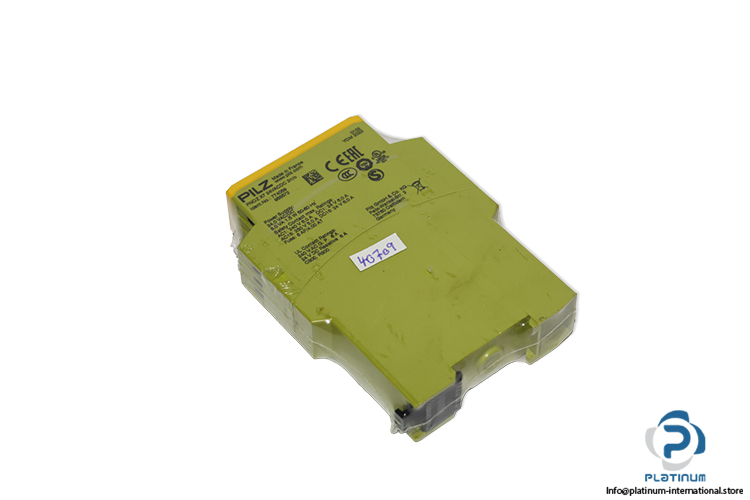

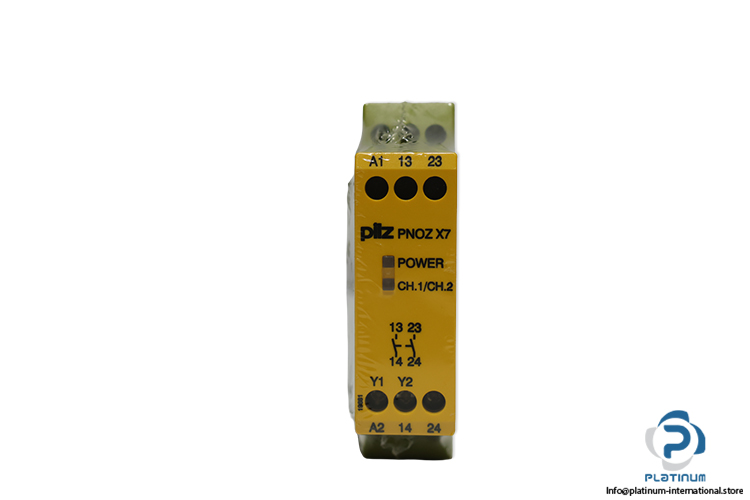

Pilz Pnoz X7 24VACDC 2N/0 Safety Relay
New
Available on request
Safety Relay Pilz PNOZ X7 safety relay with 24V AC/DC supply, 2 normally open safety contacts, and screw terminals for industrial safety applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ident.No | 774059 / 955572 |
| Supply voltage (V) | 24,0 |
| No of normally open | 2 |
| Type of supply voltage U1 | AC/DC |
| Power consumption AC | 3 VA |
| Power consumption DC | 1.5 W |
| Number of inputs | 1 |
| Number of semicond. outputs | 0 |
| Utilisation cat. AC/DC1 stand. | EN 60947-4-1 |
| Voltage AC1 safety cont | 240 V |
| Max. current AC1 safety cont | 6 A |
| Voltage DC1 safety cont | 24 V |
| Max. current DC1 safety cont | 6 A |
| Utilisation cat. AC15/DC13sta | EN 60947-5-1 |
| Voltage AC15 safety cont | 230 V |
| Max. current AC15 safety cont. | 5 A |
| Voltage DC13 safety cont. | 24 V |
| Max. current DC13 safety cont | 6A |
| Safety contacts | pilot duty: C300, R300 |
| Relay contact material | AgSnO2 |
| Addit. contact details relay | + 0.2 µm Au |
| Climatic suitability to | EN 60068-2-78 |
| Ambient temperature | -10 - 55 °C |
| Humidity rating | 93 % r. h. at 40 °C |
| EMC to standard | EN 60947-5-1, EN 61000-6-2, EN 61326-3-1 |
| Vibration to standard | EN 60068-2-6 |
| Clearance & creepage dist. to | EN 60947-1 |
| Overvoltage category | III / II |
| Pollution degree clear.&creep | 2 |
| Housing material lower section | PPO UL 94 V0 |
| Housing material front plate | ABS UL 94 V0 |
| Housing material upper part | PPO UL 94 V0 |
| Connection terminal | Screw terminal |
| Terminal style | fixed |
| Flex. cond. c/s AWG info | 24 - 10 AWG |
| Height dimension | 87 mm |
| Width dimension | 22.5 mm |
| Depth dimension | 121 mm |
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS except.s acc. to direct. | 7a, 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead, Lead oxide |
| ECLASS version | ECLASS-9.1 |
| ECLASS Reference Feature | 27371819 |
| ETIM Version | ETIM-7.0 |
| Condition | New |
| Stock key | EU002 |
| SKU | 1105005 |
| Weight | 0,2 |
