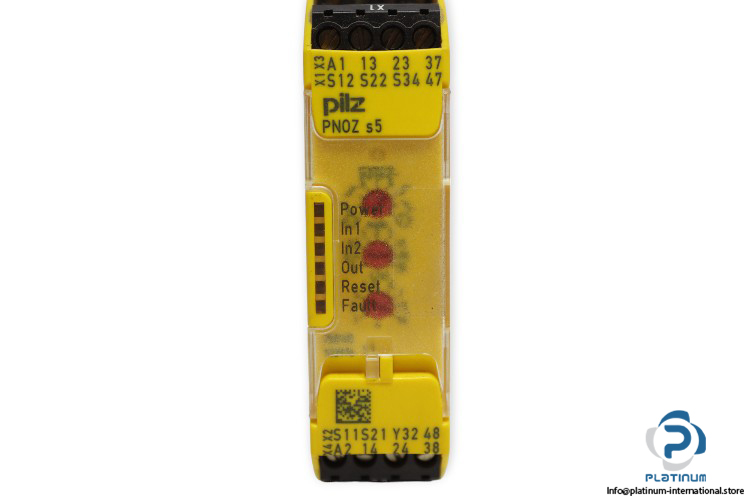

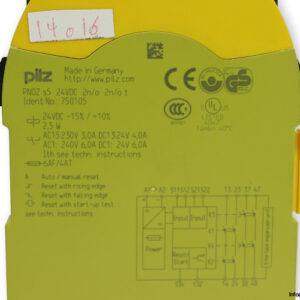

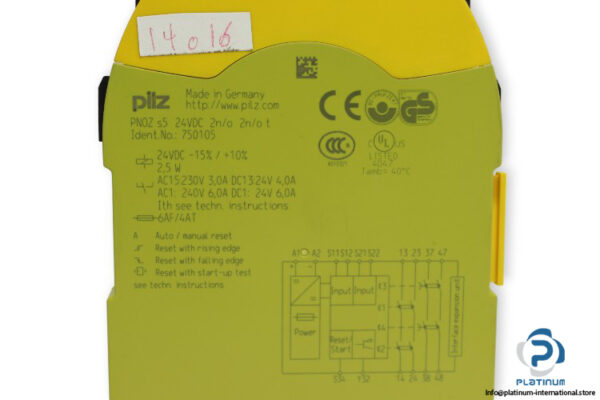

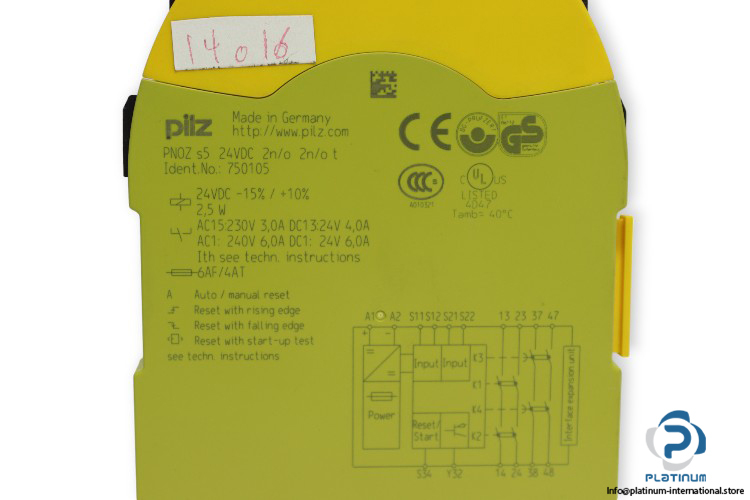

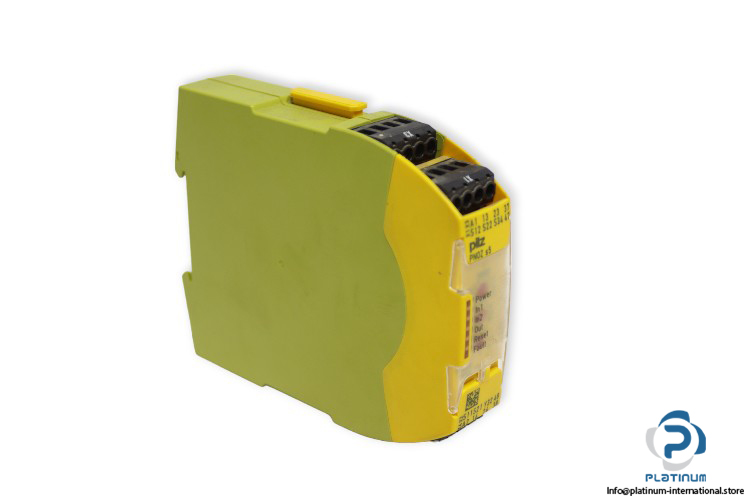

Pilz Pnoz S5 24VDC 2N/O 2N/O T Time Monitoring

Manufacturer: PILZ
Type: Time Monitoring
Model: PNOZS524VDC2N/O2N/OT
ID. No.: 750105

Supply voltage: 24 V DC
Power consumption: 2.5 W
Number of inputs: 2
Relay outputs:
Conacts: 4 Normally open contacts
Voltage AC1 safety cont.: 240 V
Max. current AC1 safety cont.: 6 A
Voltage DC1 safety cont.: 24 V
Max. current DC1 safety cont.: 6 A
Voltage AC15 safety cont.: 230 V
Max. current AC15 safety cont.: 3 A
Voltage DC13 safety cont.: 24 V
Max. current DC13 safety cont.: 4 A
Ambient Temperature: -10 … +55 °C
Protection type, mounting: IP54
Protection type, housing: IP40
Terminal protection type: IP20
Connection terminal: Screw terminal
Terminal style: plug-in
Dimensions: 98 x 22.5 x 120 mm
