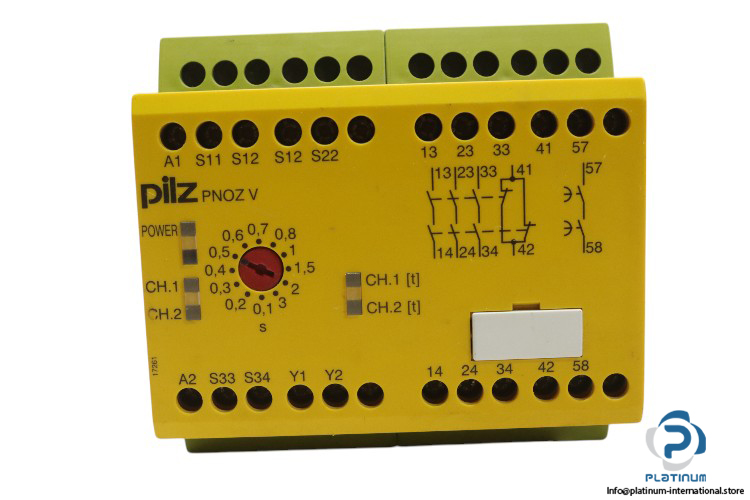

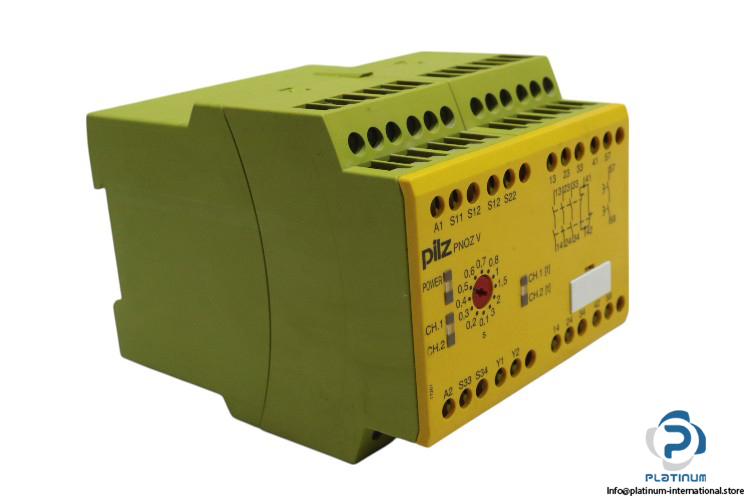

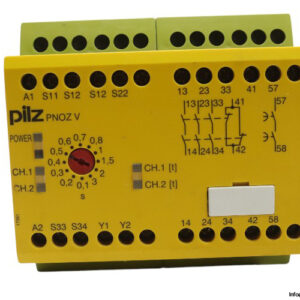

Pilz Pnoz V 3S 24VDC 3N/O 1N/C 1N/O T Safety Relay
Reliable PILZ safety relay with 24V DC operation, featuring 3N/O, 1N/C, and 1 delayed N/O contact. Ideal for safety-critical industrial automation applications.
Manufacturer: PILZ
Type: Safety Relay
Model: PNOZ V 3S 24VDC 3N/O 1N/C 1N/O T

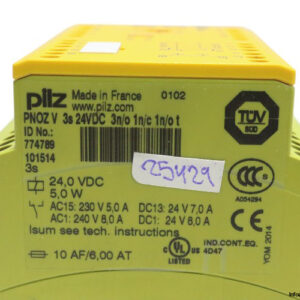

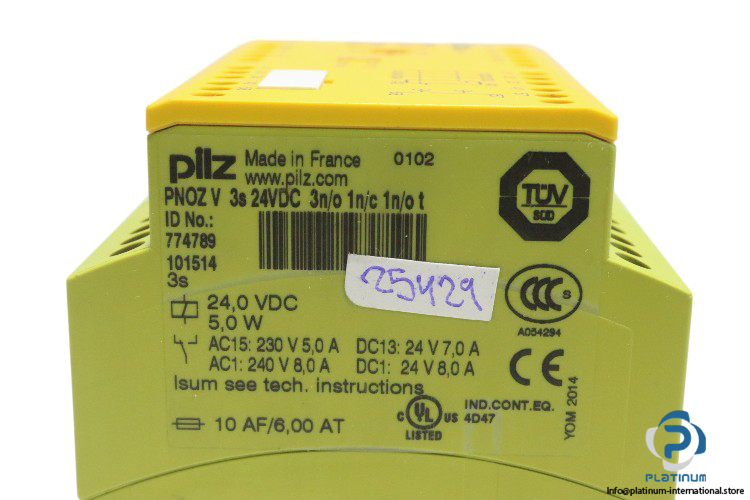

ID No.: 774789 / 101514
Rated Voltage: 24V DC
Rated Power: 5.0 W
AC15 Rating: 230 V 5.0 A
AC1: 240 V 8.0 A
DC13 Rating: 24 V 7.0 A
DC1: 24 V 8.0 A
The PILZ safety relay is a high-performance industrial safety device designed to monitor safety functions such as emergency stops and safety gates. Model PNOZ V 3S 24VDC offers reliable operation with 3 normally open, 1 normally closed, and 1 delayed normally open contact. It operates at 24V DC with a rated power of 5.0 W, ensuring effective protection in both AC and DC control circuits. Ideal for integration into safety-critical automation systems, it guarantees user protection and system reliability in compliance with safety standards.
