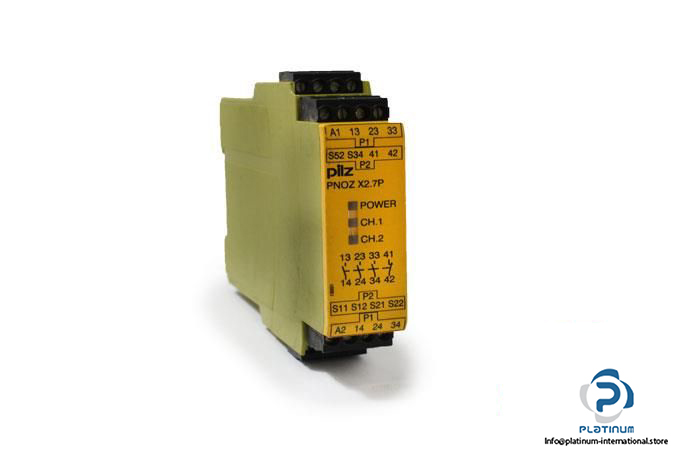

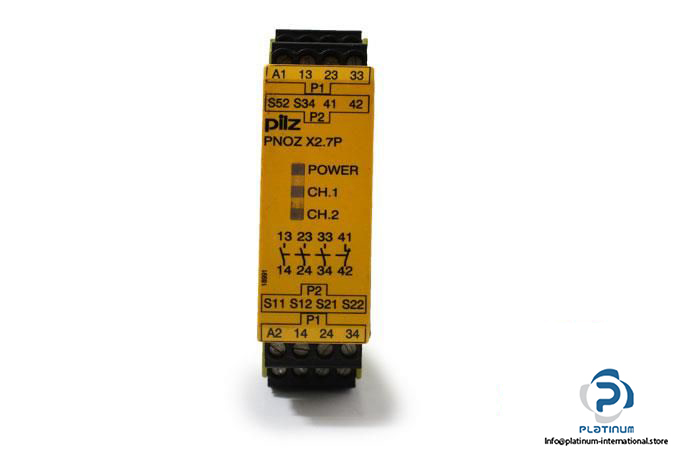

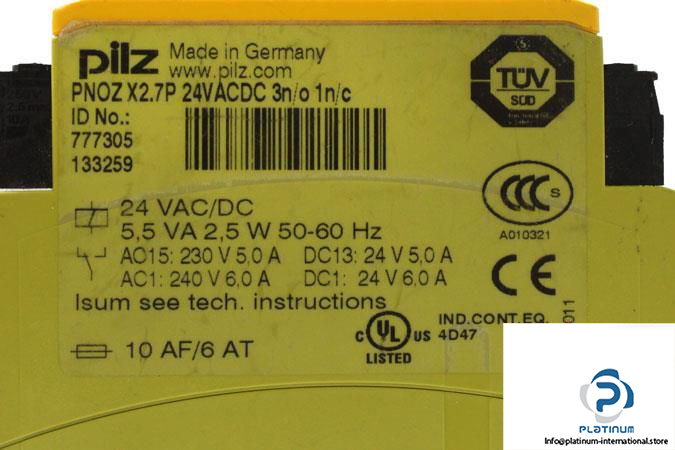

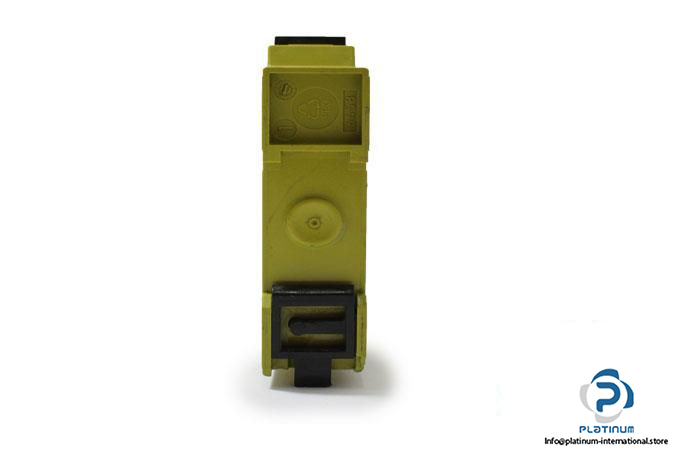

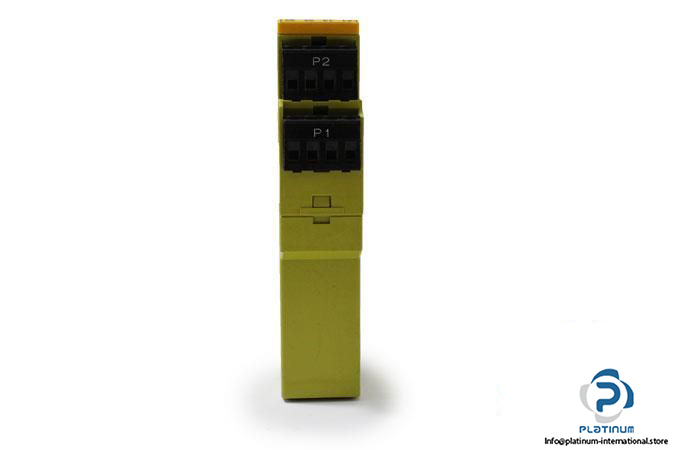

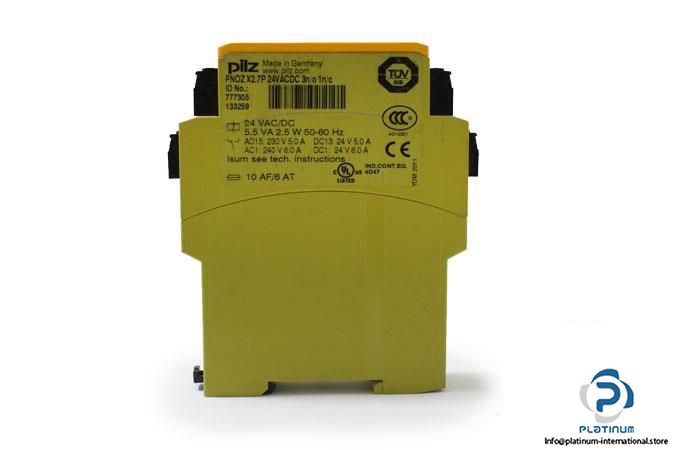

Pilz Pnoz X2.7P 24VACDC 3N/O 1N/C Safety Relay Standalone

Manufacturer: PILZ

Type: SAFETY RELAY STANDALONE

Model: PNOZ X2.7P 24VACDC 3N/O 1N/C

Part No.: 777305

Supply Voltage: 24 V AC/DC

Current: Max. 5 A

Terminal Style: Plug-in

Terminal Type: Screw Terminal

Number of Instantaneous Safety Contacts: 3

Number of Auxiliary Contacts: 1

Operating Modes: Single-Channel

Protection Class: IP20

Ambient Temperature: -35 … +55 °C

Dimension: 121X 22.5 X 94 mm
