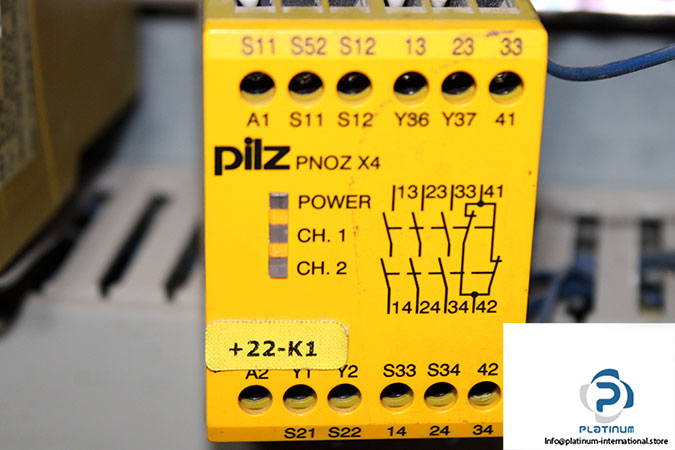

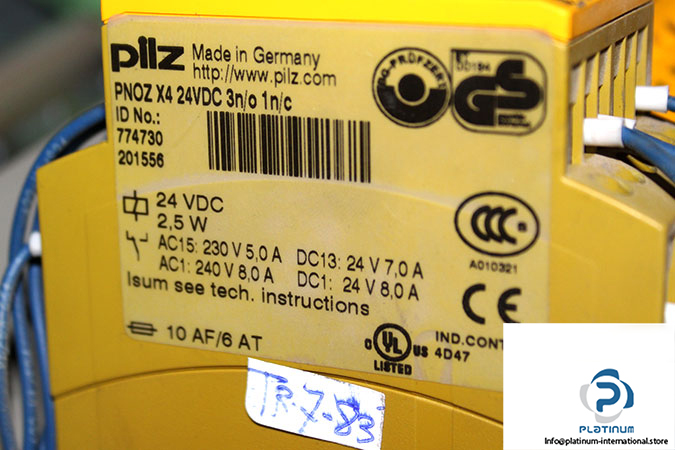

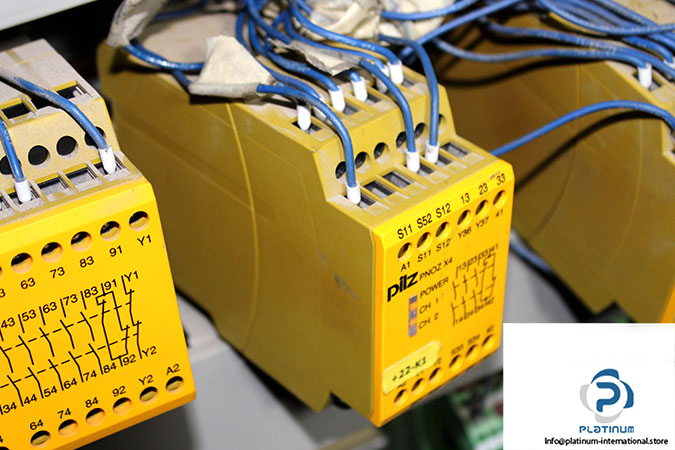

Pilz Pnoz X4 24VDC 3N/0 1N/C Safety Relay

Manufacturer: PILZ
Type: Safety Relay
Model: PNOZ X4 24VDC 3N/0 1N/C
Part No.: 774730

Supply Voltage: 24 V DC
Power: 2.5 W
Terminal Style: Fixed

Terminal Type: Screw Terminal
No. of Channels: 2
Contact Configuration: 3 Normally Open, 2 Normally Closed
Contact Rating: 230 V AC, 5 A/ 24 V DC, 7 A/ 240 V AC, 24/240 V DC, 8 A
Operating Temperature: -10 … 55 °C
Dimensions: 121 X 87 X 45 mm
