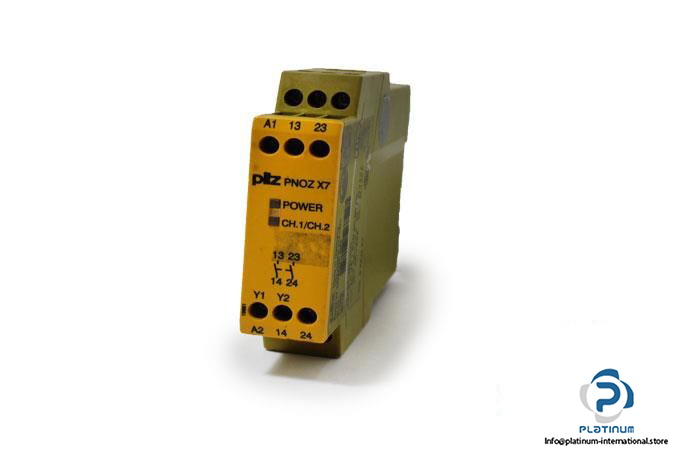

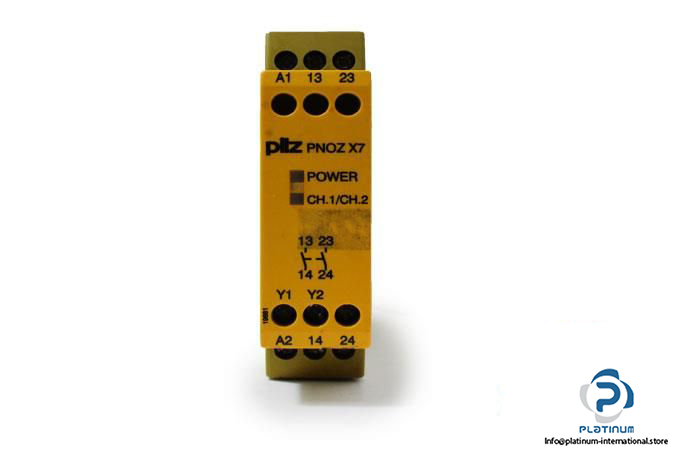

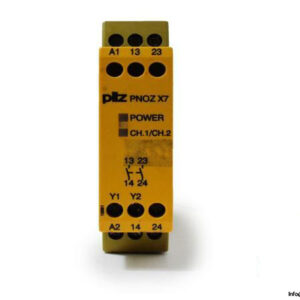

Pilz Pnoz X7 24VACDC 2N/O Safety Relay

Manufacturer: PILZ

Type: SAFETY RELAY

Model: PNOZ X7 24VACDC 2N/O

Part No.: 774059

Supply Voltage: 24 V AC/DC

Frequency: 50-60 Hz

Output of External Power Supply: 3 VA, 1.5 W

Connection Type: Screw terminal

Torque Setting on Connection Terminals: 0.6 Nm

Voltage tolerance: -15 %/+10 %

Residual Ripple DC: 160 %

Ambient Temperature: -10 … +55 °C

Dimension: 121 X 22.5 X 87 mm

Weight: 0.185 Kg

Condition: Used
