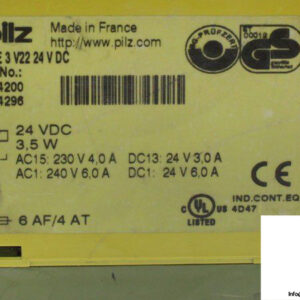

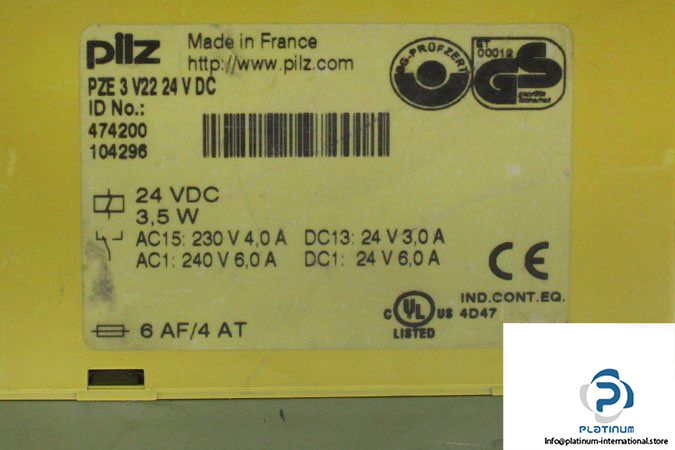

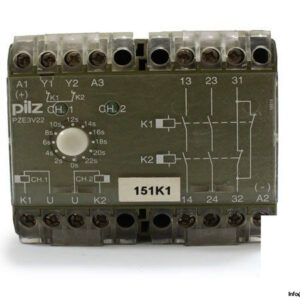

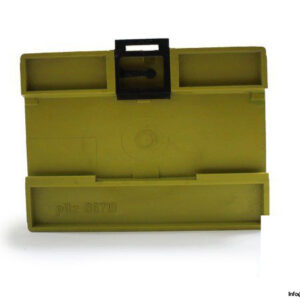

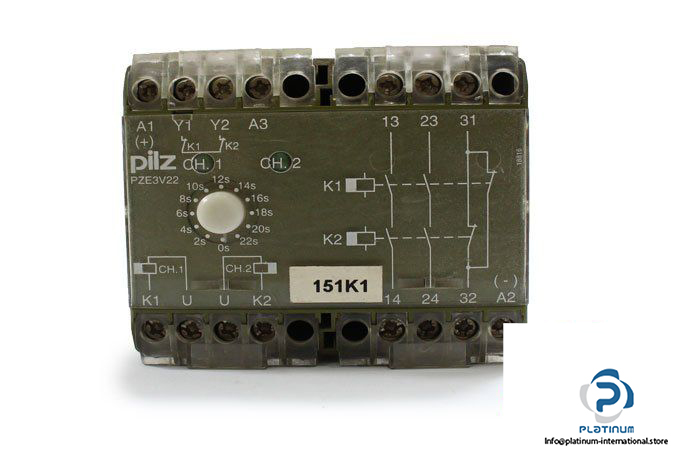

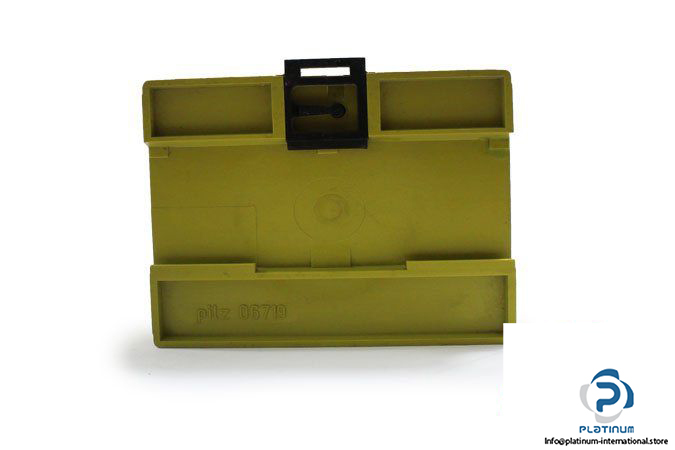

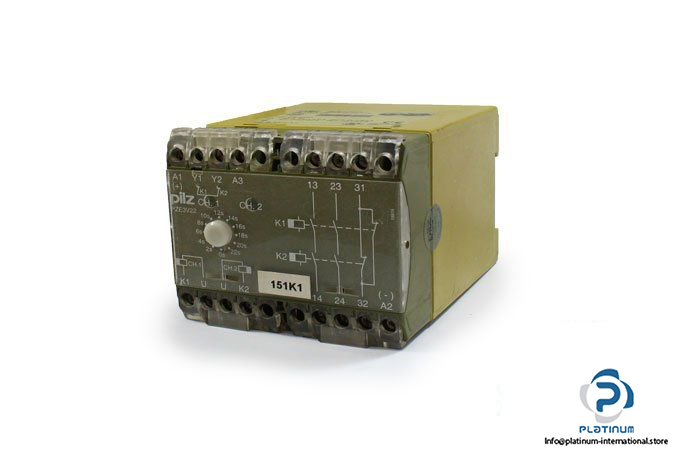

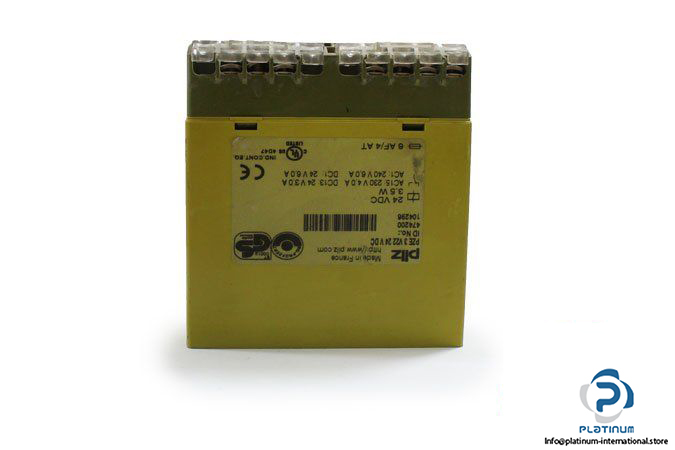

Pilz PZE 3 V22 24 V DC Expander Module

Manufacturer: PILZ

Type: EXPANDER MODULE

Model: PZE 3 V22 24 V DC

Part No.: 474200

Supply Voltage: 24 VDC

Power Consumption: 3.5 W

Frequency: 50-60 Hz

Storage Temperature: -25 … +85 °

Output Contacts: 2 safety contacts (N/O), 1 auxiliary contact (N//C)

Contact Fuse Protection: 6 A quick or 4 A slow

Delay-on Energisation: Approx. 20 ms

Torque Setting on Connection Terminals: 0.6 Nm (screws)

Tolerance: 85 … 110 %

Dimension: 87 X 90 X 110 mm

Protection Class: IP 20

Weight: 0.47 Kg
