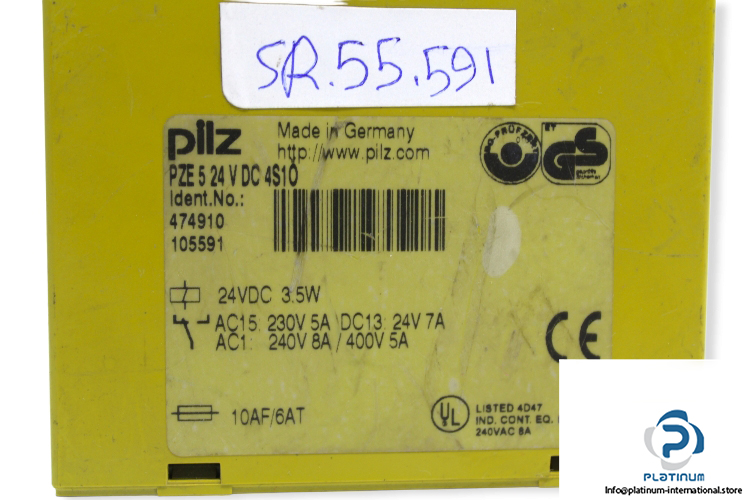

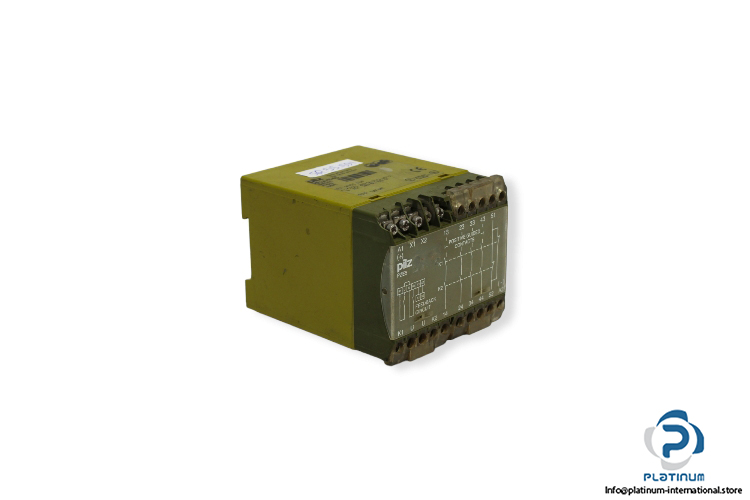

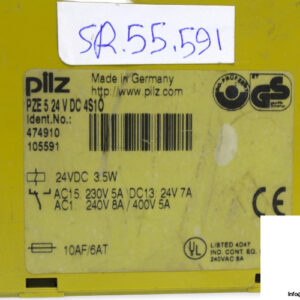

Pilz PZE5 24VDC 4S1O Expander Module

Manufacturer: PILZ

Type: Expander Module

Model: PZE5 24VDC 4S1O

Part No: 474910105591

Supply voltage: 24 V DC

Power consumption: 3.5 W

Contact Fuse Protection: 6 A quick

Frequency: 50 … 60 Hz

Relay outputs:

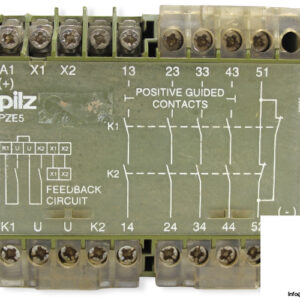

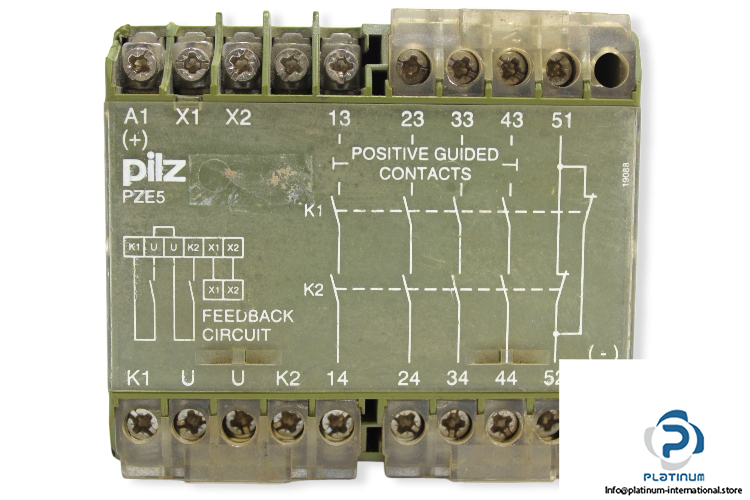

Contact: 4 safety contacts (N/O), 1 auxiliary contact (N/C)

AC1: 240 V/8 A /400 V/5 A

AC15: 230 V/5 A

DC13: 24 V/ 7 A

Protection

Mounting: IP 54, Housing: IP 40, Terminal Range: IP 20

Ambient Temperature: -10 … +55 °C

Dimensions: 87 x 90 x 110 mm
