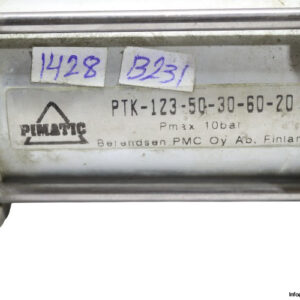

Pimatic PTK-123-50-30-60-20 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The Pimatic PTK-123-50-30-60-20 ISO Cylinder is a square-shaped, double-acting pneumatic actuator featuring a 50 x 60 mm bore and stroke, 10 bar max pressure, and G 1/4 connection for industrial automation use.1/45060ActingActuatorAirAutomationboreCompressedconnectionCylinderDoubleframeGIndustrialISOmmOnePimaticPneumaticPTK-123-50-30-60-20RODsideSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

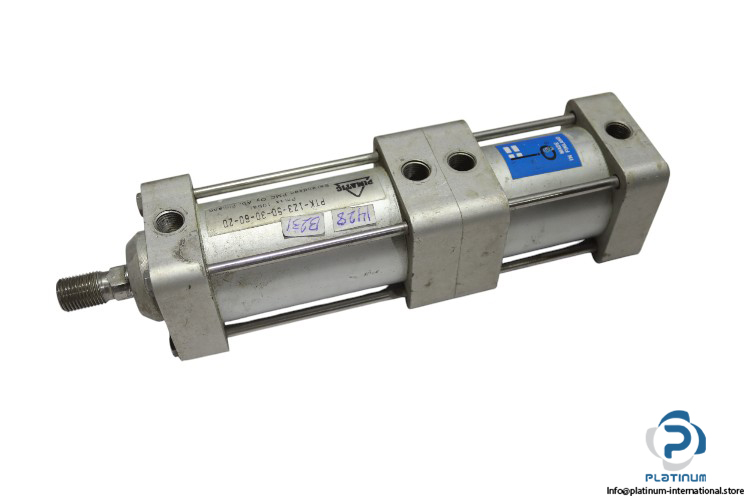

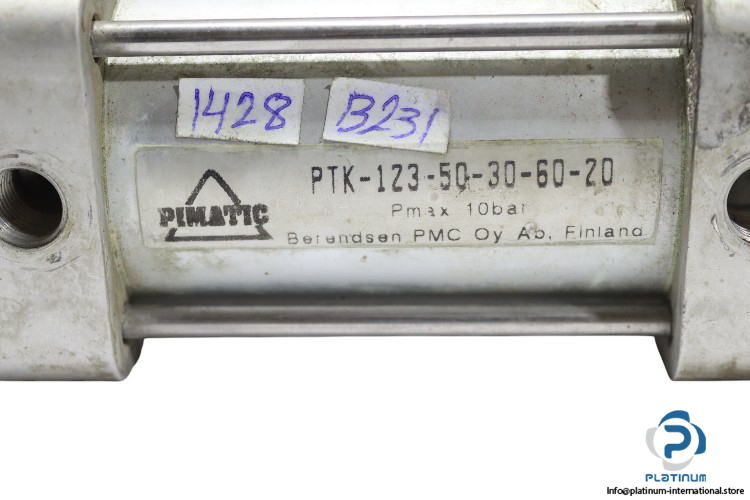

Pimatic PTK-123-50-30-60-20 ISO Cylinder
The Pimatic PTK12350306020 ISO Cylinder is a robust pneumatic actuator built for high-performance industrial operations. Designed with a square shape and one-sided rod direction, this double-acting cylinder provides reliable motion using compressed air up to 10 bar pressure.
Manufacturer: PIMATIC
Type: ISO Cylinder
Model: PTK-123-50-30-60-20
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 60 mm |
| Bore x Stroke | 50 x 60 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 64 x 245 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
