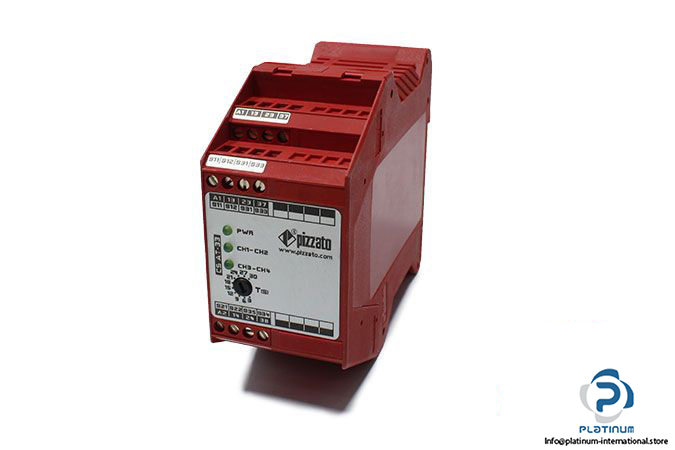

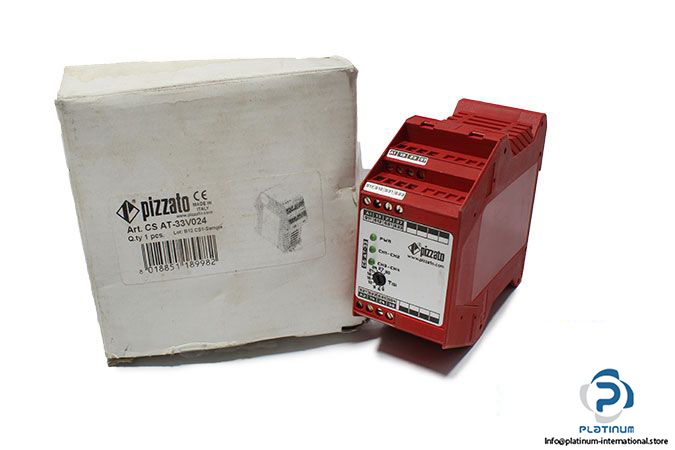

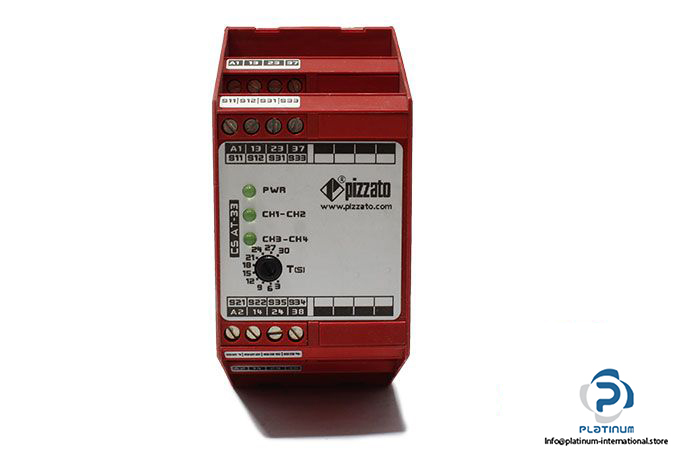

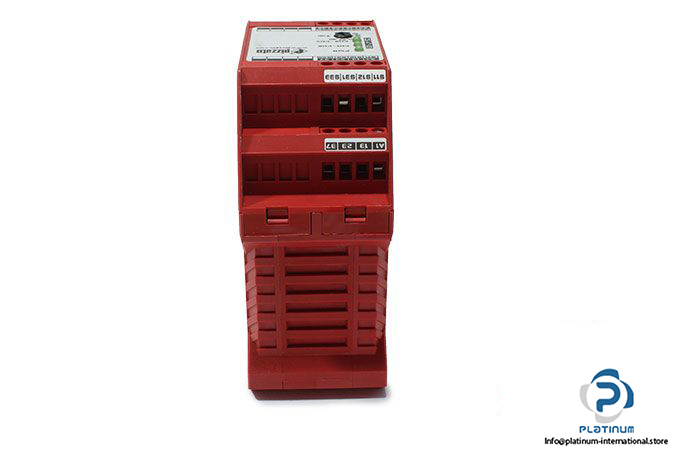

Pizzato CS AT-33V024 Safety Module

Manufacturer: PIZZATO

Type: Safety Module

Model: CS AT-33V024

Rated Impulse Withstand Voltage: 4 KV

Rated Insulation Voltage: 250 V

Rated Supply Voltage: 24 V AC/DC

Power Consumption AC /DC: < 10 VA / < 5W
Response Time: < 120 ms

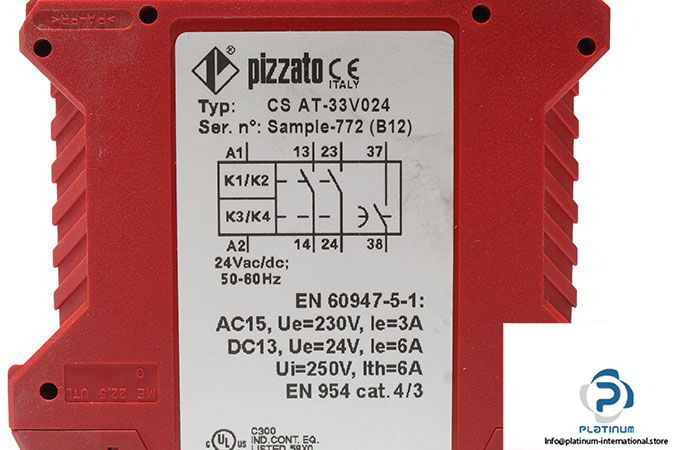

Output Contacts: 2 instantaneous NO safety contacts, 1 delayed NO safety contact

Contacts Type: forcibly guided

Material of the Contacts: gold-plated silver alloy

Max. Switching Voltage: 230 / 240 VAC, 300 VDC

Max. Current Per Contact: 6 A

External Protection Fuse: 4 A

Release Time: < 15 ms
Ambient Temperature: -25 … 55 °C

Protection Degree Housing / terminal: IP40  / IP20

Dimensions: 54 X 112 X 99 mm

Weight: 0.28 Kg
