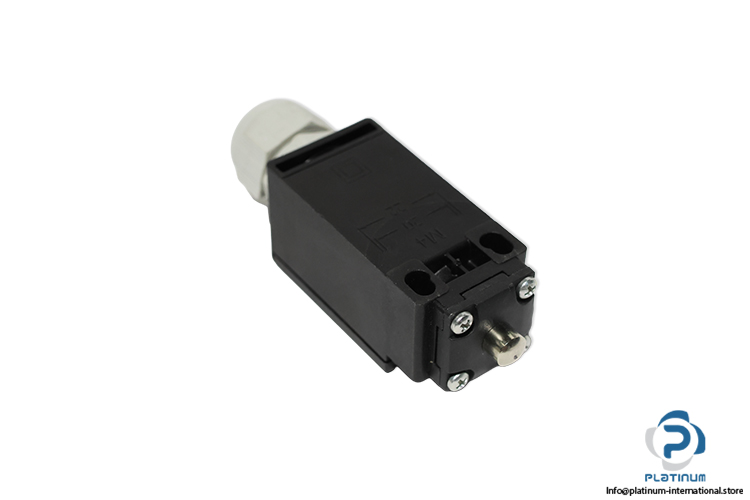

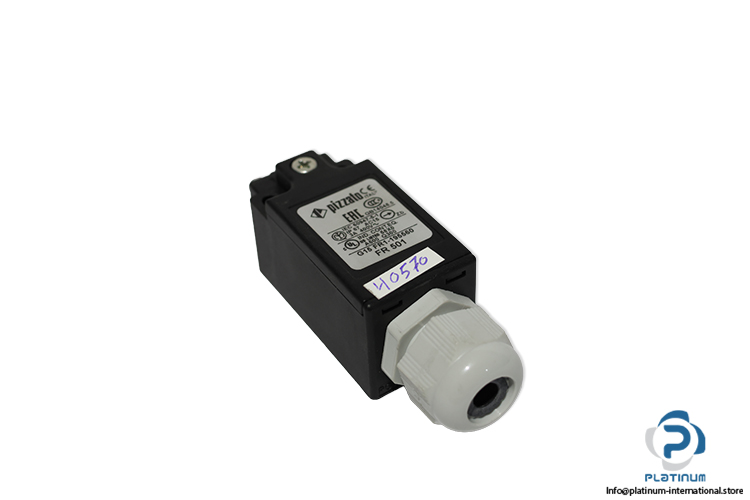

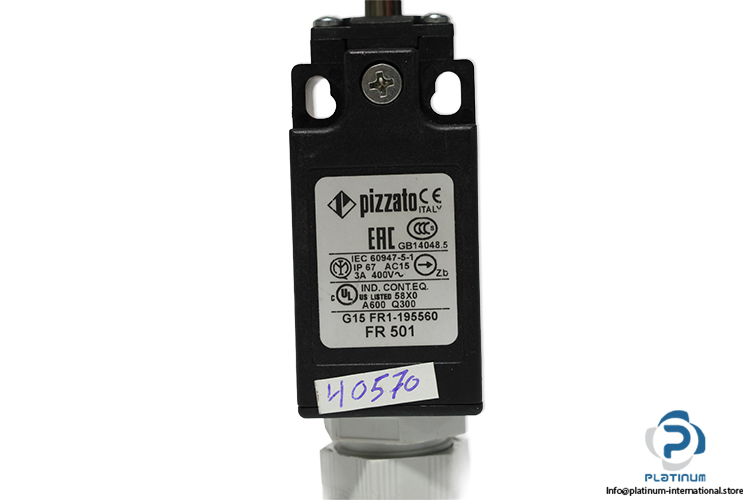

Pizzato FR 501 PIN Plunger Limit Switch
New
In stock1 unitReady to ship
Limit Switch The Pizzato FR 501 is an industrial limit switch with 1NO+1NC snap-action contacts, pin plunger actuator, and IP65 protection.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Alternative Model | G15 FR1-195560 |
| Series | FR |
| Rated Voltage | 400 V AC |
| Rated Current | 3 A |
| Rated Insulation Voltage Ui | 500 V AC |
| Rated Thermal Current Ith | 10 A |
| Frequency | 50 … 60 Hz |
| Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) Snap Action (B5) |
| Material | Technopolymer |
| Actuator Type | Pin Plunger (8mm Diameter) |
| Protection Class | IP65 |
| Temperature | -25 … 80 °C |
| Dimensions | 259.5 x 30.8 x 30.8 mm |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1104214 |
| Weight | 0,07 |
