Pizzato FD 518 Position Switch
New
In stock12 unitsReady to ship

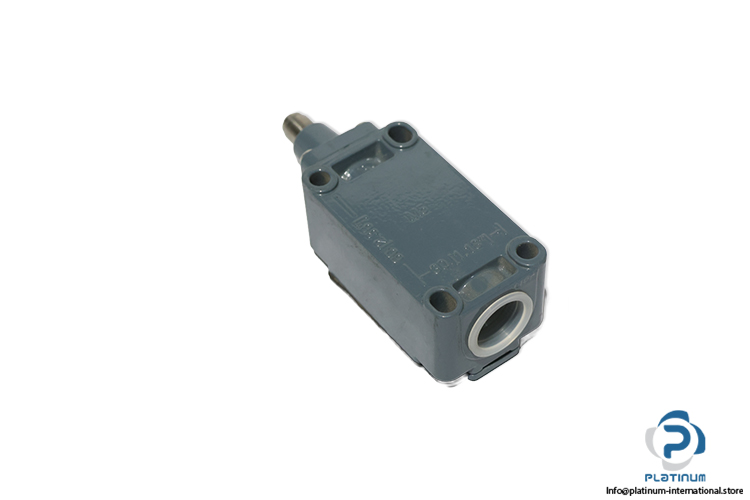

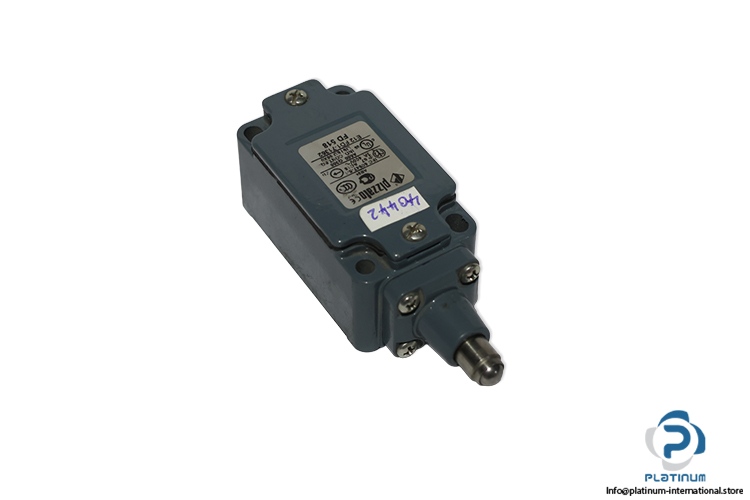

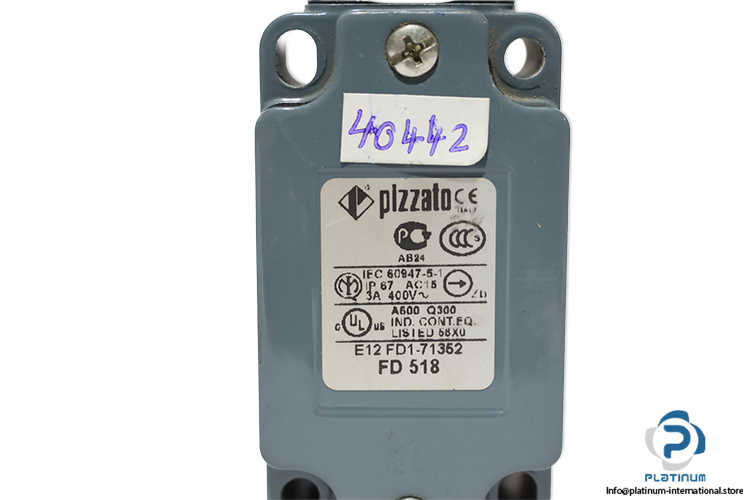

Pizzato FD518 position switch with rolling ball piston plunger, 1 NO + 1 NC snap-action contacts, 400 V AC switching voltage, metal housing, and IP67 protection.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | E12 FD1-71352 |
| Series | FD |
| Contact block | 1 Normally Open, 1 Normally Close |
| Contact operation | snap action (B5) |
| Switching Voltage AC15 | 400 V AC |
| Switching Current AC15 | 3 A |
| Head | With rolling ball piston plunger |
| Connection | connecter M20x1.5 |
| Housing | Metal housing, one threaded PG 13,5 conduit entry |
| Degree Of Protection | IP67 |
| Operating Temperature | -25 / 80 °C |
| Standard | IEC 60947-5-1 |
| Dimension | 116.3 x 40 x 36.5 mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1105041 |
| Weight | 0,22 |
