Pizzato NG 2D7D412V-S1000 Safety Lock Switch
New
In stock1 unitReady to ship
Safety Lock Switch
PIZZATO NG2D7D412V-S1000 NG series safety lock switch with 24 V DC PNP outputs, IP67 metal housing, 19-pole connector, and locked actuator with de-energised solenoid.24vdcGuardingHousingIndustrialInterlockIP67LockMachineMetalNGNG2D7D412VOutputPizzatoPNPS1000SafetySeriesSwitch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

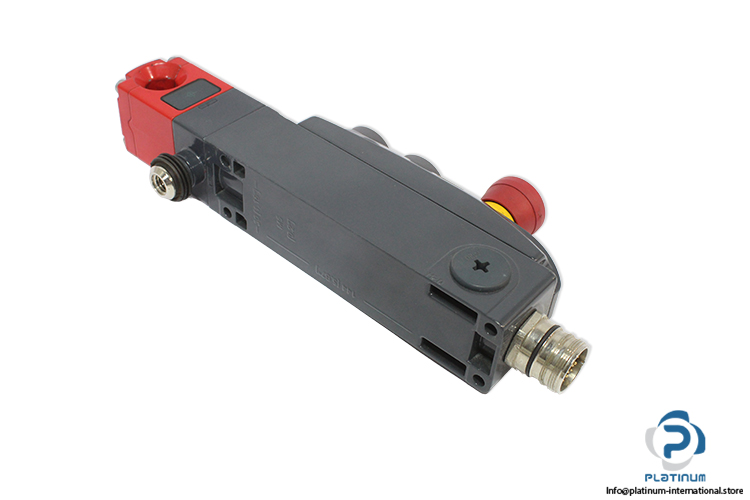

PIZZATO NG2D7D412V-S1000 Safety Lock Switch

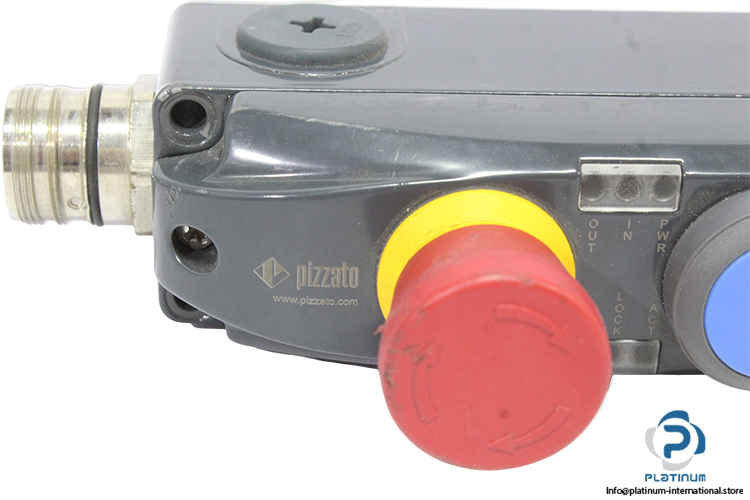

The PIZZATO NG2D7D412V-S1000 safety lock switch from the NG series is a robust safety interlock device designed for machine guarding applications. It operates with a locked actuator and de-energised solenoid principle, ensuring secure access control and enhanced operator safety. The unit includes a sealable auxiliary release device and an escape release button for controlled manual override.
Manufacturer: PIZZATO
Type: Safety Lock Switch

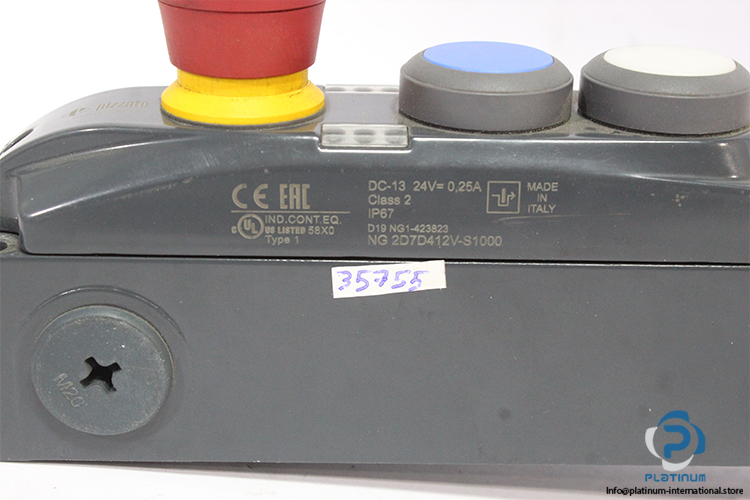

Model: NG2D7D412V-S1000
Part No.: D19 NG1-423823
Code: 423823
Series: NG Series
Inputs And Outputs:
2 safety inputs IS1, IS2
| Operating Principle | Locked actuator with de-energised solenoid. With sealable auxiliary release device and escape release button. |
| 2 safety outputs OS1, OS2 1 signalling output O3 | actuator inserted |
| 1 signalling output O4 | actuator locked |
| I4 or IE1 / IE2 inputs for solenoid activation 1 input I3 | actuator programming / reset |
| Activation Of OS Outputs Mode 1 | Safety outputs OS1 and OS2 active with inserted and locked actuator |
| Switching Output Type | PNP |
| Switching Output Voltage | 24 V DC |
| Switching Output Current | 25 mA |

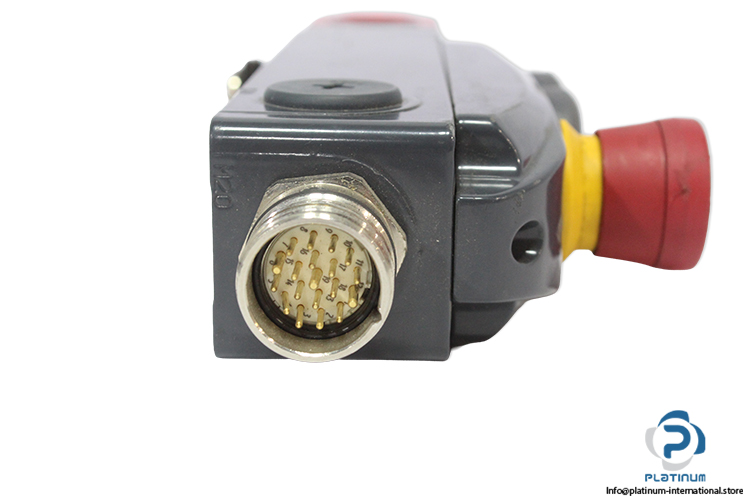

| Connection | Pre-Installed Metal Connector, 19-Pole |
| Housing Material | Metal |
| Protection Class | IP67 |
| Class | 2 |
| Ambient Temperature | -20 / 50 °C |
