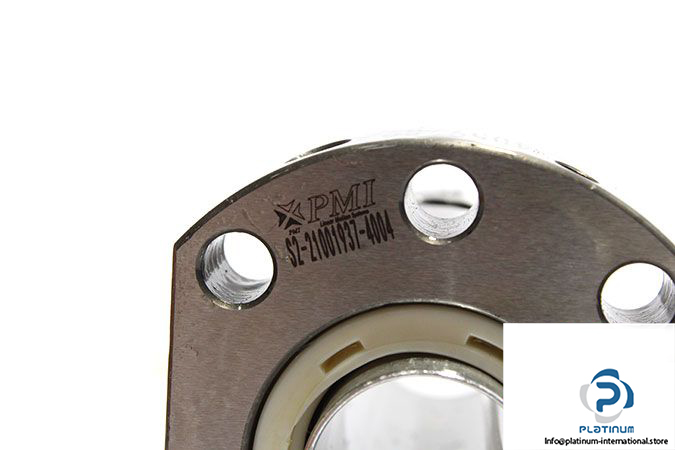

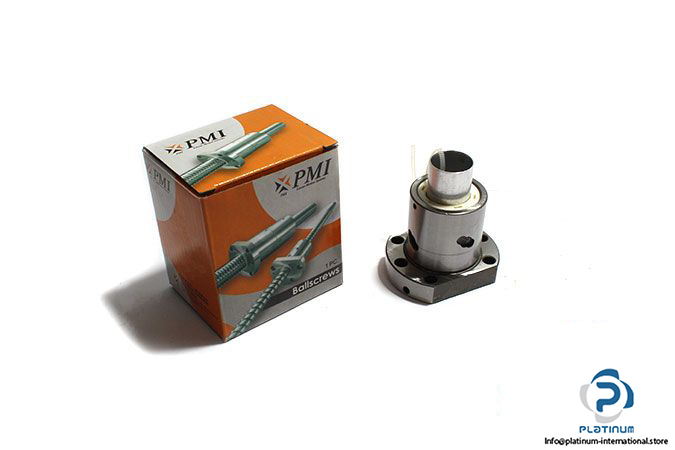

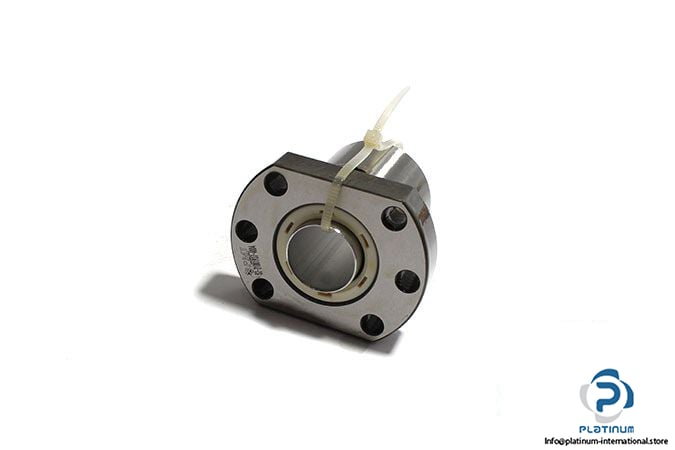

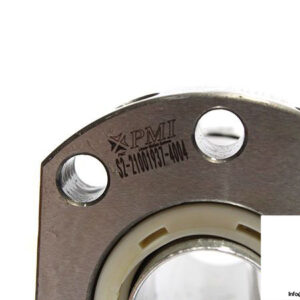

PMI FSIN2505B-4.0P Flanged Single NUT

Manufacturer: PMI

Type: Rolled BallScrews

Model: FSIN 2505B-4.0P

MRN: 4059289

Size: 25 x 5 x 4

Nominal Diameter d₀: 25 mm

Lead: 5 mm

Number of ball track turns: 4

Ball Diameter: 3.175 mm

Dynamic Load Capacity: 1700 kgf

Static Load Capacity: 2420 kgf

Stiffness: 37 kgf/μm

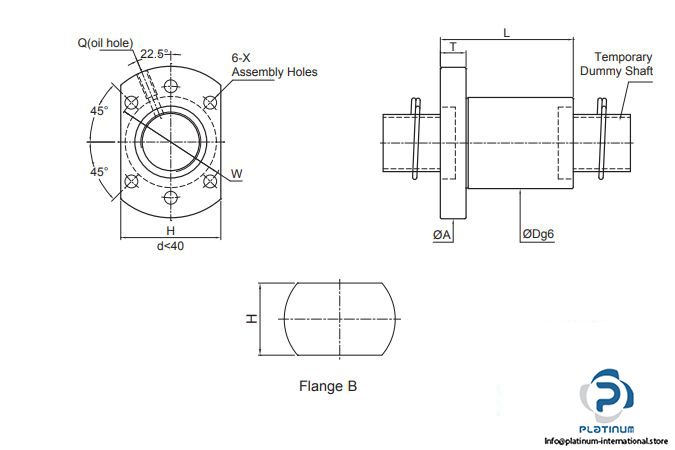

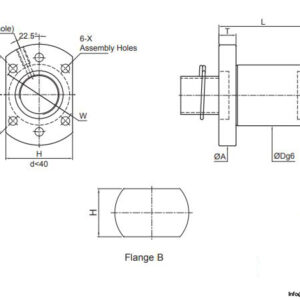

Dimensions:

Outer Diameter D: 40 mm

Length L: 50 mm

Flange Outer Diameter A: 62 mm

H: 48 mm

T: 12 mm

Weight: 0.4 kg
