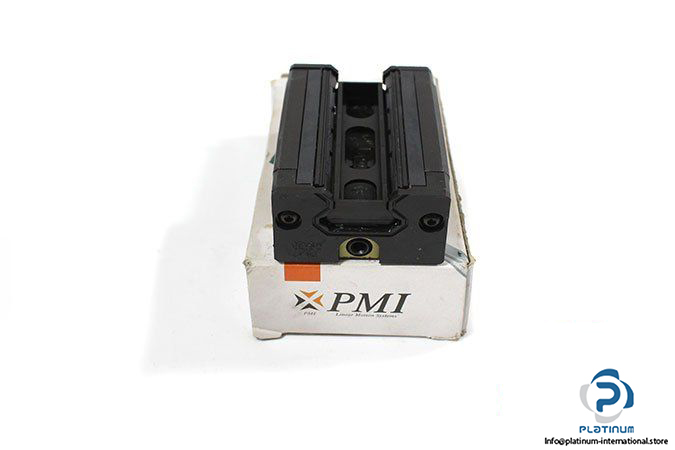

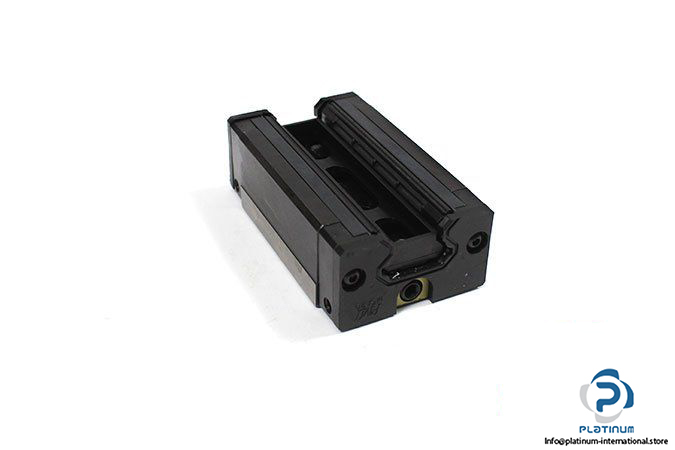

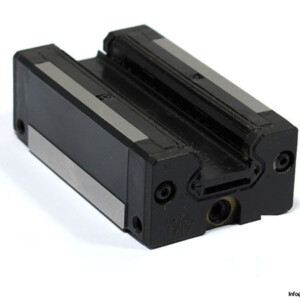

PMI MSA20S Linear Guideway Block

Manufacturer: PMI

Type: LINEAR GUIDEWAY BLOCK

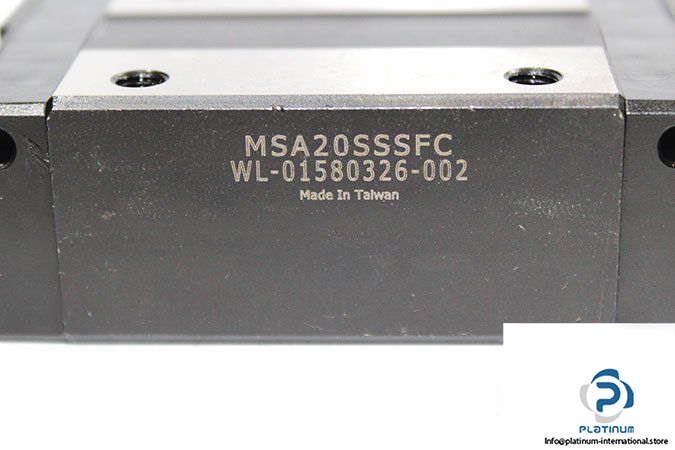

Model: MSA20SSSFC

Size: 20

Block Type: Square

Load Type: Heavy Load

Preload: FC

Basic Load Ratings:

Dynamic C: 19.2 kN

Static C₀: 29.5 kN

Static Moment Rating About:

X axis M_R: 0.29 kN-m

Y axis M_Y: 0.23 kN-m

Z axis M_P: 0.23 kN-m

Dimensions:

Height system H: 30 mm

Width carriage W: 44 mm

Overall length carriage L: 72.9 mm

B: 32 mm

C: 36 mm

Weight: 0.36 kg
