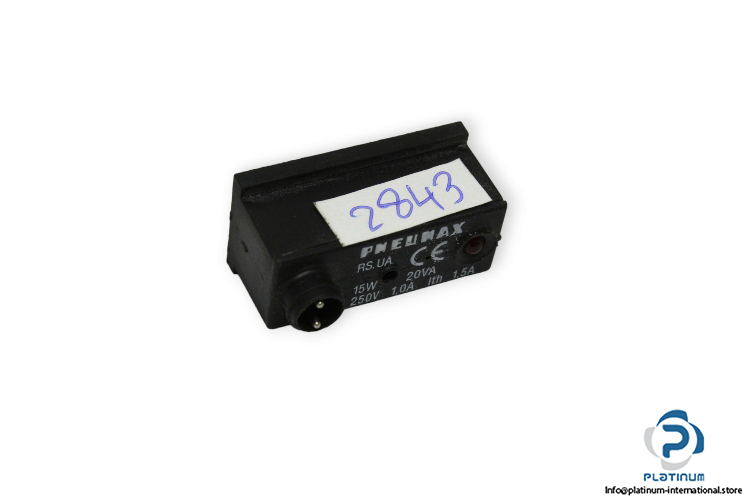

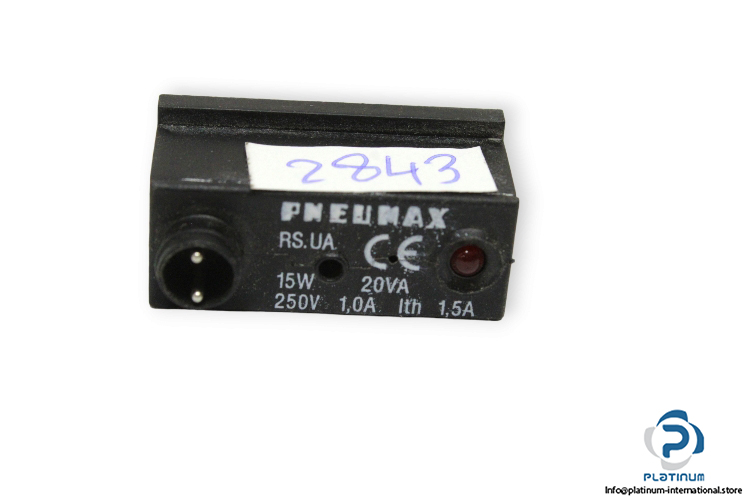

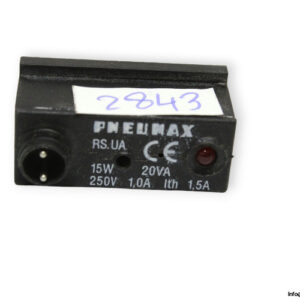

Pneumax Rs.ua Magnetic Cylinder Switch Sensor
Manufacturer: Pneumax
Type: Magnetic Cylinder Switch sensor / universal sensor with led
Model: RS.UA
Voltage range: 250 V AC/12 … 48 V DC
Maximum current: 1 A
Maximum permanent power: 20 VA/15 W
Thermal current Ith: 1.5 A
Contact: normally open
Maximum voltage drop: <3 V
No. of pins: 2-PIN CONNECTOR
Cable section: 2×0,25 mm²
Connecting time: 2 ms
Disconnecting time: 1 ms
Working temperature: -20 … 70°C
Degree of protection: IP 65
Dimensions: 30 x 15.5 x 20.2 mm
