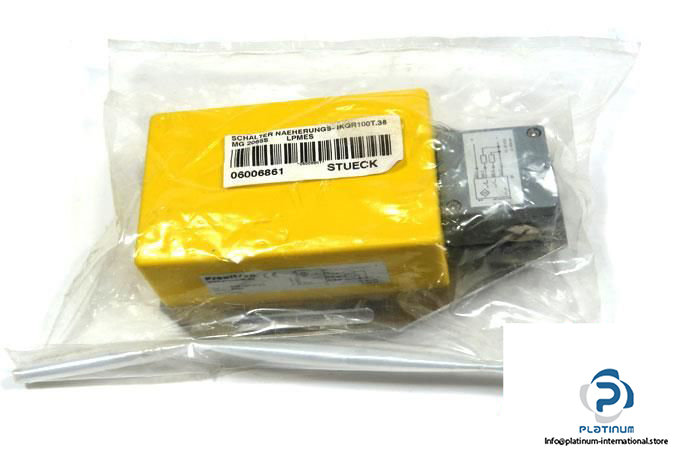

Proxitron Ikqr 100T.38 MG Inductive Proximity Switch

Manufacturer: PROXITRON

Type: INDUCTIVE PROXIMITY SWITCH

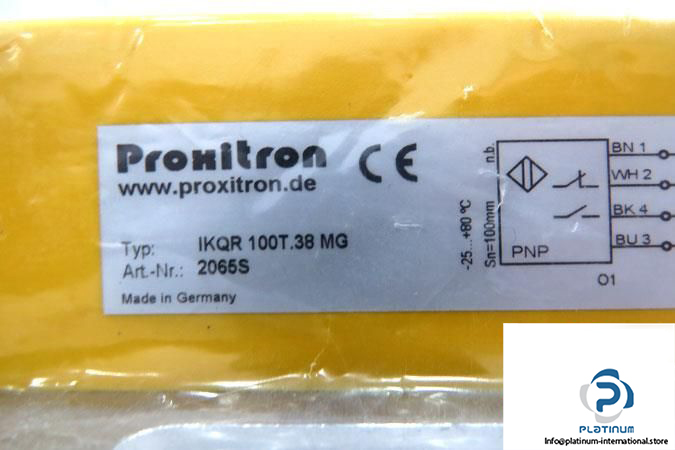

Model: IKQR 100T.38 MG

Art Nr.: 2065S

Sensing Range: 100 mm

Operating Voltage: 10 … 80 V DC

Switching frequency: 50 Hz

Load current max.: 0 … 400 mA DC

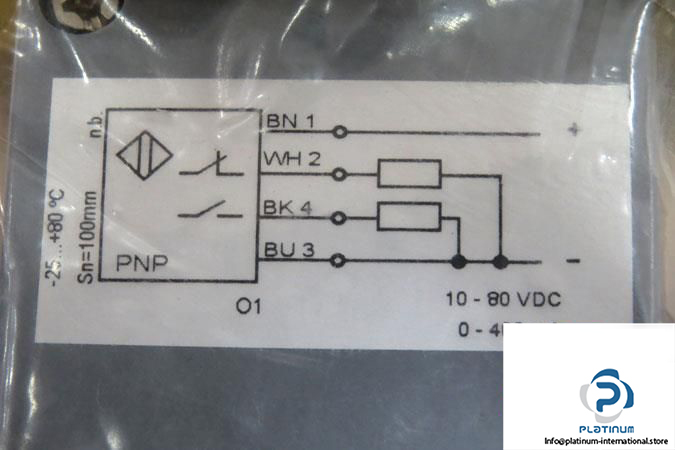

Electrical design: PNP

Output Function: Normally open/normally closed

Connector type: For M16 hose fitting with 5/16 “hose connection

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 100 X 50X 145 mm

Material: PBT

Mounting: non-flush mountable

Weight: 1.7 Kg
