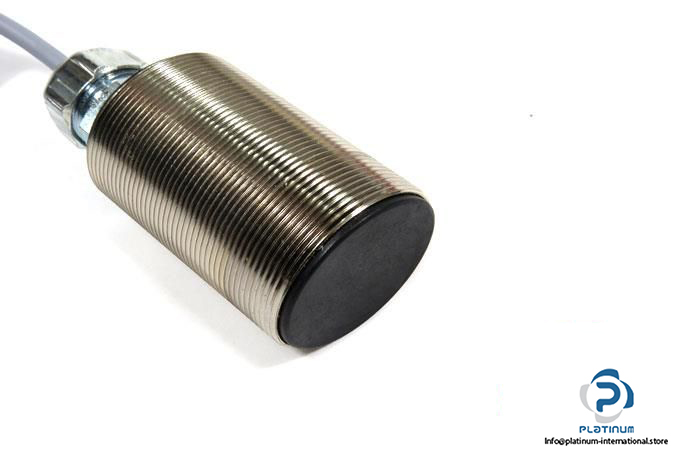

Proxitron IKZ 471.04 MG Inductive Proximity Switch

Manufacturer: PROXITRON

Type: INDUCTIVE PROXIMITY SWITCH

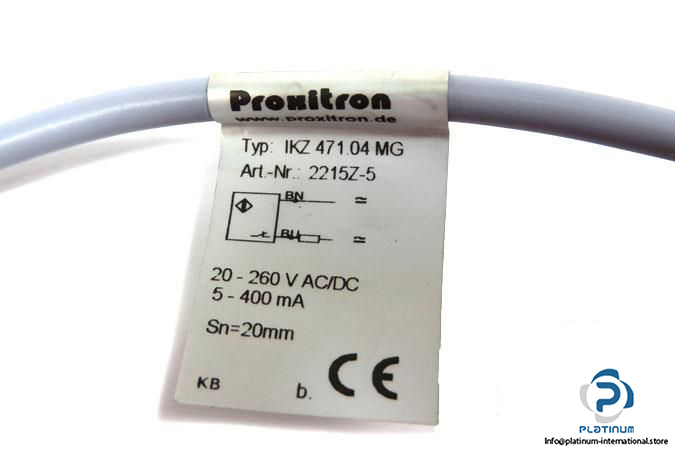

Model: IKZ 471.04 MG

Part No.: 2215Z-5

Sensing Range: 20 mm

Operating Voltage: 20 … 260 V AC/DC , AT 40 … 440 HZ for AC

Switching frequency (AC,DC): 20 , 100 Hz

Switching output current: 5 … 400 mA

Electrical design: PNP

Output Function: Normally closed

Connector type, length: Cable, 5 m

Protection Class: II

Enclosure rating: IP65

Housing: Threaded type

Ambient Operating temperature: -20 … 80°C

Diameter, Housing length: 46 ,70 mm

Material: Nickel-plated Brass

Mounting: Flush mountable

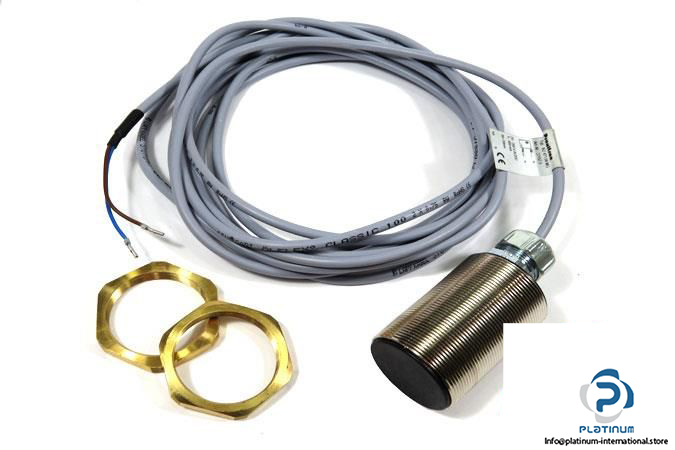

Supplied Accessories: 2 lock nuts

Condition: New
