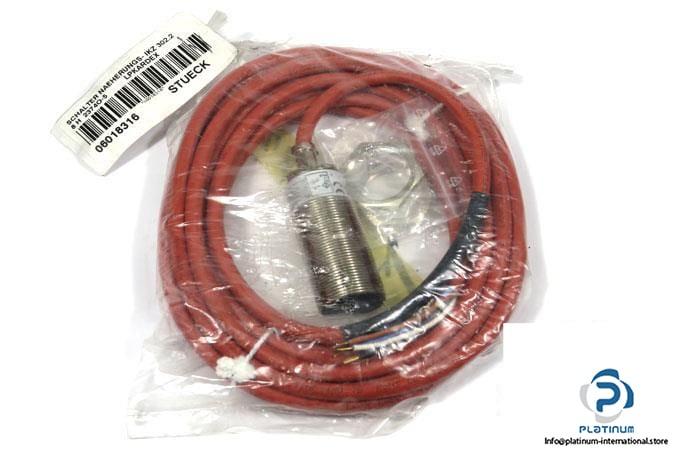

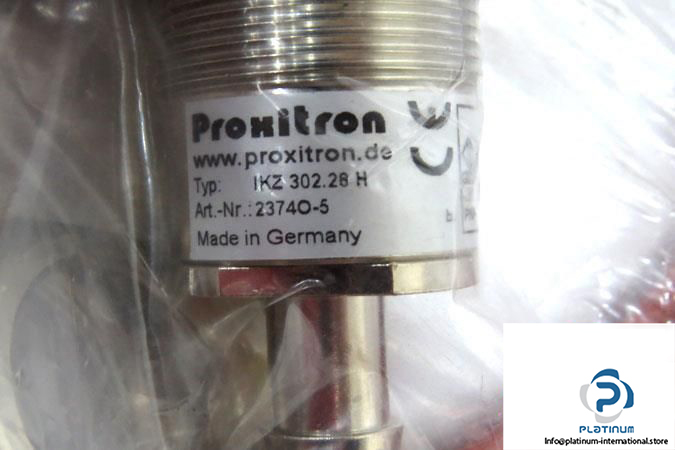

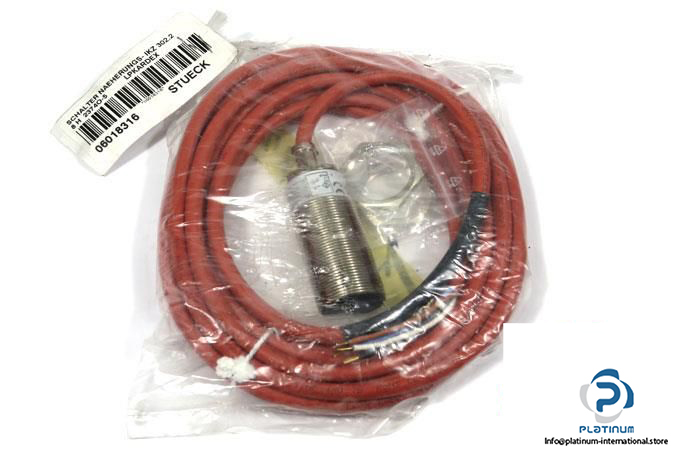

Proxitron IKZ 302.28 H Inductive Proximity Switch

Manufacturer: PROXITRON

Type: INDUCTIVE PROXIMITY SWITCH

Model: IKZ 302.28 H

Art No.: 2374O-5

Sensing Range: 10 mm

Operating Voltage: 10 … 30 V DC

Switching frequency: 300 Hz

Load current max.: 0 – 400 mA DC 70 °C

Electrical design: PNP

Output Function: Normally open/normally closed

Connector type, length: Silicon Cable, 5 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 120°C

Diameter, Housing length: 30, 73 mm

Material: Nickel-plated brass

Mounting: Flush mountable

Supplied Accessories:  2 lock nuts

Condition: New
