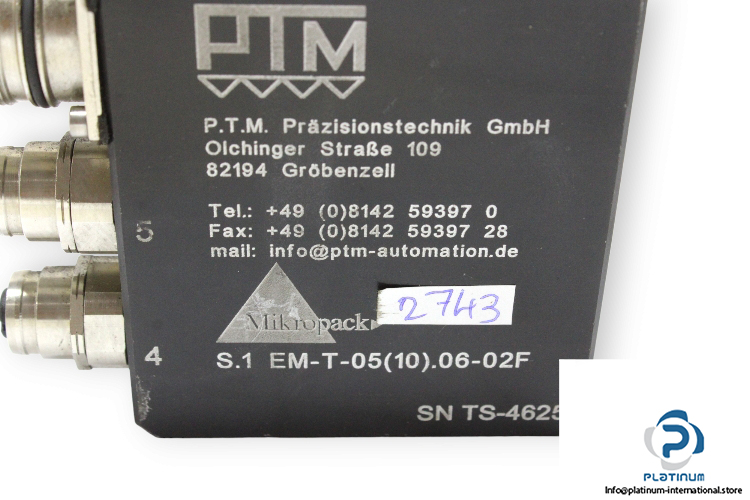

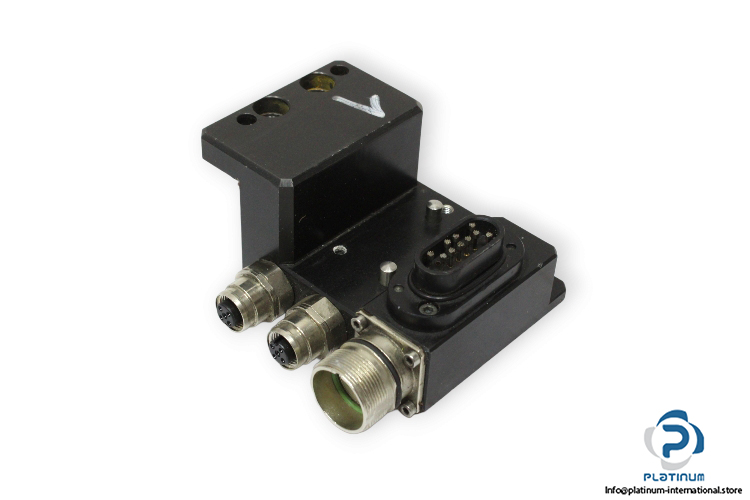

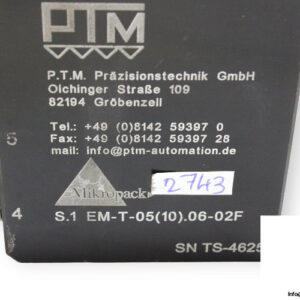

PTM S.1 EM-T-05(10).06-02F Fiber Optic Module

PTM S.1 EMT05(10).0602F FIBER OPTIC MODULE

The PTM S.1 EMT05(10).0602F Fiber Optic Module is designed for robotic and automation systems, enabling reliable power and signal transfer. With integrated fiber optic communication and robust probe connections, it ensures efficiency and safety in demanding industrial environments.

Manufacturer: PTM
Type: Fiber Optic Module
Model: S.1 EMT05(10).0602F
Code: SN TS-6470

Technical Information

• Collects 5 power lines from robot via spring loaded probes, 6A each
• Prepared for 5 additional signal lines for user applications
• Transfers fiber signals and provides them in 1m pigtailed fiber
• Two probes create tool presence signal via internal jumper
• Probes wired for safety switch parallel to the one on the Robot Side
