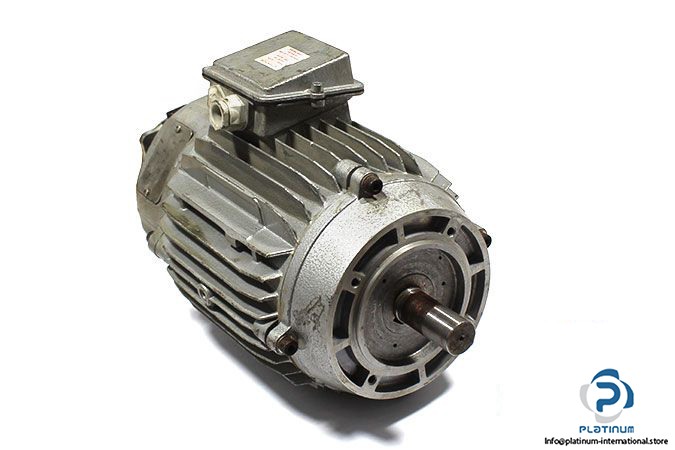

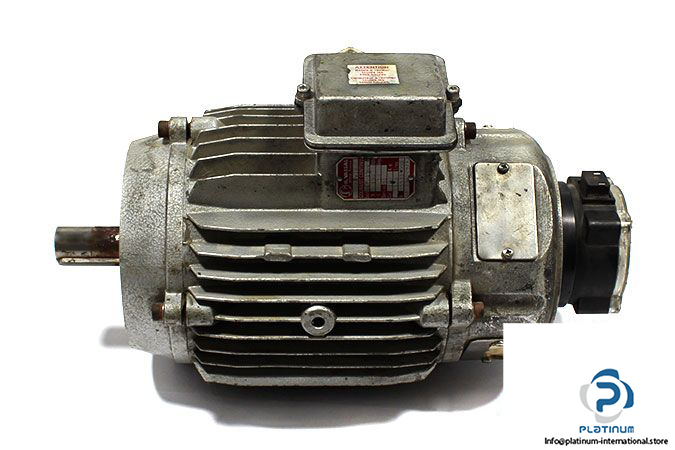

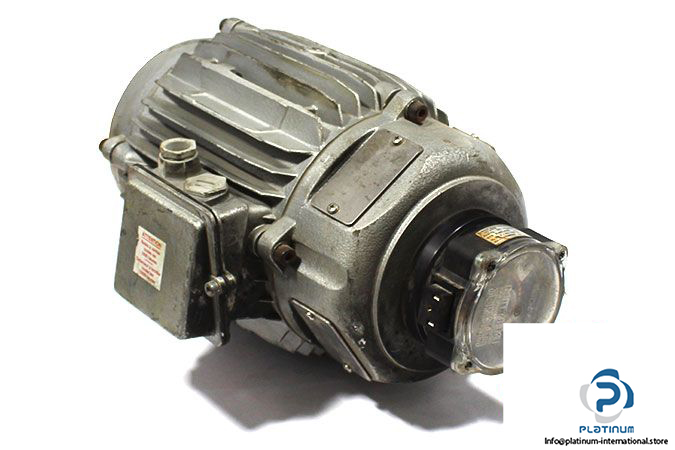

R.vassal SFUV10 Electric Motor

Manufacturer: R.VASSAL

Type: Electric Motor

Model: SFUV10

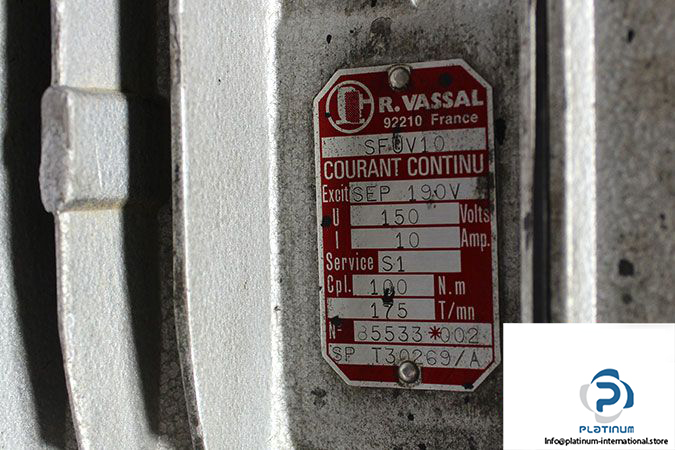

No: SP T30269/A

Excit: SEP 190V

Voltage: 150 V

Current: 10

Torque: 100 Nm

Duty: S1

Weight: 25.4 kg

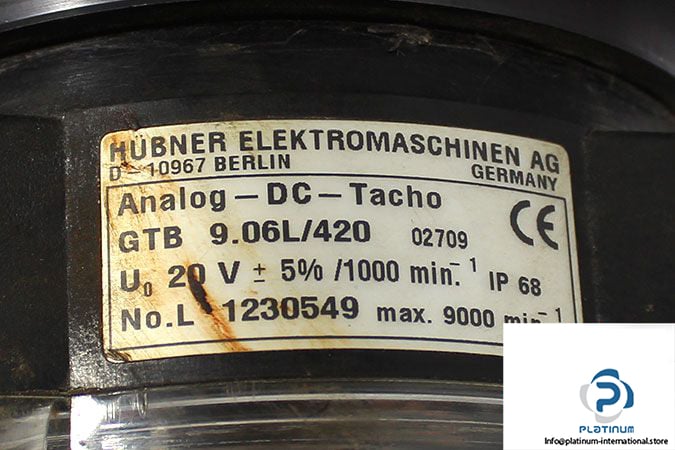

Attachment: HUBNER GTB 9.06L/420 DC TACHOGENERATOR

Manufacturer: HÜBNER BAÜMER Elektromaschinen

Type: DC Tachogenerator

Model: GTB 9.06L/420

No-Load Voltage: 20 mV/min^-1

Max. Speed: 9000 min^-1

Power: 0.3 W

Moment of Inertia: 0,95 kgcm²

Armature Inductance: 169 mH

Armature Resistance: 370 Ω

Temperature Range: -30…130 °C

Insulation Class: B

Protection Class: IP68
