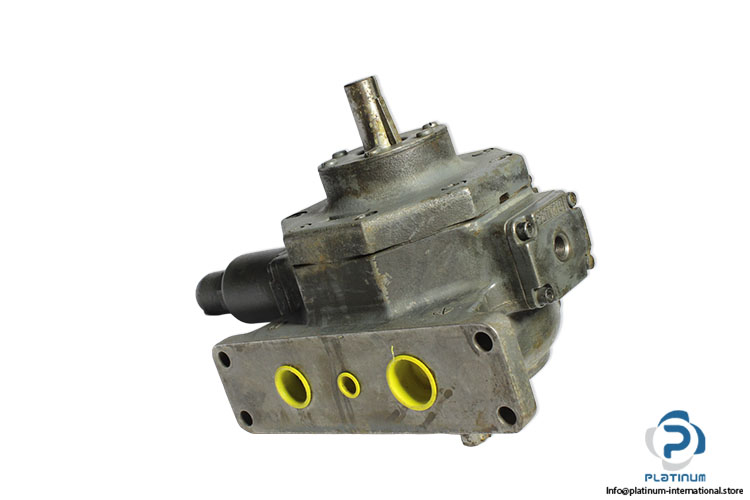

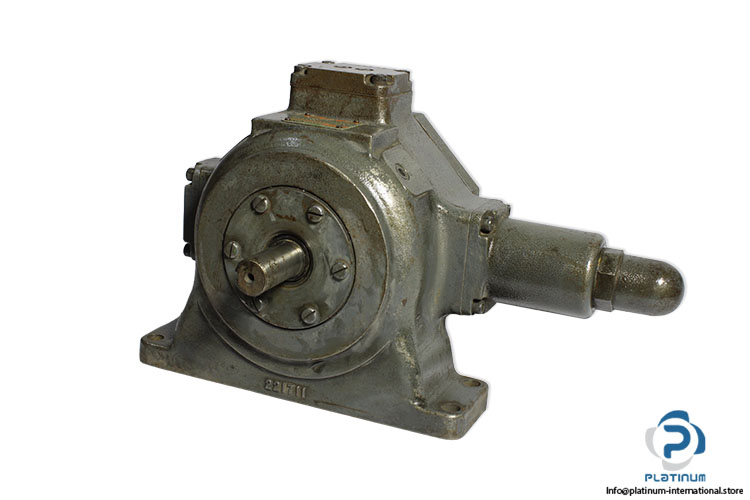

Racine PVT Psso 25CD 01 Vane Pump
Used
In stock1 unitReady to ship
Hydraulic Vane Pump The RACINE PVT PSSO 25CD 01 is a PVT Series hydraulic vane pump featuring 78 LPM flow at 1430 RPM, 54.5 cm³/rev displacement, and pressure compensator control for reliable industrial hydraulic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | PVT |

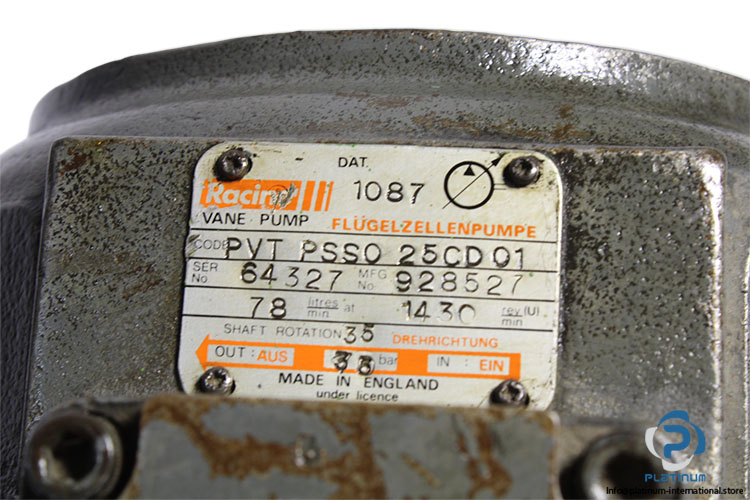

| MFG No | 928527 |
| SER no | 64327 |
| Fluid | oil |
| Size | 25 |
| Shaft Diameter | 25 mm |
| Shaft Design | Double-Ended Drive Shaft |
| Control Type | Standard Pressure Compensator |
| Mounting Style | Subplate Mounted |
| Volume Control | Screw Volume Control |
| Seals & Fluid | Buna-N Seals (Standard Mineral Hydraulic Oil) |
| Flow Rating AT 1430 RPM | 78 (LPM) |
| Operating Pressure,Continuous Rating | 500 PSI |
| Displacement | 54.5 cm³/rev |
| Operating Pressure | 35 bar |
| Direction of Rotation | Clockwise |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100272 |
| Weight | 37,75 |
