Raylase IPG Interface Module

Manufacturer: RAYLASE
Type: Interface Module
Model: IPG

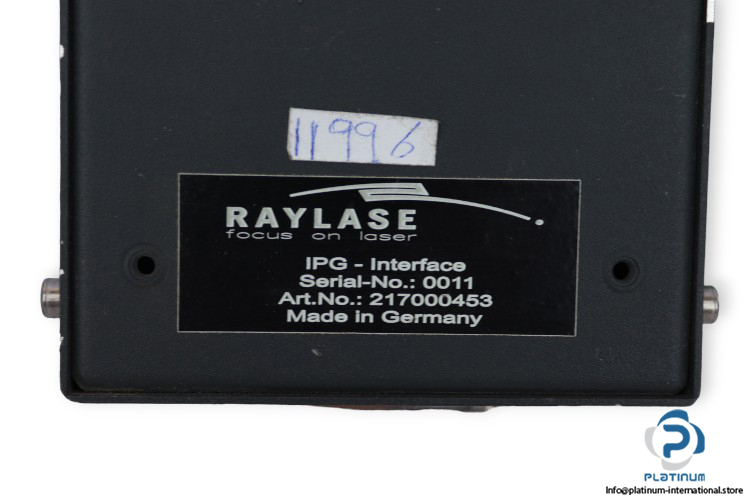

Art. No.: 217000453

Description: RAYLASE IPG Interface is Used to Control a Pulsed IPG Laser In Combination with RAYLASE Control Cards SP-ICE, RLC-PCI Or RLC-USB
Features:
– Interface to Ytterbium Pulsed IPG Fiber Lasers According to Interface Types B, B1, B2, D

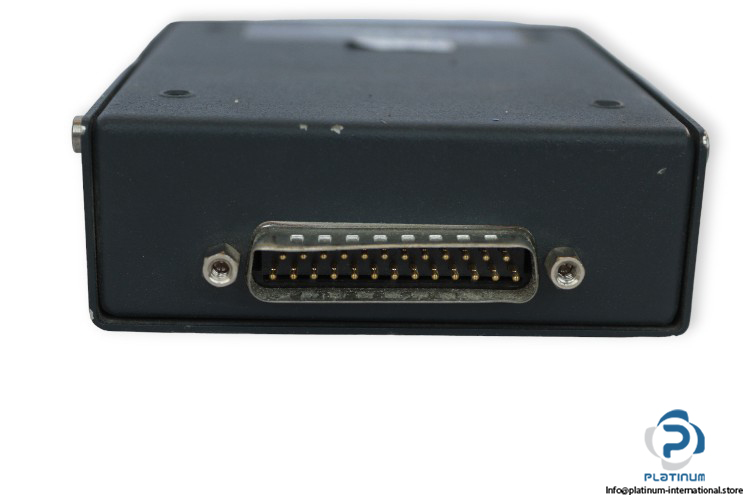

– D-SUB 25 Connector for 1:1 Connection to Pulsed IPG Laser
– Detection, if 24V Power Is Attached. Soft Start to Switch on the Laser.
– Optically Isolated Control Signals
– Detection of Laser Error Conditions
– Reset of Laser After Detection of Laser Error Either By Push-Button or Software
– Support of Integrated Visible Pointer
– Emergency Stop Input for Immediate Shut OFF of Laser Output

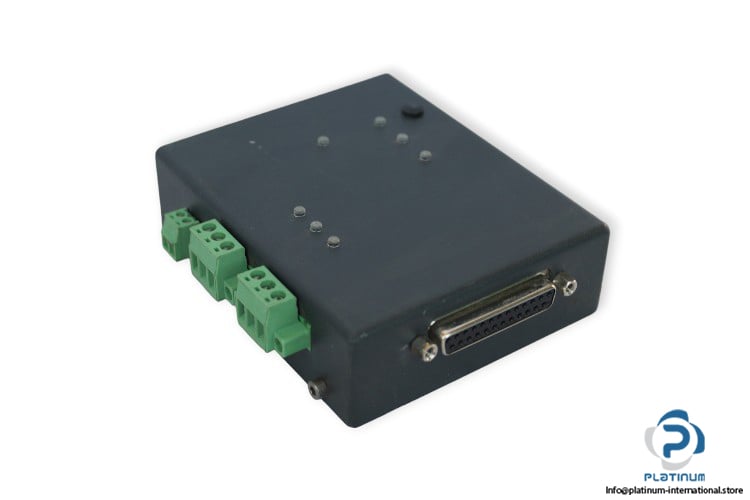

Connection: Pluggable – Screw clamp
Temperature: 15 … 35 °C
Dimensions: 30 x 85 x 103 mm
