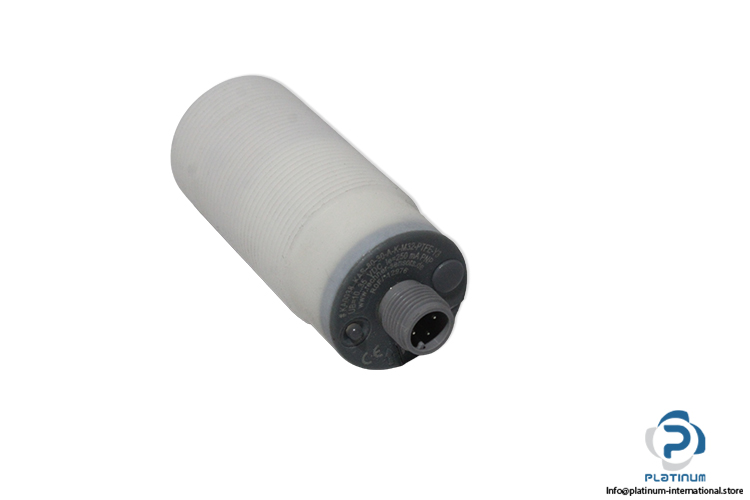

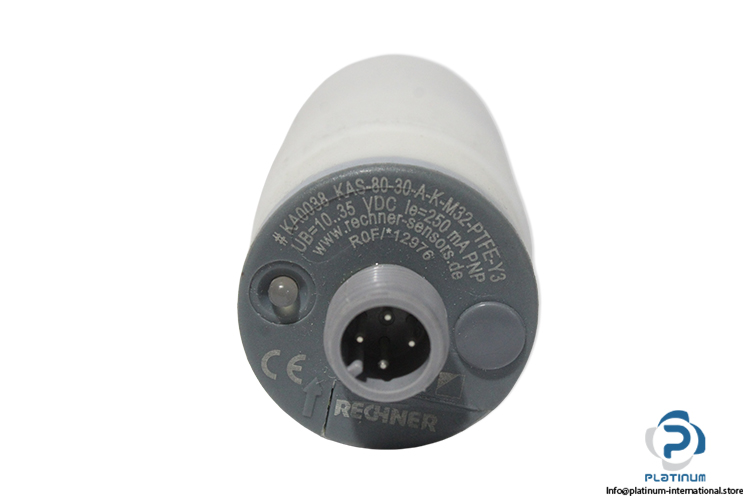

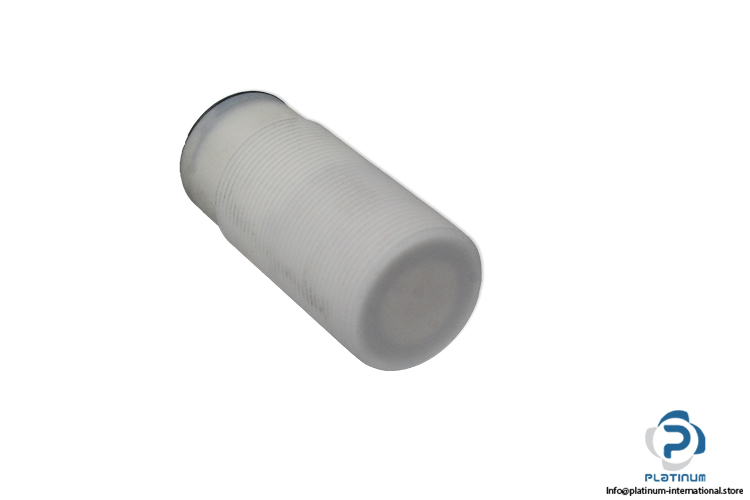

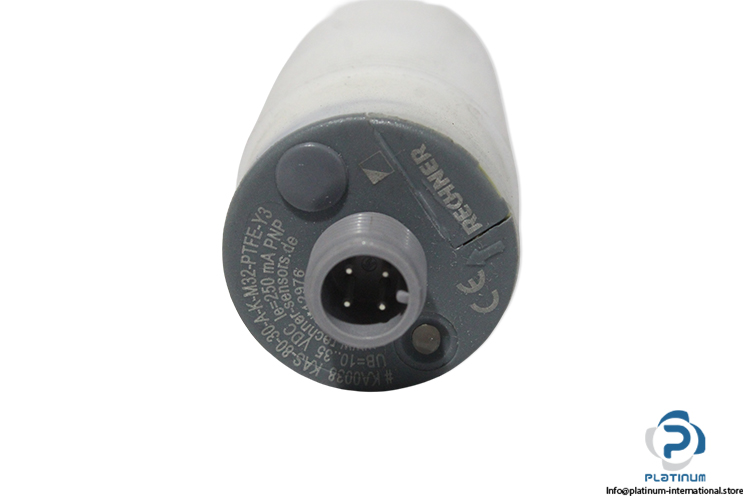

Rechner KAS-80-30-A-K-M32-PTFE-Y3 -2002958 Capacitive Sensor
New
In stock3 unitsReady to ship
Capacitive Sensor RECHNER SENSORS/RENA capacitive sensor with adjustable 0.5…30 mm sensing distance, PNP output, PTFE housing, and IP67 protection for reliable industrial detection applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | KA0038 |
| MNR | KAS-80-30-A-K-M32-PTFE-Y3 MLT |
| ART No | 2002958 |
| Code | 208653 , 080105-23-001 |
| Series | KAS80 |
| Operating distance Sn | 20 mm |
| Operating distance min. / max. | adjustable 0.5...30 mm |
| Electrical version | 4-wire DC |
| Electrical Design | PNP |
| Operating voltage (UB ) | 10...35 V DC |
| Output current max. (Ie ) | 2 x 250 mA |
| Voltage drop max. (Ud ) | 2.0 V |
| Permitted residual ripple max. | 10 % |
| No-load current (Io ) Typ. | 15 mA |
| frequency of operating cycles max. | 200 Hz |
| ambient temperature | -25...+70 °C |
| LED-display | Green / yellow Protective circuit Built-in |
| Degree of protection | IEC 60529 IP 67* Norm EN 60947-5-2 |
| Connection cable | 2 m, PVC, 4 x 0.50 mm² |
| Housing material | PTfE |
| Dimension | M32 X 1.5 ,LENGTH 70 MM |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101042 |
| Weight | 0,09 |
