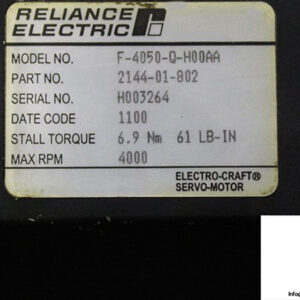

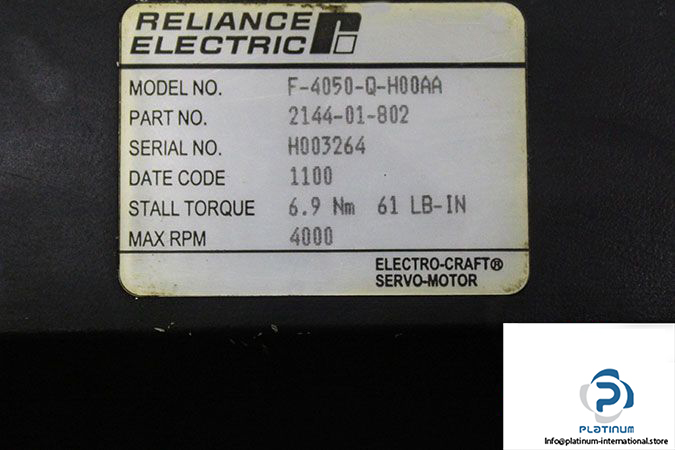

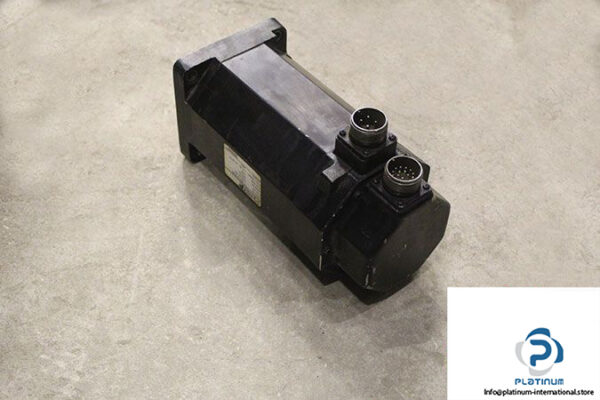

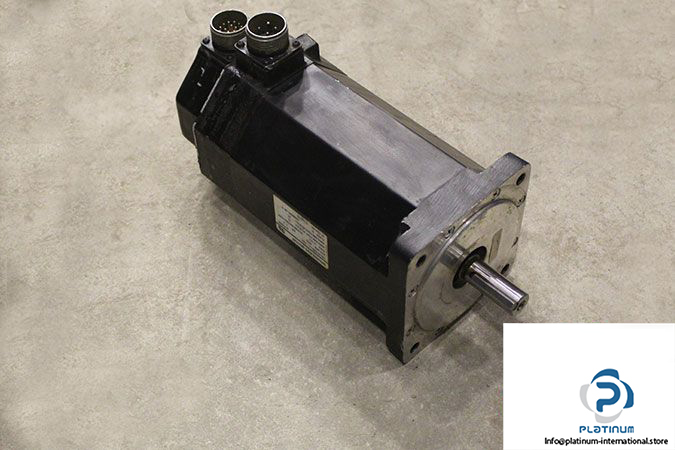

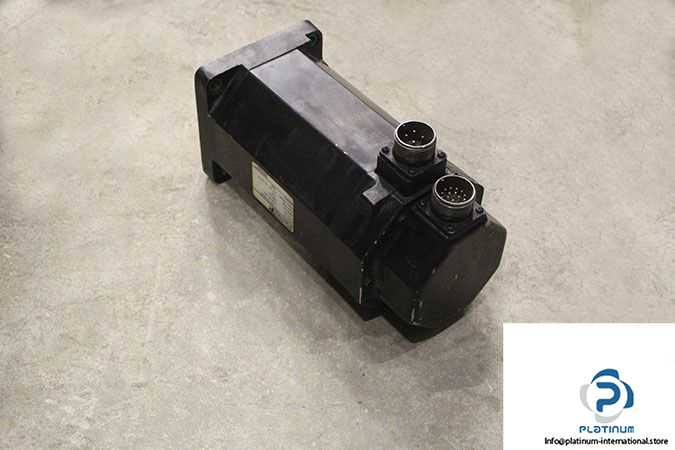

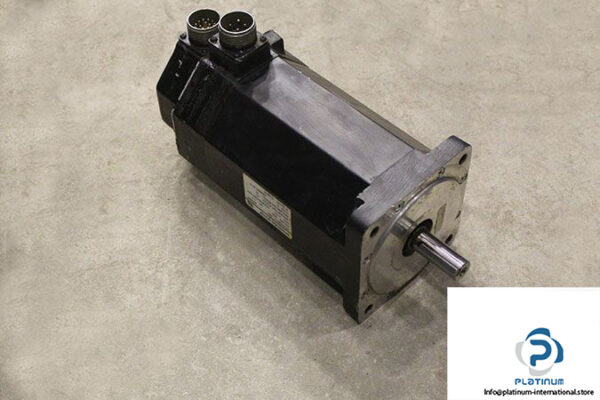

Reliance Electric F-4050-Q-H00AA Brushless Servo Motor

Manufacturer: Reliance Electric

Type: Brushless Servo Motors

Model: F-4050-Q-H00AA

Part No.: 2144-01-802

Serial No.: H003264

Rotor Moment of Inertia [kg-m²]: 0.0021

Damping [Nm/krpm]: 0.1

Friction Torque [Nm]: 0.11

Max Speed [rpm]: 4000

Sine Wave Torque Constant [Nm/A]: 0.54

Square Wave Torque Constant [Nm/A]: 0.6

Voltage Constant [V/krpm]: 66

Thermal Resistance [°C/Watt]: 0.48

Number of Poles: 8

Opening Temperature [°C]: 140

Weight [kg]: 14.115
