Rexnord Viva 130 Short Coupling Element
New
In stock1 unitReady to ship
250,00$
Short Coupling Element
REXNORD VIVA 130 short coupling element with 164 Nm torque capacity, 5100 rpm speed rating, CE marking, and EX explosion protection. Recommended for industrial motors and gearbox drive systems requiring compact and secure shaft connection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

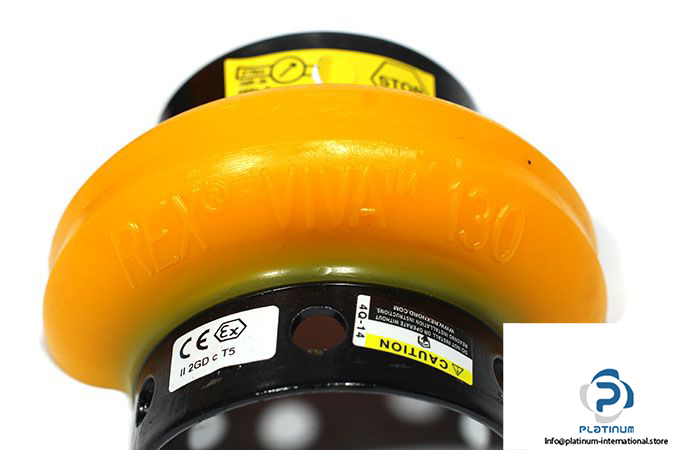

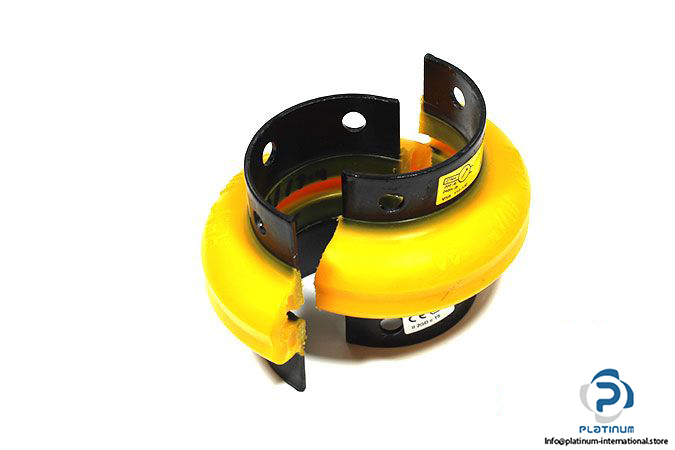

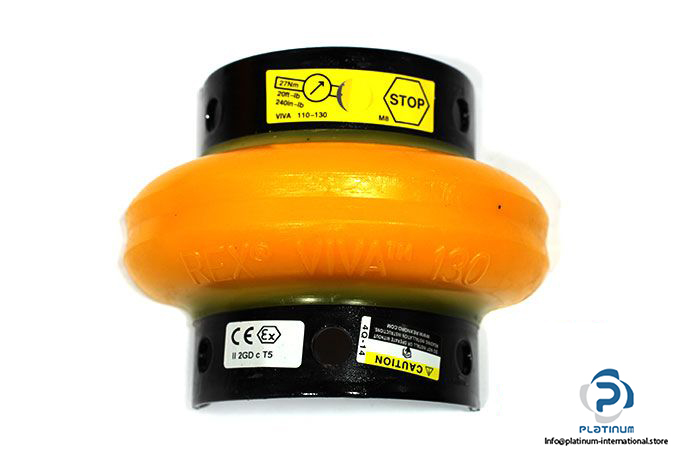

REXNORD VIVA 130 Short Coupling Element
The REXNORD VIVA 130 short coupling element is engineered for reliable torque transmission and precise shaft alignment in industrial drive systems. Designed for durability and performance, it supports high rotational speeds while maintaining mechanical stability.
Manufacturer: REXNORD
Type: Short Coupling Element
Model: VIVA 130
Suitable for industrial motors, gearboxes, and drive assemblies requiring secure torque transfer and compact installation.
Please contact us via Ask for assistance with any inquiries.
| Size | 130 |
| Torque | 164 Nm |
| Speed | 5100 rpm |
| Outer Diameter D1 | 55 mm |
| Outer Diameter D2 | 35 mm |
| Moment of Inertia (J) | 0,00310 kgm² |
| Dimension A | 130 mm |
| Dimension B | 97“142 mm |
| Dimension C1 | 7“55 mm |
| Dimension C2 | 35“55 mm |
| Length L1 | 41 mm |
| Length L2 | 25 mm |
| Dimension N | 80 mm |
| Marking | CE |
| Explosion Protection | EX |
