Rexnord Viva 150 Elastomer Coupling
New
In stock1 unitReady to ship
Close Coupled Element
Rexnord VIVA150 close coupled element, size 150, 250 Nm torque rating, 4,800 rpm speed, ATEX II 2GD c T5 certified for explosion-protected industrial drive systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

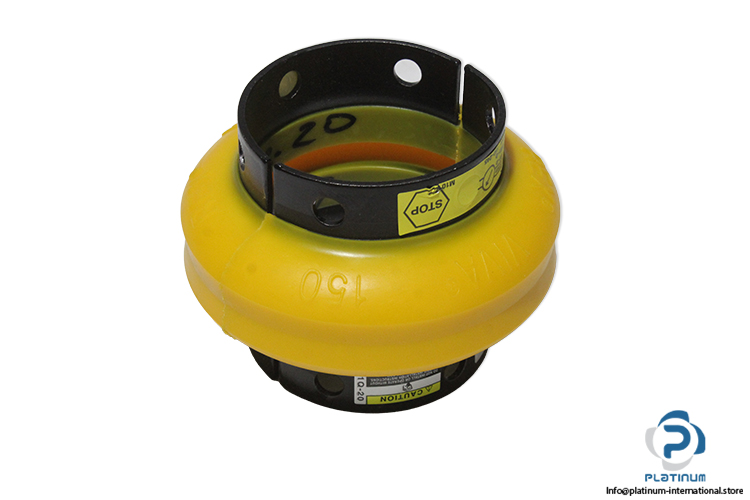

Rexnord VIVA150 Close Coupled Element
The Rexnord VIVA150 close coupled element is engineered for reliable torque transmission and vibration damping in industrial drive systems. Designed within the VIVA series, it provides dependable performance in demanding mechanical applications.
Manufacturer: Rexnord
Type: Close Coupled Element
Model: VIVA150
Series: VIVA
Part No.: 10312618
Legacy Part: 7392656
Order No.: 1481206 30
Customer Part: 7392656
Ideal for industrial drive systems requiring certified explosion protection and stable torque transmission performance.
| Size | 150 |
| Torque Rating | 250 Nm |
| Speed | 4,800 rpm |

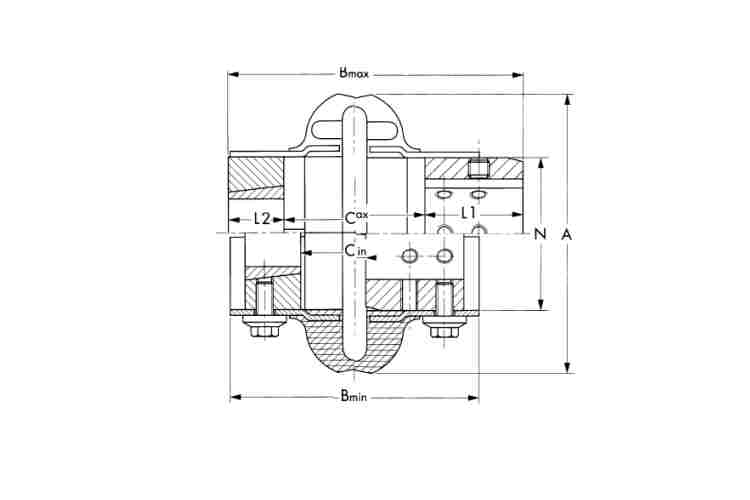

| Outer Diameter D1 | 65 mm |
| Outer Diameter D2 | 42 mm |
| Moment of Inertia (J) | 0,00900 kgm² |
| A | 150 mm |
| B | 111“156 mm |
| C1 | 9“60 mm |
| C2 | 54“66 mm |
| L1 | 51 mm |
| L2 | 25 mm |
| N | 95 mm |

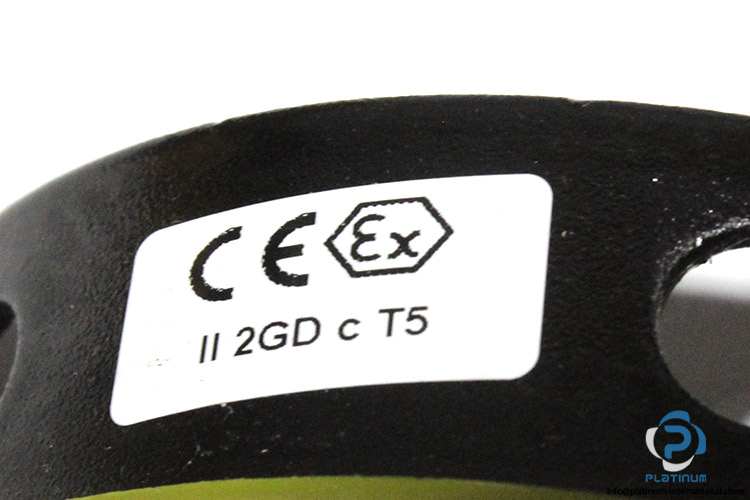

| ATEX Marking | II 2GD c T5 |
| Marking | CE |
| Explosion Protection | EX |
