Rexroth 0 822 010 864 Guide Compact Cylinder

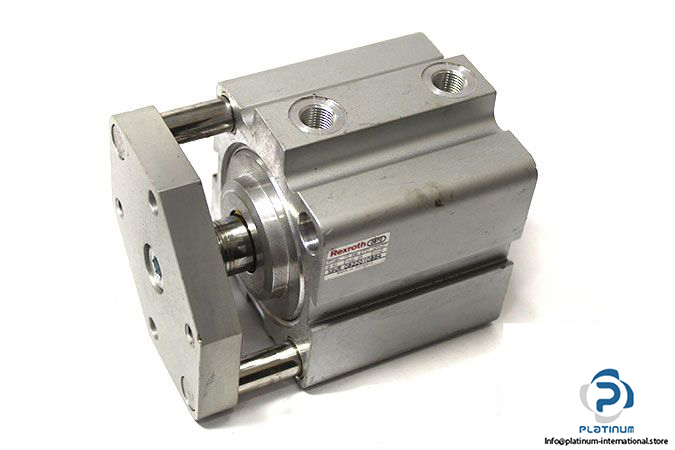

BOSCH REXROTH Compact Cylinder – Model: 0822010864

The BOSCH REXROTH Compact Cylinder (Model: 0822010864) is a reliable pneumatic component designed for double-acting operation. With a 50 mm bore size and a standard stroke of 25 mm, this compact cylinder operates on air and supports a maximum pressure of 10 bar. It features a pneumatic connection of 1/8 G, making it ideal for compact and space-sensitive applications.

Technical Specifications:

• Bore Size: 50 mm
• Standard Stroke: 25 mm
• Fluid: Air
• Maximum Operating Pressure: 10 bar
• Mode of Operation: Double-Acting
• Pneumatic Connection: 1/8 G

This compact cylinder is ideal for applications requiring precise control and reliable performance in environments where space is limited.
