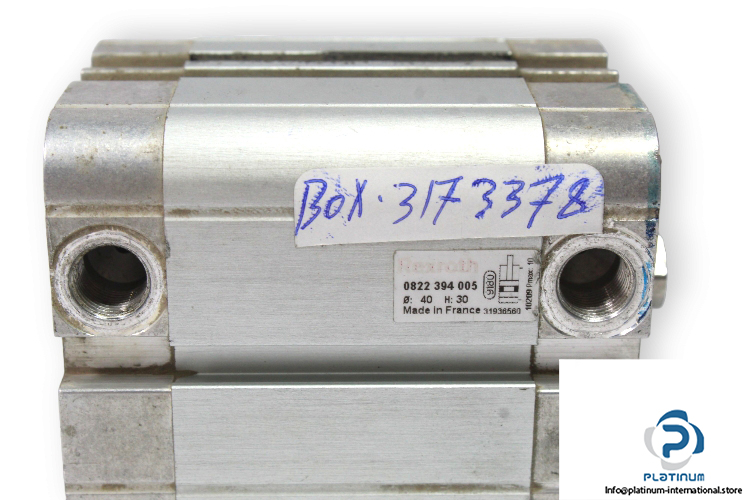

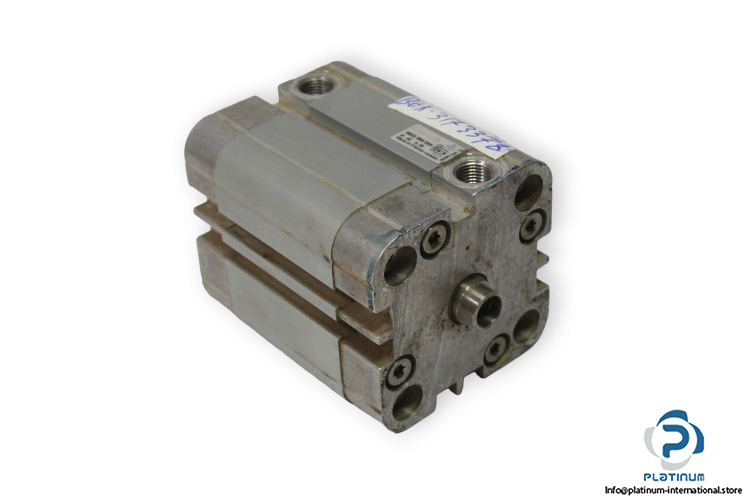

Rexroth 0 822 394 005 Compact Cylinder
Manufacturer: Bosch REXROTH
Type: Compact Cylinder
Model: 0822394005
Stroke Length: 30 mm
Piston Diameter: 40 mm
Piston rod thread: Female
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Max. particle size: 5 µm
Oil content of compressed air: 0 mg/m³ – 5 mg/m³
Pressure for determining piston forces: 6 bar
Materials:
Cylinder tube: Aluminum, anodized
Piston rod: Stainless steel
Pneumatic Connection: G1/8
Temperature: -20 … 80 °C
