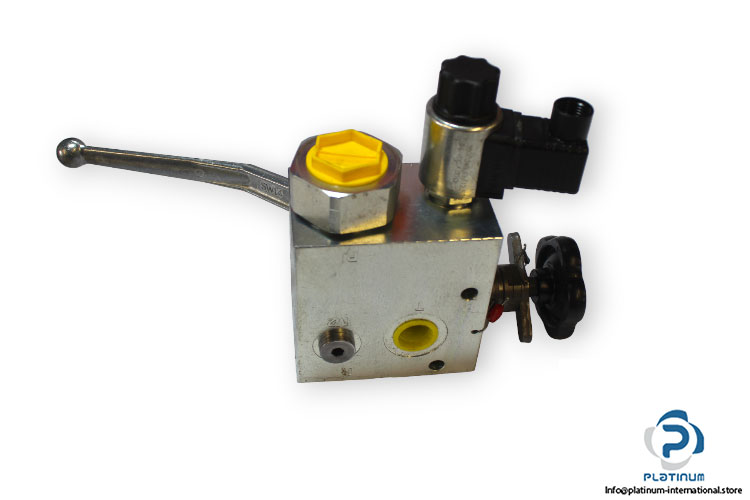

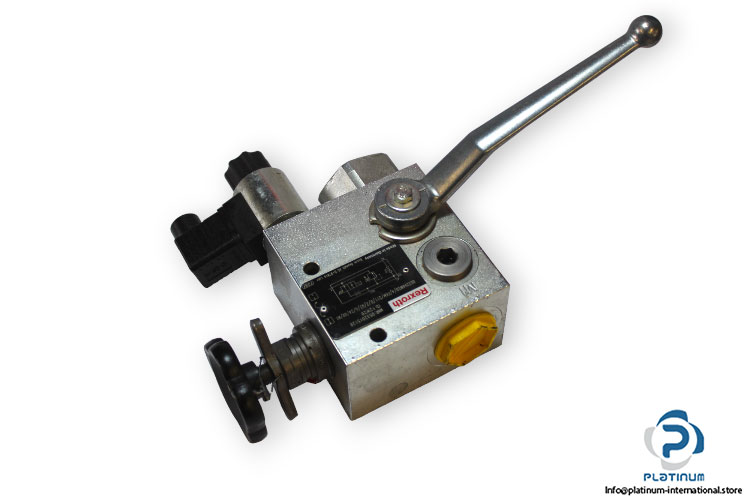

Rexroth 0532015128 Accumulator Safety Block

Manufacturer: REXROTH

Type: Directional Control Valve

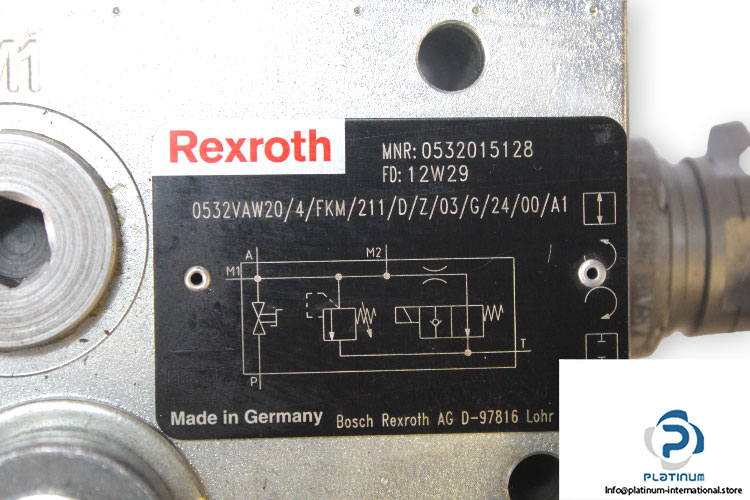

Model: 0532VAW20/4/FKM/211/D/Z/03/G/24/00/A1

MNR: 0532015128

Nominal Diameter: DN20

Ambient Temperature Range: –10 … +80 °C

Pressure Adjustment :211 bar

Maximum Securable Flow: 100 l/min

Hydraulic Fluid Temperature Range: –15 … +80 °C

Viscosity Range: 12….380 mm²/s

Seal Material: FKM

Connection Thread P: Inch

Voltage Type: Direct voltage 24 V / Frequency

Adjustment Type at The Pressure Relief Valve: With Hand Wheel

Unloading: 2/2 Directional Valve, Electrical Operation, Normally Open

Component Series: Component Series A With Standard Version 1

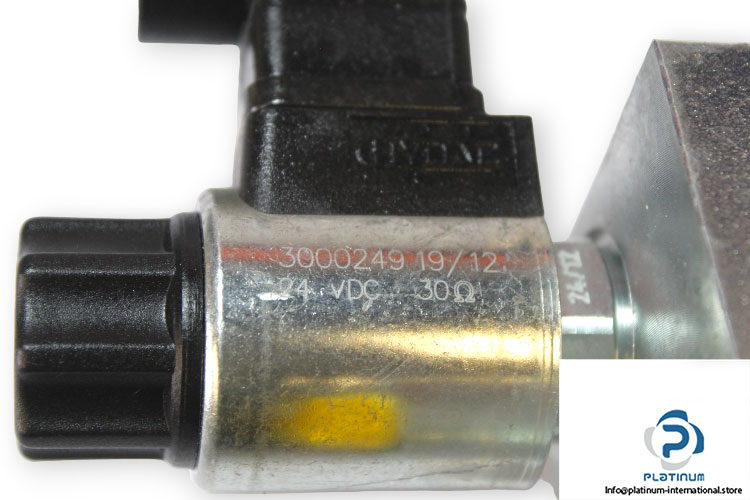

Attachment: Rexroth 3000249 19/12 SOLENOID COIL

Manufacturer: Rexroth

Type: Solenoid Coil

MNR of Coil: 3000249 19/12

Nominal voltage per Coil: 24 VDC
