Rexroth 167-030-200-0 TIE ROD Cylinder
Tie Rod Cylinder

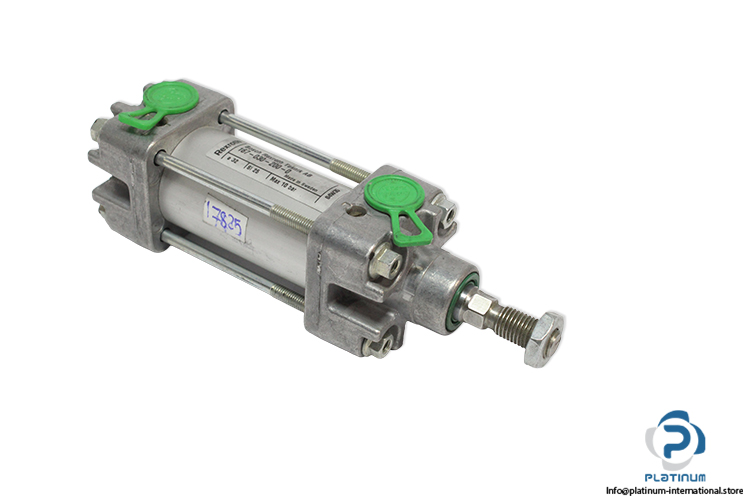

Rexroth / Bosch / Aventics Series 167 pneumatic tie rod cylinder with 32 mm piston diameter, 25 mm stroke, and double-acting operation.Rexroth / Bosch / Aventics Series 167 Tie Rod Cylinder
A compact and robust pneumatic tie rod cylinder designed for reliable linear motion in industrial automation systems. Manufactured under the Rexroth / Bosch / Aventics portfolio, this double-acting cylinder delivers precise positioning, smooth operation, and long service life in demanding pneumatic applications. Manufacturer: Rexroth / Bosch / Aventics
Type: Tie Rod Cylinder
Series: 167

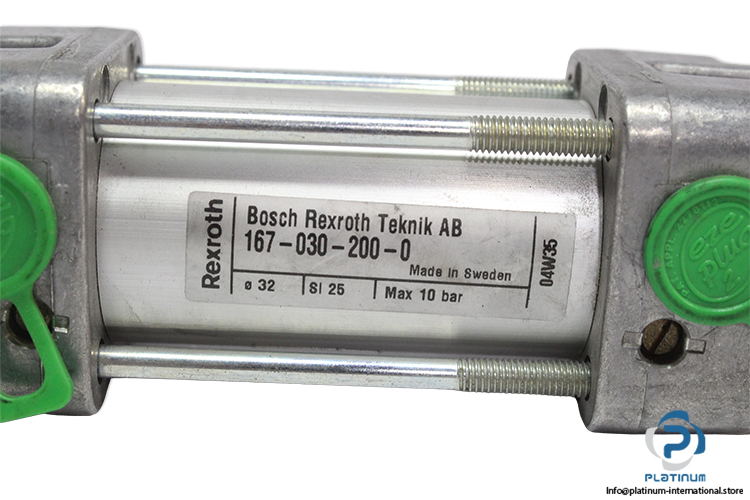

MNR: 167 030 200 0
Code: 04W35
Material Specification
Recommendation:
This tie rod cylinder is ideal for compact pneumatic automation tasks such as clamping, positioning, and linear actuation. For optimal performance and extended service life, it is recommended to use this cylinder with reliable Sensors for position monitoring and clean air supply supported by high-quality Pneumatic Filters available at Platinum International.
| Operating Medium | Compressed Air |
| Mode of Operation | Double Acting |
| Stroke Length | 25 mm |
| Piston Diameter | 32 mm |
| Piston Rod End | Male Thread |
| Rod Thread | M10 × 1.25 |
| Variants | Piston Rod at One End |
| Shape | Square |
| Maximum Operating Pressure | 10 bar |
| Pneumatic Connection | G 1/8 |
| Ambient Temperature | -20 to +75 °C |
| Medium Temperature | -20 to +75 °C |
| Cylinder Tube | Anodized Aluminum |
| Piston Rod | Stainless Steel, Chrome-Plated |
| Front Cover | Aluminum |
| End Cover | Aluminum |
| Seal | Acrylonitrile Butadiene Rubber (NBR) |
