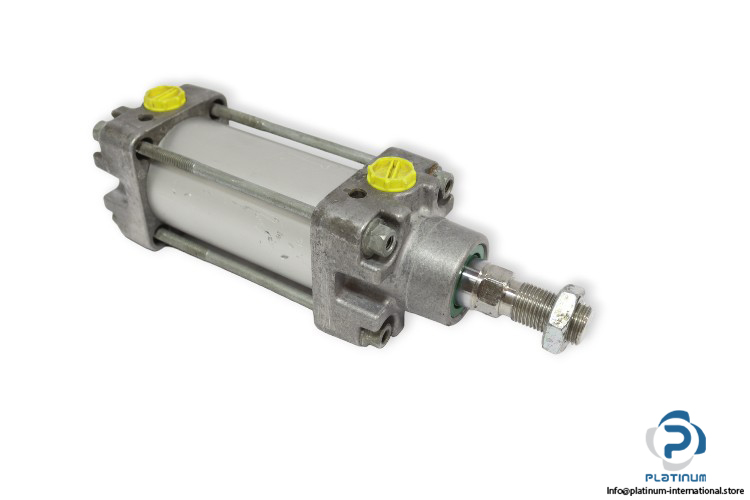

A high-quality pneumatic tie rod cylinder from the Rexroth / Bosch / Aventics 167 series, engineered for reliable linear motion in industrial automation applications. This double-acting cylinder features a robust aluminum construction, precision-machined components, and a chrome-plated stainless steel piston rod for smooth operation and long service life. Manufacturer: Rexroth / Bosch / Aventics

Type: Tie Rod Cylinder

Series: 167

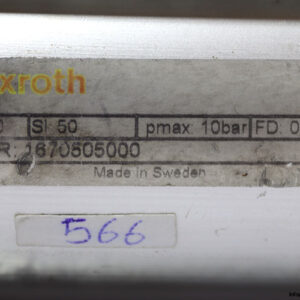

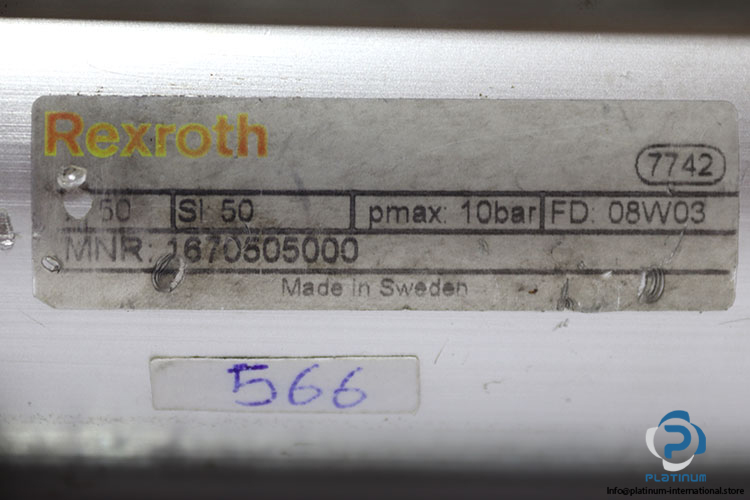

MNR: 1670505000

Code: 08W03 / 7742

Material Specifications

Recommendation:

This tie rod cylinder is ideal for machinery, automation lines, and pneumatic handling systems requiring precise and durable linear motion. For optimal performance and system integration, it is recommended to combine this cylinder with high-quality Sensors for position feedback and compatible pneumatic control components from Platinum International to ensure reliable operation and extended service life.

Operating Medium	Compressed Air
Mode of Operation	Double Acting
Stroke Length	50 mm
Piston Diameter	50 mm
Piston Rod Diameter	20 mm
Piston Rod End	Male Thread
Variants	Piston Rod at One End
Shape	Square
Frame Dimensions	175 Ã— 63 mm
Maximum Operating Pressure	10 bar
Pneumatic Connection	G 1/4
Ambient Temperature	-20 to +75 °C
Medium Temperature	-20 to +75 °C
Cylinder Tube	Aluminum, Anodized
Piston Rod	Stainless Steel, Chrome-Plated
Front Cover	Aluminum
End Cover	Aluminum
Seal	Acrylonitrile Butadiene Rubber (NBR)
