Rexroth 1670505000 TIE ROD Cylinder

In stock1 unitReady to ship

Tie Rod Cylinder

Rexroth / Bosch / Aventics pneumatic tie rod cylinder with 50 mm stroke, 50 mm bore, double-acting operation, and durable aluminum construction.

Manufacturer
REXROTH
SKU
1089366
Condition
New
Used In stock
This product is also available used
View Used Version →
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

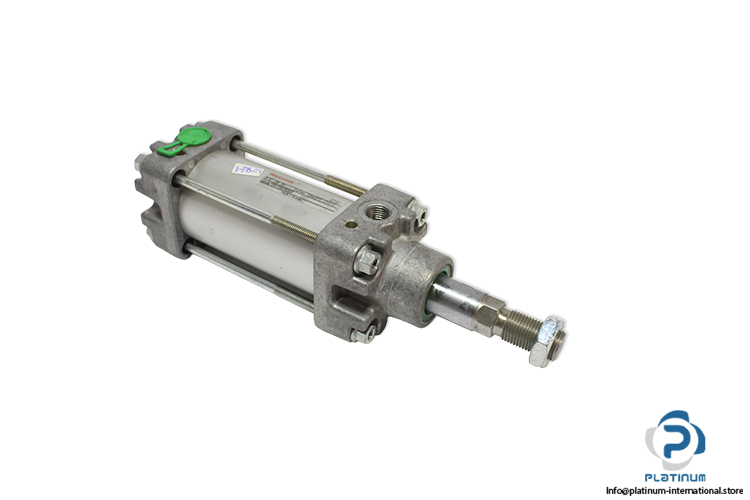

Rexroth / Bosch / Aventics Series 167 Tie Rod Cylinder

A robust and precision-engineered pneumatic tie rod cylinder designed for reliable linear motion in industrial automation systems. Manufactured under the Rexroth / Bosch / Aventics portfolio, this cylinder delivers stable double-acting operation, high durability, and consistent performance in demanding applications. Manufacturer: Rexroth / Bosch / Aventics

Type: Tie Rod Cylinder

Series: 167

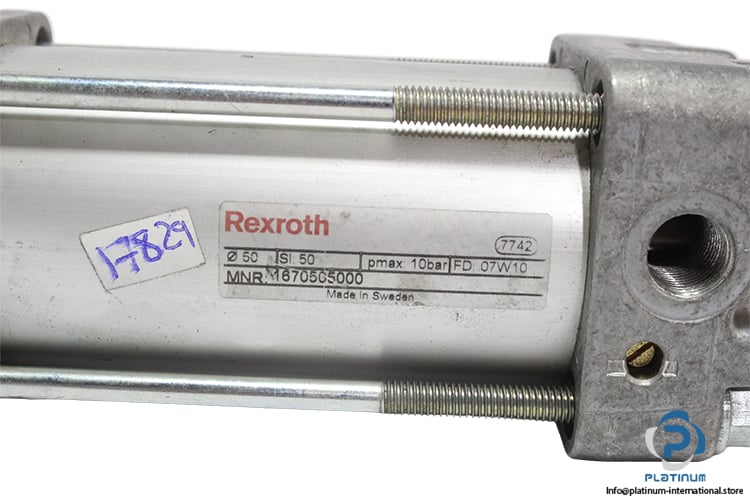

MNR: 1670505000

Code: 07W10 / 7742

Material Specifications

Recommendation:

This tie rod cylinder is ideal for automation, machinery, and handling applications requiring precise linear motion and long service life. For optimal system integration and performance, it is recommended to combine this cylinder with reliable Sensors for position feedback and compatible pneumatic components available at Platinum International to build complete and efficient automation solutions.

Operating MediumCompressed Air
Mode of OperationDouble Acting
Stroke Length50 mm
Piston Diameter50 mm
Rod Diameter20 mm
Piston Rod EndMale Thread
VariantsPiston Rod at One End
ShapeSquare
Frame Dimensions175 × 63 mm
Maximum Operating Pressure10 bar
Pneumatic ConnectionG 1/4
Ambient Temperature-20 to +75 °C
Medium Temperature-20 to +75 °C
Cylinder TubeAnodized Aluminum
Piston RodStainless Steel, Chrome-Plated
Front CoverAluminum
End CoverAluminum
Seal MaterialAcrylonitrile Butadiene Rubber (NBR)
