Rexroth 3 WE 6 A52/OBG24Z4/B12 Directional Control Valve
Used
In stock1 unitReady to ship
Directional Control Valve
The Rexroth 3 WE 6 A52/OBG24Z4/B12 Directional Control Valve features a 350 bar maximum pressure, 80 l/min flow rate, and is paired with a Hydronorma GH44-4-A 207 solenoid coil for precise fluid control in hydraulic applications.3350680A52/OBG24Z4/B12ActuatedbarcoilControlDirectionalElectricallyflowFluidhigh-pressureHydraulichydronormal/minPressureRateRexrothsolenoidValveWE
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Rexroth 3 WE 6 A52/OBG24Z4/B12 Directional Control Valve
The Rexroth 3 WE 6 A52/OBG24Z4/B12 Directional Control Valve is designed to provide efficient fluid flow control with electrically-actuated operation. This valve ensures precise control in hydraulic systems, featuring high maximum flow rates and operating pressure capabilities, suitable for demanding applications.
Manufacturer: Rexroth
Type: DIRECTIONAL CONTROL VALVE

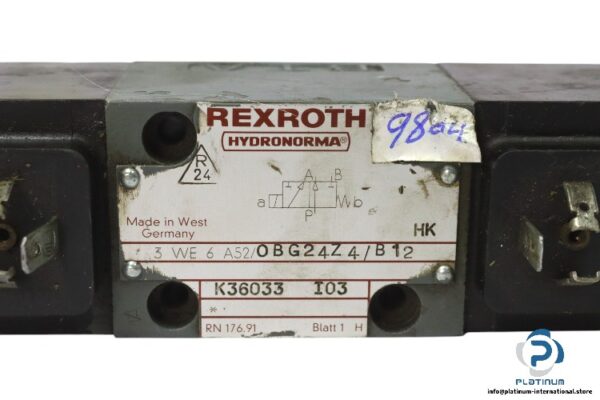

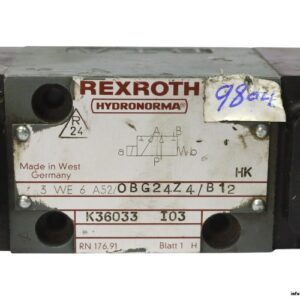

Model: 3 WE 6 A52/OBG24Z4/B12
Reference No.: K36033 I03
This Rexroth directional control valve, paired with the Hydronorma GH44-4-A 207 solenoid coil, ensures precise hydraulic operation, providing long-lasting and high-performance fluid control in demanding industrial systems.
| Size | 6 |
| Number of Ports | 3 main ports |
| Type of Actuation | Electrically actuated |
| Design | O, Without spring return |
| Throttle Diameter | Ø 1.2 mm |
| Ambient Temperature Range | -30 to +50 °C |
| Maximum Operating Pressure at Ports A, B, P | 350 bar |
| Maximum Operating Pressure at Port T | 210 bar |
| Maximum Flow Rate | 80 l/min |
| Hydraulic Fluid Temperature Range | -30 to +80 °C |
| Viscosity Range | 2.8 to 500 mm²/s |

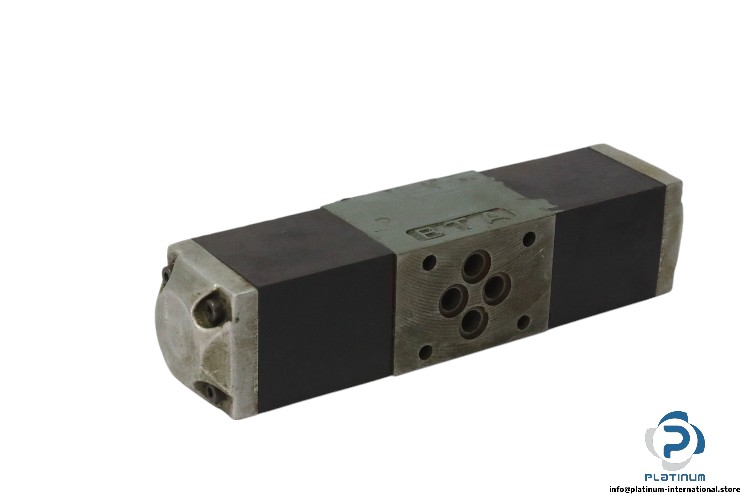

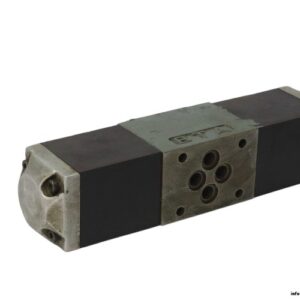

| Connection | Sup-plate |
| Attachment | HYDRONORMA GH44-4-A 207 SOLENOID COIL |
| Attachment Manufacturer | Hydronorma |
| Attachment Type | Solenoid Coil |
| Attachment Model | GH44-4-A 207 |
| Voltage | 24 V DC |
| Power | 300 W |
