Rexroth 4 WE 10 D 4.1/G.24 N 315 Directional Control Valve

Name: REXROTH 4 WE 10 D 4.1/G.24 N 315 DIRECTIONAL CONTROL VALVE
SKU: 1085887
Availability: LimitedAvailability

rexroth-4-WE-10-D-4.1_G.24-N-315-directional-control-valve-used

rexroth-4-WE-10-D-4.1_G.24-N-315-directional-control-valve-used-1

rexroth-4-WE-10-D-4.1_G.24-N-315-directional-control-valve-used-2

rexroth-4-WE-10-D-4.1_G.24-N-315-directional-control-valve-used-3

Used

In stock1 unitReady to ship

DIRECTIONAL CONTROL VALVE

Electrically actuated Rexroth Hydronorma 4 WE 10 D valve with 315 bar pressure, 120 l/min flow rate, and 4-port design. Includes 24V DC Hydronorma coil.

Manufacturer

REXROTH

SKU

1085887

Category

Directional Control Valves

Condition

Used

029 10 120 24v 315 4 4.1/G.24 Actuated bar coil Control D dc Directional Electrically flow GL-62-0-A Hydraulic hydronorma Industrial l/min N Port Rexroth Size Valve WE

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

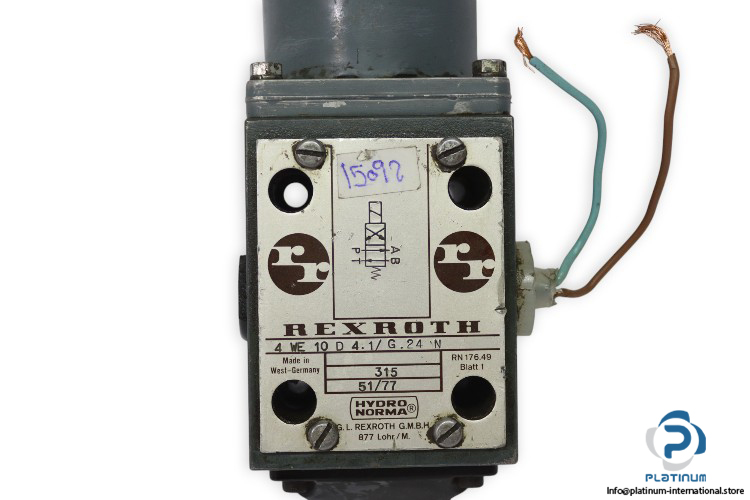

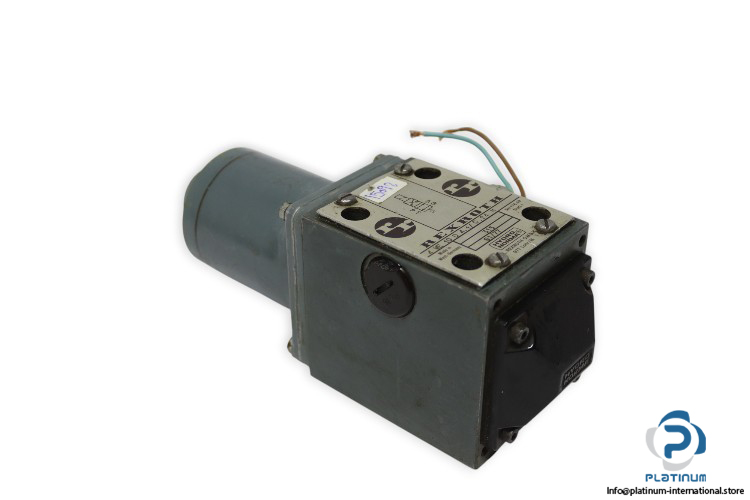

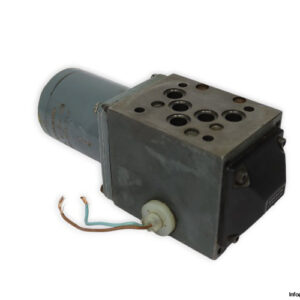

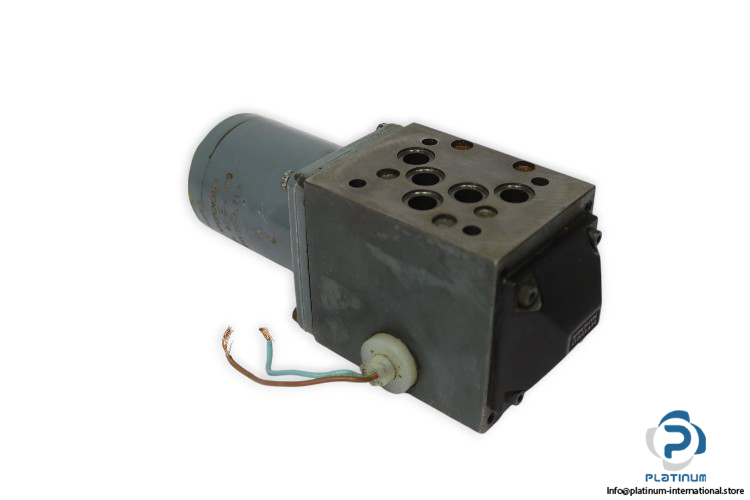

REXROTH HYDRONORMA 4 WE 10 D 4.1/G.24 N 315 DIRECTIONAL CONTROL VALVE

The Rexroth Hydronorma 4 WE 10 D 4.1/G.24 N 315 is a high-performance electrically actuated directional control valve designed for precise hydraulic flow control in demanding industrial environments. It offers excellent pressure capacity and flow rates, paired with durable coil performance.

Manufacturer: Rexroth Hydronorma

Type: Directional Control Valve

Model: 4 WE 10 D 4.1/G.24 N 315

Code: RN 176.49, 51/77

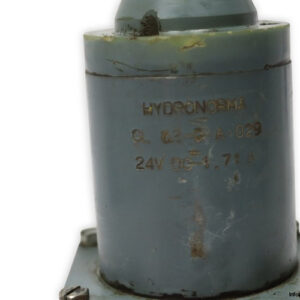

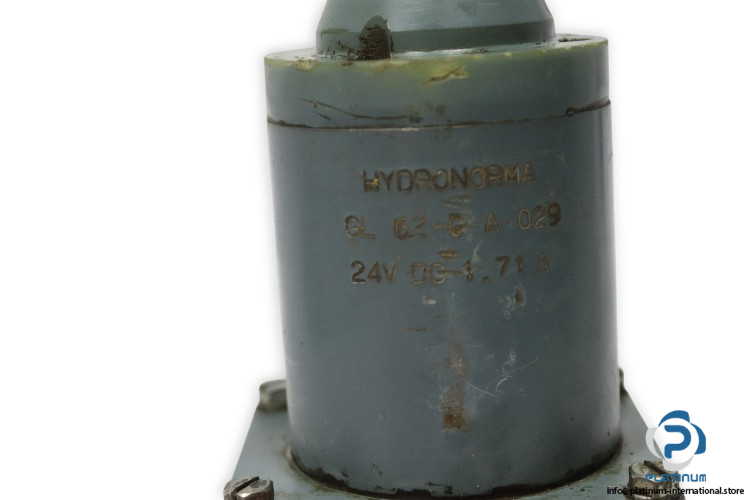

Attachment - Solenoid Coil

No of Ports	4
Size	10
Type of Actuation	Electrically
Ambient Temperature Range	-30 to +50 °C
Max Operating Pressure (Ports A, B, P)	315 bar
Max Operating Pressure (Port T)	210 bar
Max Flow Rate	120 l/min
Hydraulic Fluid Temperature Range	-30 to +80 °C
Viscosity Range	2.8 to 500 mm²/s
Voltage	24 V DC
Current	1.71 A
